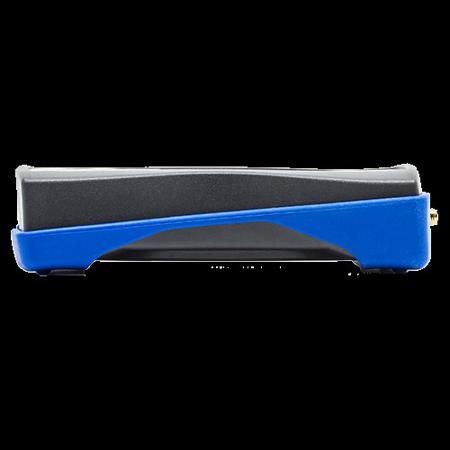

SNYPER-LTE+ (USA) V2 The SNYPER-LTE+ (USA) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE & 3G/UMTS North American networks. The SNYPER-LTE+ (USA) does not require a SIM in order to provide network survey results. Features & Benefits Enhanced cellular surveying of new and existing installations on 4G and 3G networks
Establish most suitable operator for application
Evaluate your “preferred” MNO’s performance
Determine optimum antenna placement
Results are reported in CSV & graphical HTML format
SIM free operation on all bands and technologies
Complete network breakdown and summary results Additional Features It incorporates a number of important features and can perform three types of survey: 4G/LTE only, 3G/UMTS only and a combined 4G/LTE & 3G/UMTS survey. The combined 4G/LTE & 3G/UMTS survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks. Physical Interfaces 1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad The full breakdown for the HTML summary graphs are displayed in corresponding CSV files. The SNYPER-LTE Graphyte (USA) also incorporates Siretta’s leading live SCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording. Supplied Accessories 1 x General Purpose Omni-Directional Antenna
1 x 0.5m USB Mini Cable
1 x Multi-Region Power Supply UK / EU / US / AU Certifications CE
FCC
RoHS
