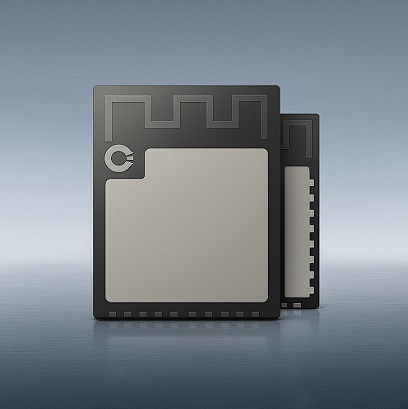

BLEMDL-1 is a BLE data transmission module, based on a BLE 5.2 SoC chip (ARM Cortex-M33 32-bit processor, up to 76.8MHz working frequency), embedded with a 2.4GHz transceiver, equipped with an on-board PCB antenna. The module communicates with an external MCU to quickly set up wireless connection and data transmission between BLE slave devices and BLE master devices (such as mobile phones and tablets). The external MCU has a low resource occupation and the development process is very easy.
Bluetooth Low Energy BLE 5.2 Module ARM Cortex M33 2.4GHz
£ 27.55
Checking for live stock
Product Type:
BLE Module
PHY:
1M/2M/125K/500K
Sensitivity:
-98.9dBm
Current-RX:
3.6mA
VDD:
1.71-3.8V
RAM:
32KB
Interface:
UART
Technology:
5.2
Output:
6dBm
Current-TX:
4.1mA@0dBm
Sleeping Current:
1.4uA
Flash:
512KB
