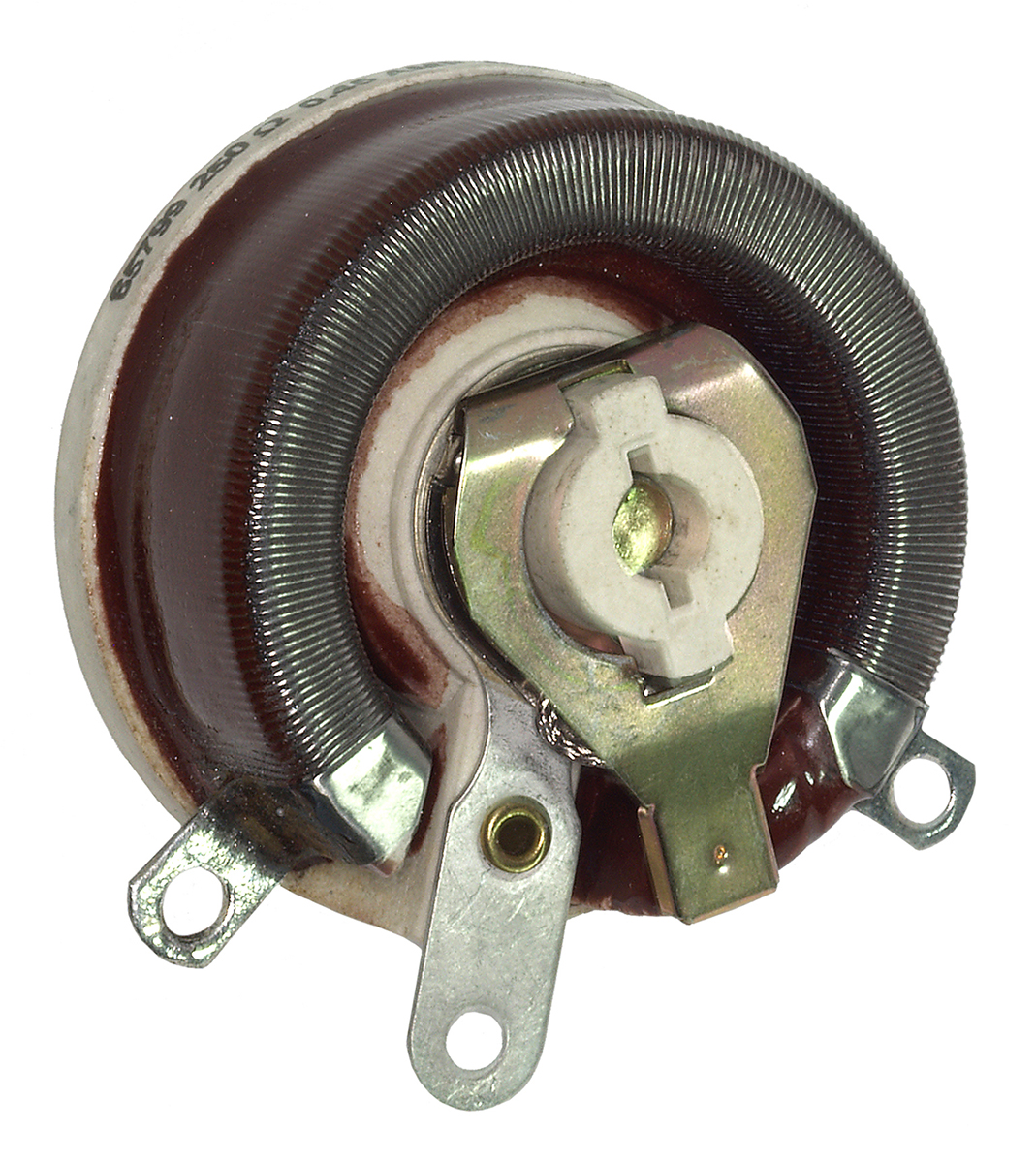

rjs5k0e Ohmite 50W 5kΩ Rheostat 0.100A, RJS5K0E
rjs5k0e Ohmite 50W 5kΩ Rheostat 0.100A, RJS5K0E
rjs5k0e Ohmite 50W 5kΩ Rheostat 0.100A, RJS5K0E
RJ Series 50W Rheostats (Potentiometers) Wirewound From Ohmite, the RJ series of rheostats has been designed and manufactured to retain high reliability and smooth operation over long periods of use. These rheostats are constructed from a ceramic body with resistance alloy winding and a vitreous enamel coating (or silicone ceramic coating depending on model). RJ rheostats have a metal spring contact arm, metal graphite composition and feature solder coated terminals. Product Applications: Suitable applications include motor speed controls, equipment requiring variable resistance settings and dimmer switches.
Ohmite

50W 5kΩ Rheostat 0.100A, RJS5K0E

Manufacturer:
Ohmite
Manufacturer Part No:
RJS5K0E
Enrgtech Part No:
ET11767191
Warranty:
Manufacturer
£ 80.74

Checking for live stock

Maximum Resistance:

5kΩ

Tolerance:

±10%

Power Rating:

50W

Number of Turns:

1

Mounting Type:

Panel Mount

Shaft Diameter:

6.35 mm

Termination Style:

Solder Lug

Dimensions:

58.67 x 34.93mm

Maximum Voltage Rating:

750 Vrms

Length:

34.93mm

Current Rating:

0.100A

Electrical Taper:

Linear
