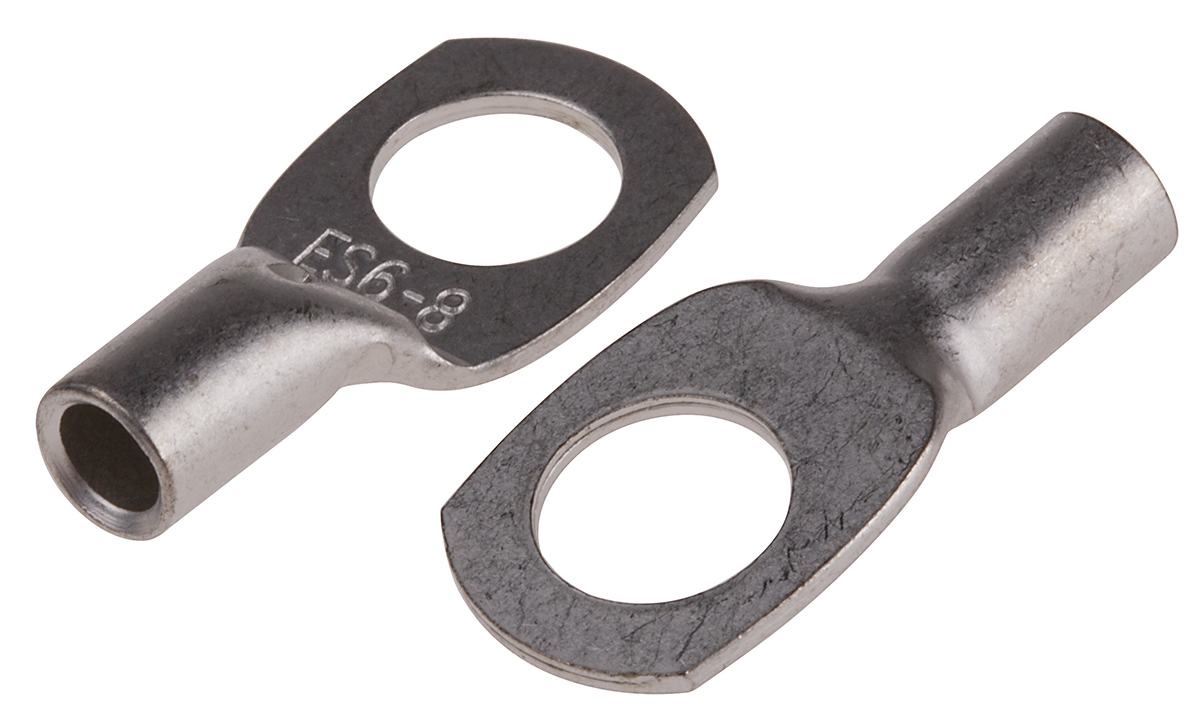

841-7608 RS Pro , Uninsulated Tin Plated Tubular Ring Terminal, 8mm Stud Size, 6mm² to 6mm²

RS Pro Tubular Ring Terminals RS Pro range of heavy duty tubular ring terminals made from copper with a tin plating. These heavy duty tubular ring terminals are ideal for use on multi-stranded cables. Versions of these ring terminals are available with a flared or a chamfered entry for ease of wire insertion.

RS Pro , Uninsulated Tin Plated Tubular Ring Terminal, 8mm Stud Size, 6mm² to 6mm²

Manufacturer:
Manufacturer Part No:
841-7608
Enrgtech Part No:
ET14147803
Warranty:
Manufacturer
£ 0.09
Checking for live stock
Shrouded/Unshrouded:
Unshrouded
Maximum Wire Size mm²:
6mm²
Colour:
Natural
Minimum Wire Size AWG:
12AWG
Thickness:
0.95mm
Stud Size:
8mm
Outer Ring Diameter:
5.9mm
Inner Ring Diameter:
4mm
Insulation Material:
Copper
Contact Plating:
Tin
Overall Length:
27.3mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
10AWG
Minimum Wire Size mm²:
4mm²
Maximum Operating Temperature:
+120°C
Minimum Operating Temperature:
-30°C
Contact Material:
Copper
pdf icon
RS PRO Datasheet(Technical Reference)
