Domed Head POP® Rivets Aluminium POP® Rivets Standard open type domed head rivet, for general purpose use Aluminium alloy (3·5% magnesium) body, carbon steel mandrel Steel POP® Rivets Standard open type domed head steel rivet Increased strength and temperature resistance Carbon steel body and mandrel Premium Quality Steel POP® Rivets Mandrel head retention Excellent hole fill capabilities Large blind side bearing area High shear and tensile values to standard steel products Carbon steel body and mandrel Stainless Steel POP® Rivets Standard open type domed head stainles steel rivet Increased strength and temperature resistance Good corrosion resistance Stainless steel body and mandrel Description Rivet Size (mm) Grip Range (mm) Flange Dia. (mm) Stock no. Aluminium 3.2 3.2-4.8 6.65 351-3212 Aluminium 3.2 6.4-7.9 6.65 351-3228 Aluminium 4.0 4.8-6.4 8.22 351-3234 Aluminium 4.0 7.9-9.5 8.22 351-3240 Aluminium 4.8 4.8-6.4 9.80 351-3256 Aluminium 4.8 9.5-11.1 9.80 351-3262 Steel 3.2 3.2-4.8 6.65 351-3335 Steel 4.0 3.2-4.8 8.12 351-3341 Steel 4.8 3.2-4.8 9.80 351-3357 Steel 4.8 4.8-6.4 9.82 351-3379 Stainless Steel 3.2 1.6-4.8 6.65 351-3385 Stainless Steel 3.2 3.2-4.8 6.65 351-3391 Stainless Steel 4.0 3.2-6.4 8.33 351-3408 Stainless Steel 4.8 1.6-3.2 9.98 351-3414 Stainless Steel 4.8 3.2-6.4 9.98 351-3436 Stainless Steel 4.8 6.4-9.5 9.98 351-3442

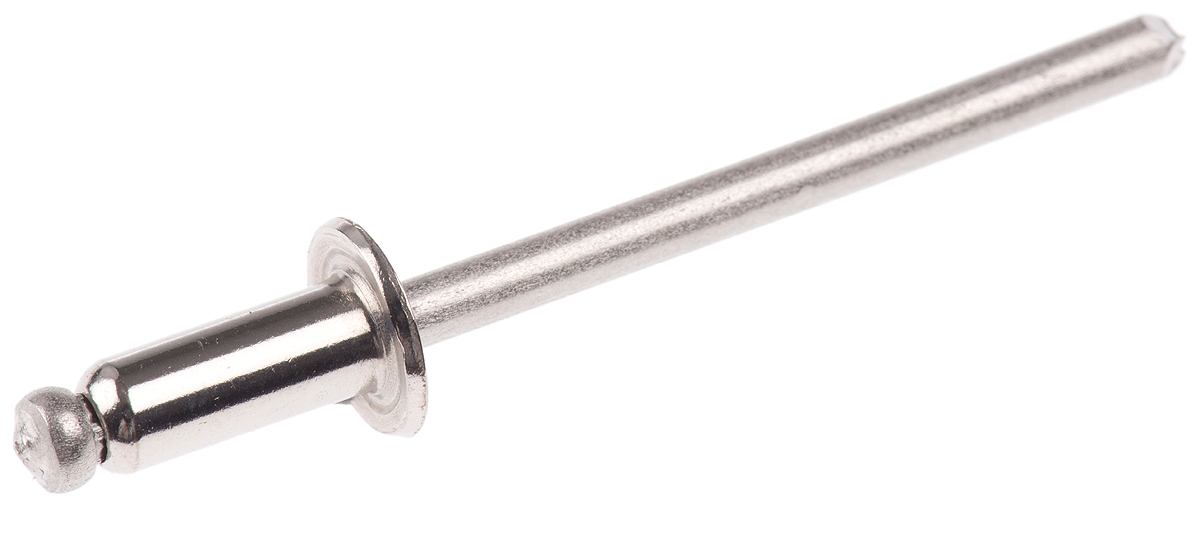

POP 10.2mm Plain Stainless Steel Blind Rivet, 4mm diameter, 3.2 → 6.4 mm Thickness

Manufacturer:
Manufacturer Part No:
SSD54SSBS
Enrgtech Part No:
ET13966748
Warranty:
Manufacturer
£ 14.98
Checking for live stock
Rivet Length:
10.2mm
Finish:
Plain
Mandrel Material:
Stainless Steel
Thickness of Material Minimum:
3.2mm
Colour:
Silver
Grip Range Minimum:
3.2mm
Fixing Hole Diameter:
4.2mm
Rivet Body Material:
Stainless Steel
Thickness of Material Maximum:
6.4mm
Rivet Type:
Blind
Grip Range Maximum:
6.4mm
Rivet Diameter:
4mm
pdf icon
Datasheet(Technical Reference)
pdf icon
Fasteners Selection Guide 56 Pages(Technical Reference)
