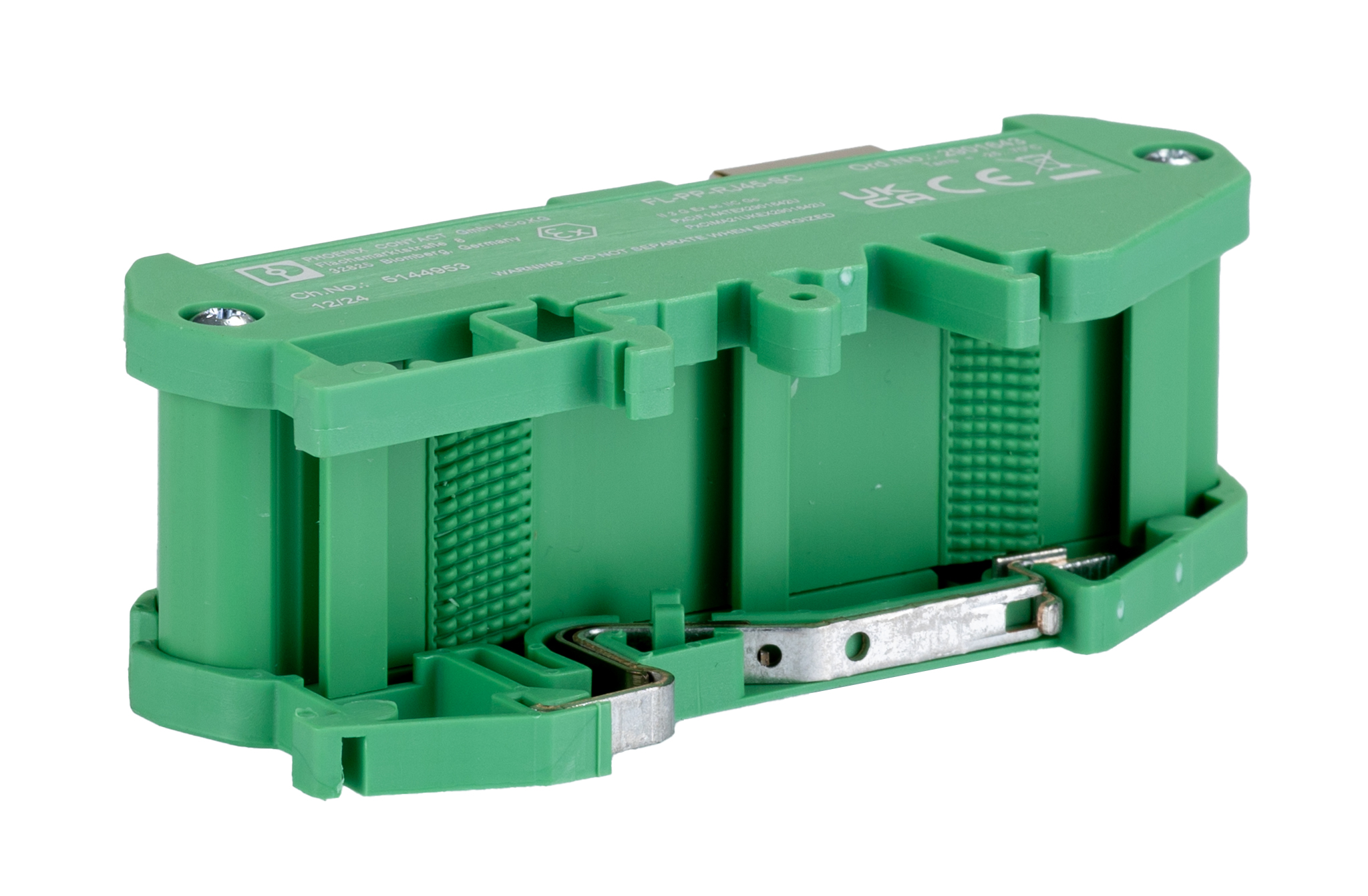

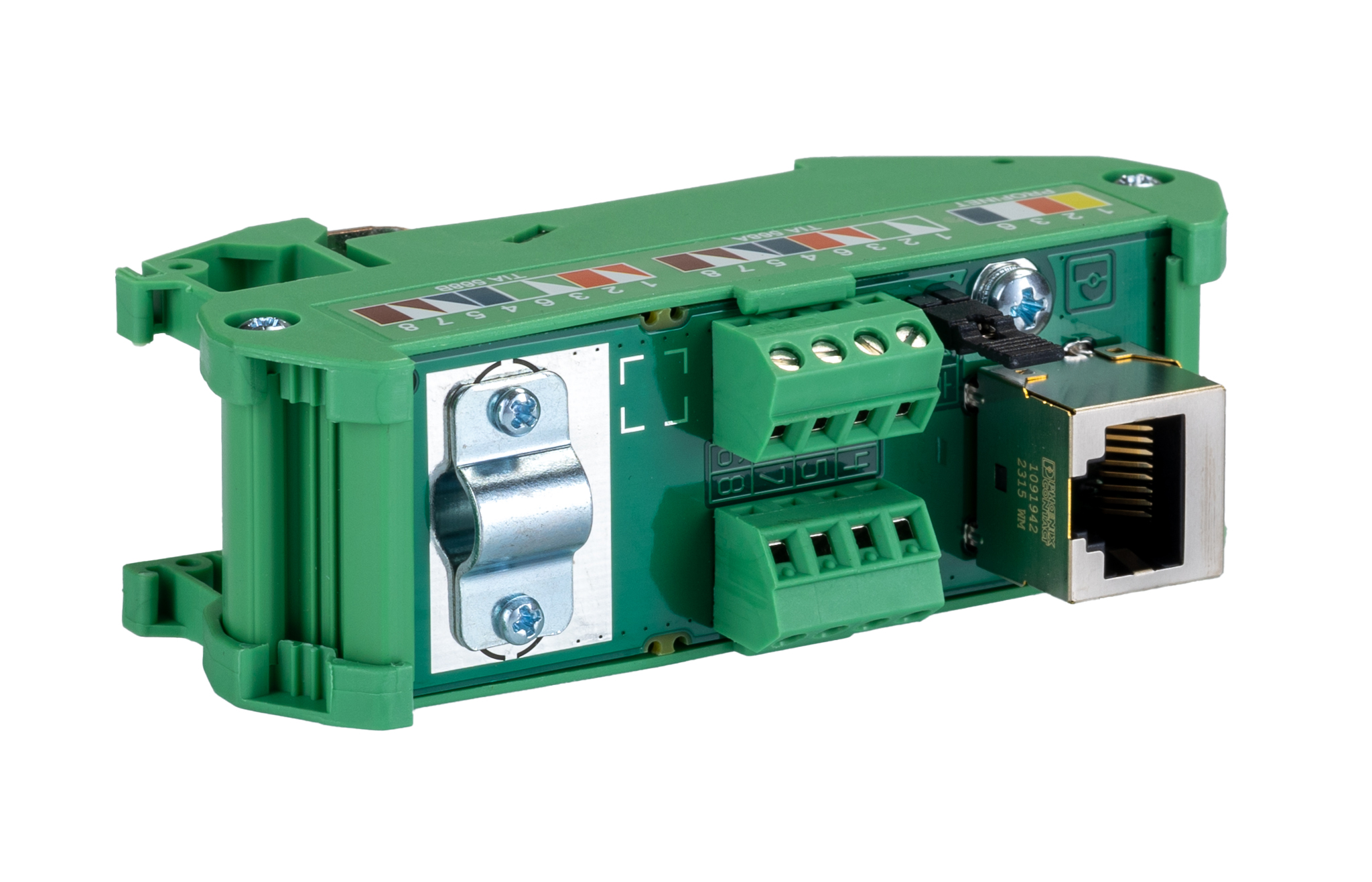

Phoenix Contact Patch Panel, 1:1 Pin Assignment, 100m Transmission Length - FL-PP-RJ45-SC - 2901643 Need a middleman between communication tools and your field devices? Count on this patch panel from Phoenix Contact. It lets you link one RJ45 jack to up to eight terminal blocks, reducing the wiring needs of your setup. The unit supports data transmission up to 100m, making it the right choice for long-distance communication. Thanks to PVC/PA housing, it holds its own against wear and impact, so it's fit for use in harsh environments.
This piece of kit handles up to 2500 insertion and withdrawal cycles, meaning you can count on it for long-lasting performance in setups that need to be regularly rejigged. It clips directly onto your DIN rail without the need for assembly tools and compact dimensions of 90 (H) x 29 (W) x 53mm (D) mean it's a space-efficient choice for busy setups. It's Cat5e compatible, giving you quick transmission rates up to 1Gbps, which is why you'll often find units like this used in data banks. Features & Benefits • IP20 rating shows that it's finger-safe as it's protected from objects larger than 12.5mm in size
• ATEX certified for use in potentially explosive work areas
• Operating temperature range from -25°C to +70°C for safe industrial use
