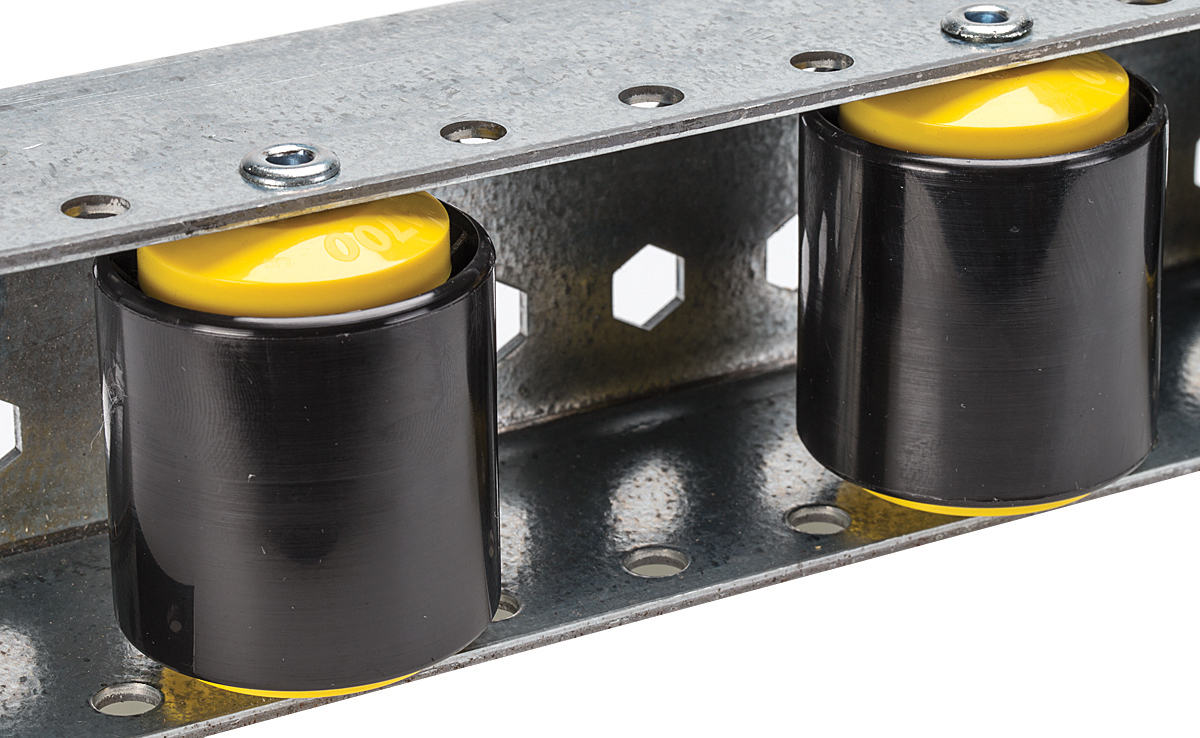

Interroll Heavy Duty Roller Track The Interroll heavy-duty, 9-wheel roller track is constructed from galvanised steel, incorporating 50mm diameter dual ball race rollers pitched at 104mm. This roller track can carry a maximum load of 40kg per roller.
Note:

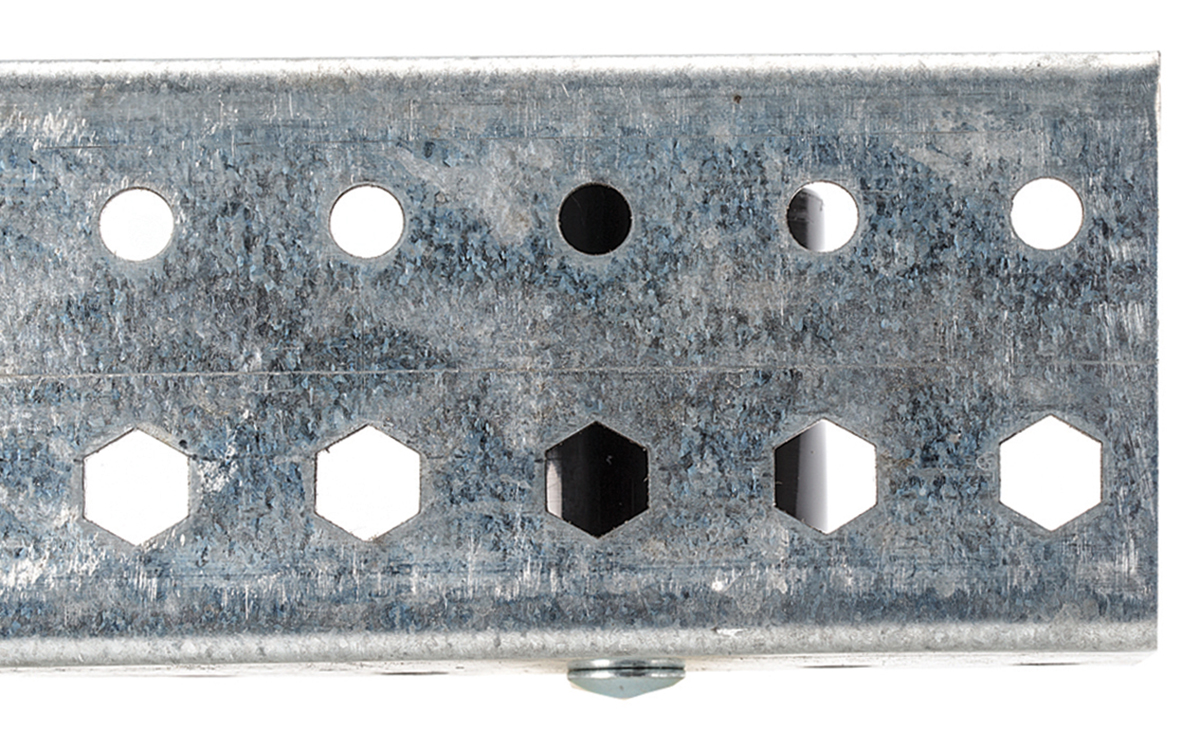

The overall height of the roller track includes the rollers. Ø8.1mm round fixing holes for floor mounting, or 11.5mm A/F hexagonal fixing holes for side-mounting, spaced 26mm apart (centre-to-centre). Features and Benefits Overall track length is 962mm
Overall track width is 74mm
Roller width is 51.3mm
Different pitches are possible Applications Healthcare
Restrooms
Day care centres
Public transports
Restaurants
Educational institutes
