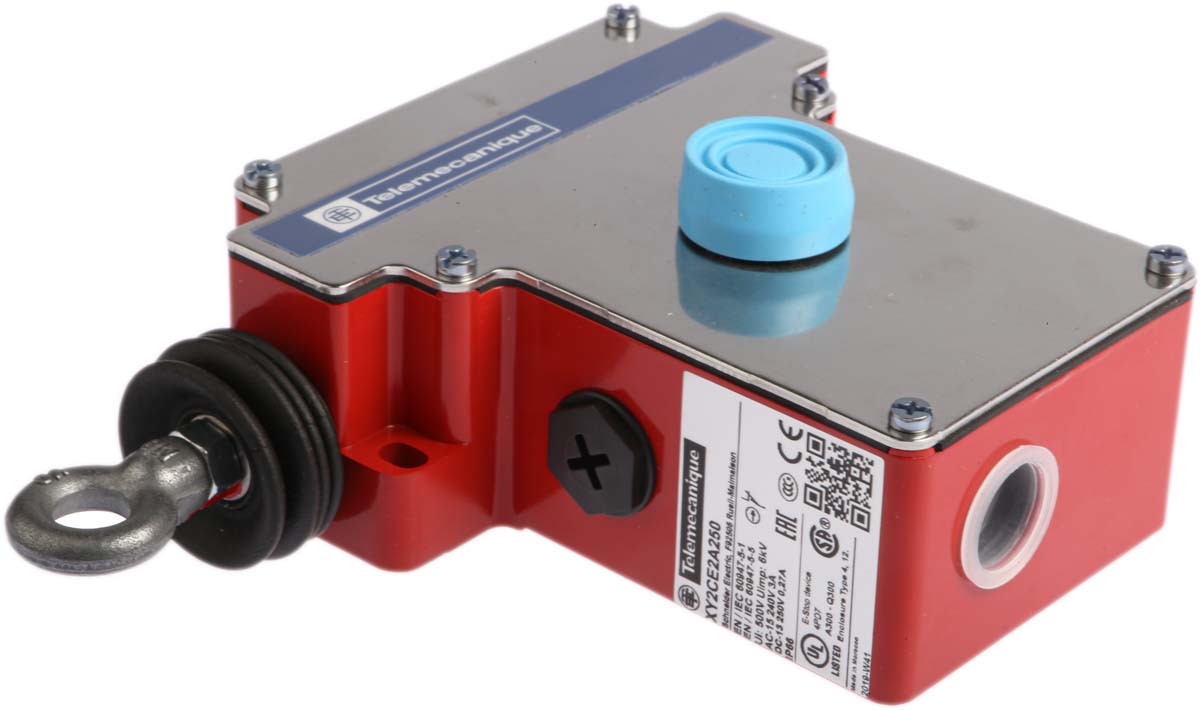

Telemecanique Sensors Emergency Stop Rope Pull Switch The Telemecanique Sensors XY2CJ series emergency stop rope pull switch has a 1NO/1NC contact configuration. It has Zamak housing and maximum AC/DC voltage is 240VAC and 250VDC and the current rating of the switch is 3A and 270mA for AC and DC respectively. It is designed to prevent injury to people or damage to machinery when a normal emergency stop function is not available. This product is easy to install and offers a quick visual check of the switch status for machine restart. This switch has a rope span of 50m and the mounting orientation is to the left side.

Note:
Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version. Features and Benefits Switches incorporate positive opening operation contacts with the tripping of the switch being made with positive action
Switch latches in the tripped position (N/C safety contact(s) open)
Function of the N/O contact is purely for signalling
Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch
Recommended distance between cable supports is 50m
Comes with a pilot light (direct supply)
Size of cable entry is PG13.5 Certifications EN/ISO 13850:2006
IP65 rated
