PCB Switch Kit
A rotary switch mechanism with adjustable stop which will take up to a maximum of five extra wafers from the variety available
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make

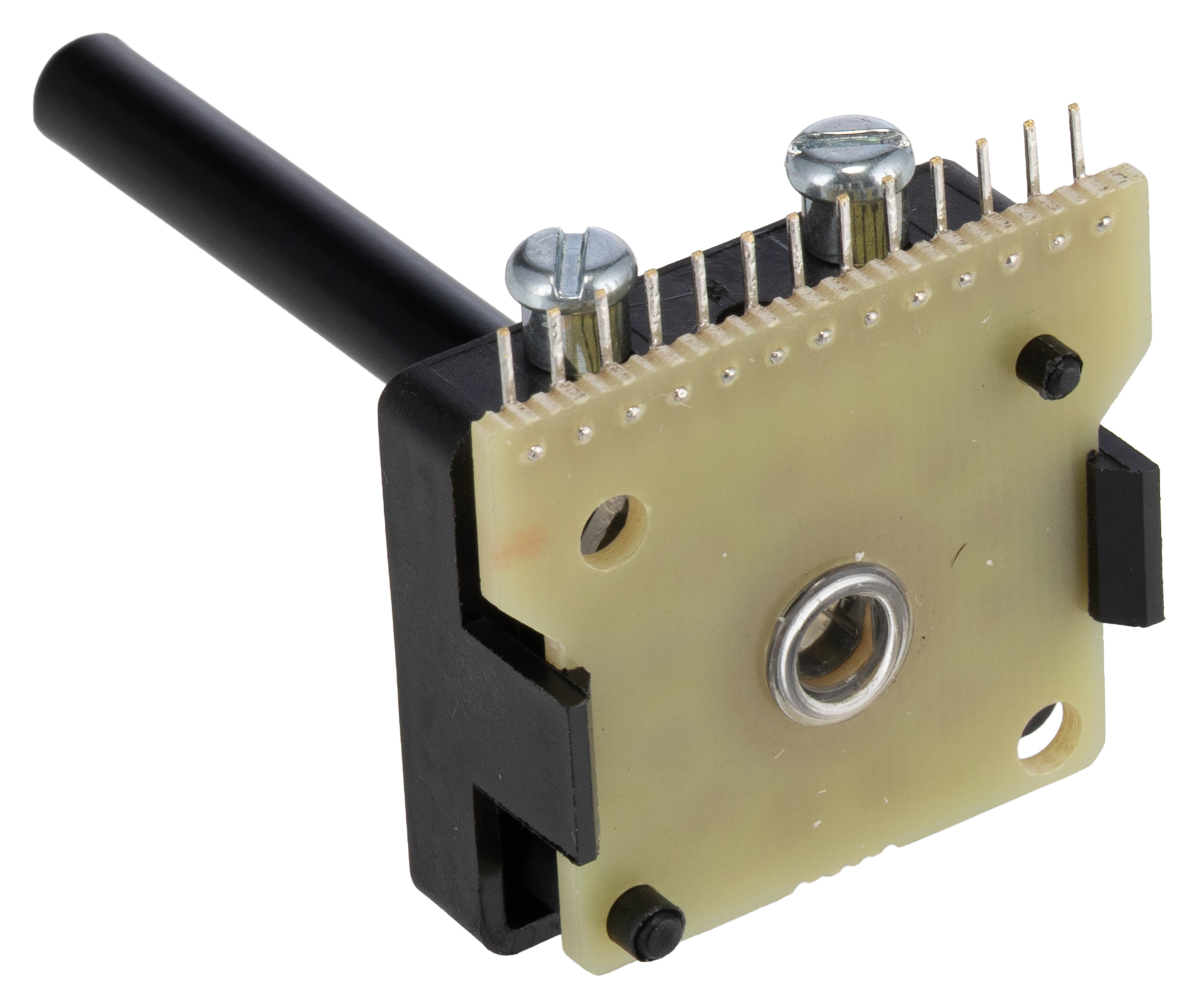

, 12 Position SP12T Rotary Switch, 500 mA @ 250 V, Through Hole
Manufacturer:
Lorlin
Manufacturer Part No:
PT6594
Enrgtech Part No:
ET14100359
Warranty:
Manufacturer
£ 15.76
Checking for live stock
Contact Configuration:
SP12T
Contact Current Rating:
500 mA @ 250 V
Number of Switch Positions:
12
Number of Contacts:
1
Voltage Rating:
250 V ac, 250V dc
Mounting Type:
PCB
Terminal Type:
Through Hole
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Plated Phosphor Bronze
