Midget Wafer Switch - CK Series Imperial
A selection of Lorlin CK rotary switches with various switch configurations.
Contacts rated 150mA @ 250Vac/dc
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread

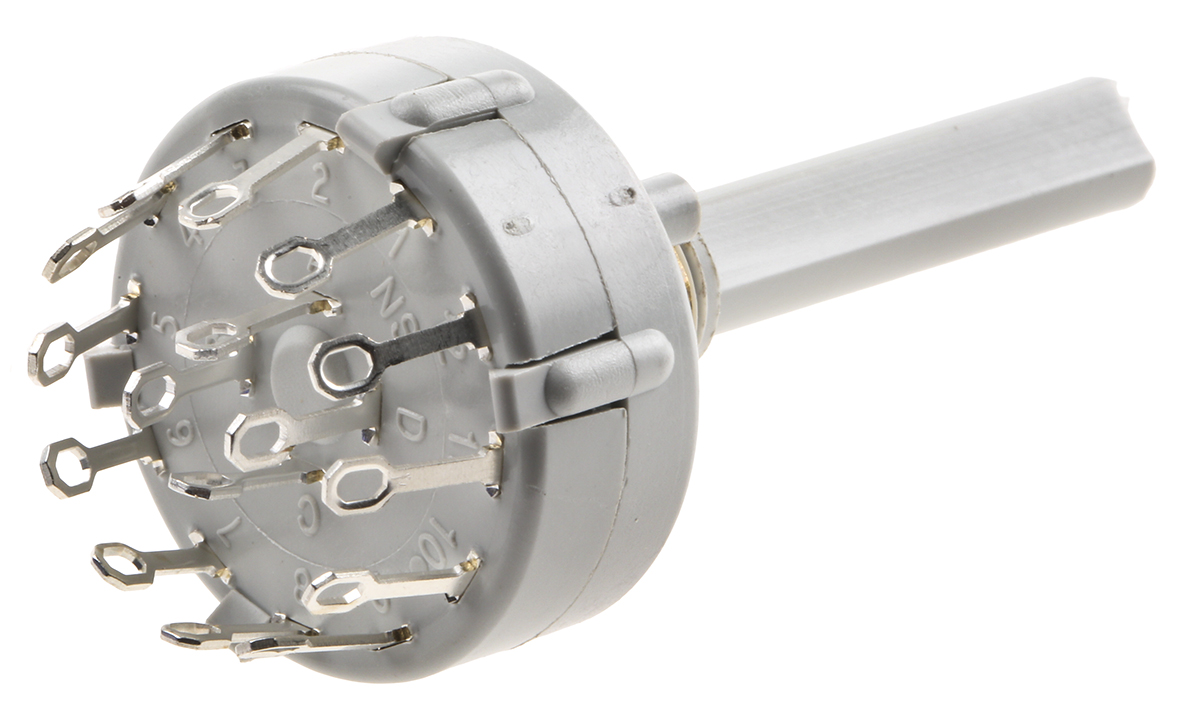

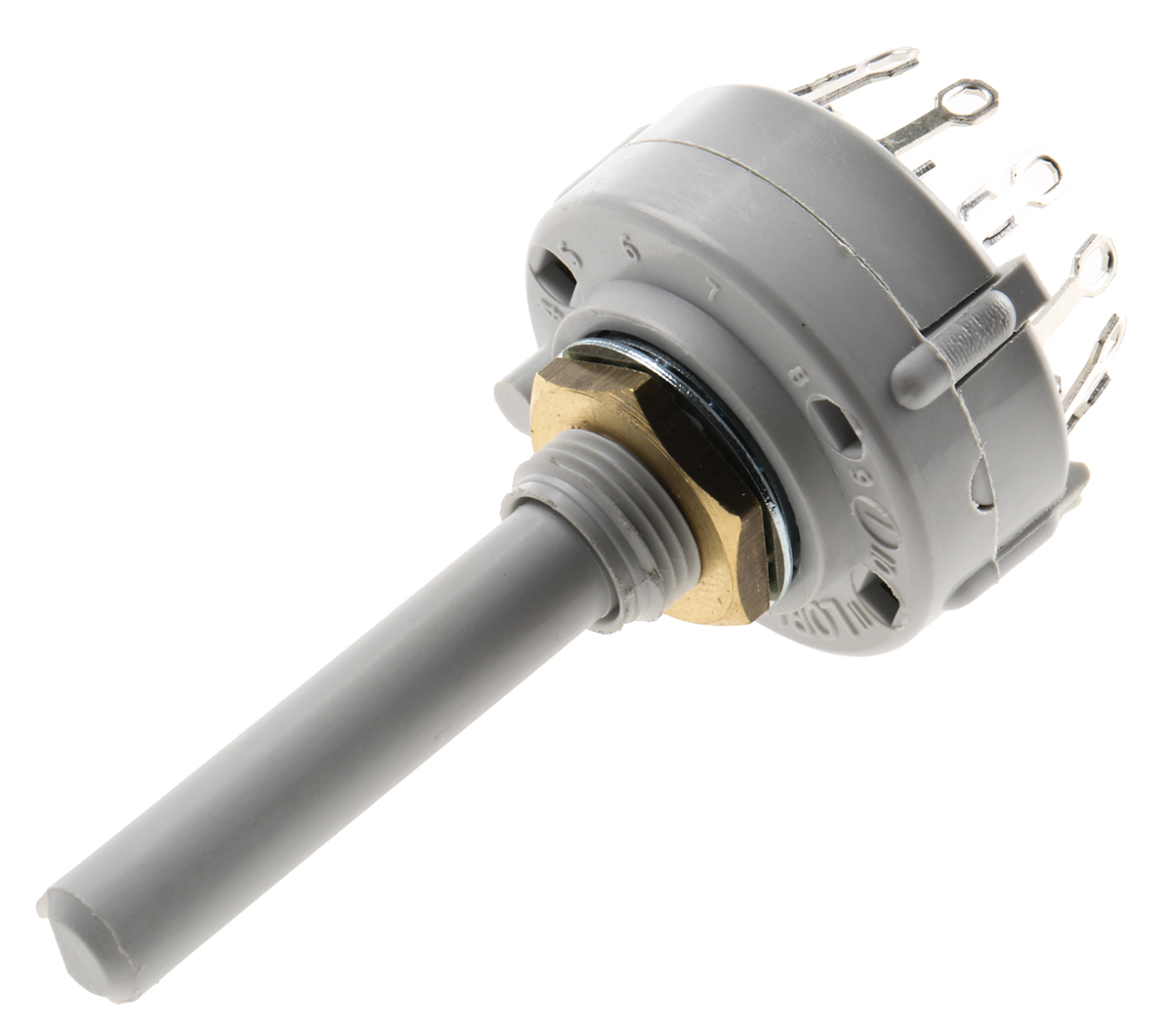

, 3 Position 4PST Rotary Switch, 150 mA@ 250 V ac, Solder Tab
Manufacturer:
Lorlin
Manufacturer Part No:
CK1027
Enrgtech Part No:
ET16753071
Warranty:
Manufacturer
£ 2.93
Checking for live stock
Contact Configuration:
4PST
Contact Current Rating:
150 mA@ 250 V ac
Number of Switch Positions:
3
Number of Contacts:
4
Voltage Rating:
250 V ac, 250V dc
Depth:
27.5mm
Width:
27.5mm
Mounting Type:
Panel Mount
Terminal Type:
Solder Tab
Height:
59.1mm
Contact Material:
Silver Plated Brass
Maximum Operating Temperature:
+85°C
