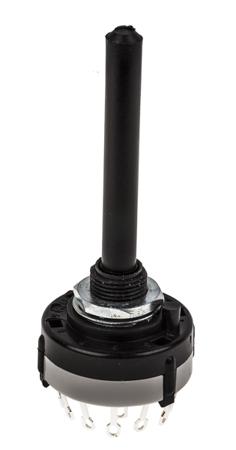

Midget Wafer Switch 6mm Spindle - CK Series
A selection of Lorlin CK rotary switches with various switch configurations.
Contacts rated 150mA @ 250Vac/dc
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
, 4 Position 3PST Rotary Switch, 150 mA@ 250 V ac, Solder Tab
Manufacturer:
Lorlin
Manufacturer Part No:
CK1041
Enrgtech Part No:
ET16753073
Warranty:
Manufacturer
£ 2.97
Checking for live stock
Contact Configuration:
3PST
Contact Current Rating:
150 mA@ 250 V ac
Number of Switch Positions:
4
Number of Contacts:
3
Voltage Rating:
250 V dc, 250V ac
Depth:
27.5mm
Width:
27.5mm
Mounting Type:
Panel Mount
Terminal Type:
Solder Tab
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
+85°C
Contact Material:
Silver Plated Brass
