The Gray Coded Rotary Switch is a high-quality product designed for general electrical applications. With a life expectancy of over 10,000 cycles and a proof voltage of 250Vac, this switch is durable and reliable.
Switch Rating 150mA at 50Vac/dc
Operating Temperature -30degreeC to +85 degreeC
Insulation Resistance >999 Mat 500Vdc
Contact Resistance <50 m(Initial)
Made in the UK with Standard 22.5º indexing 4-Bit
Special options include UL-V0 and Gold Flashed Contacts
Operating Torque Standard 4.7 ± 0.5 cNm
Moulded 27.5mm diameter single wafer switch
Operating Temperature -30degreeC to +85 degreeC
Insulation Resistance >999 Mat 500Vdc
Contact Resistance <50 m(Initial)
Made in the UK with Standard 22.5º indexing 4-Bit
Special options include UL-V0 and Gold Flashed Contacts
Operating Torque Standard 4.7 ± 0.5 cNm
Moulded 27.5mm diameter single wafer switch

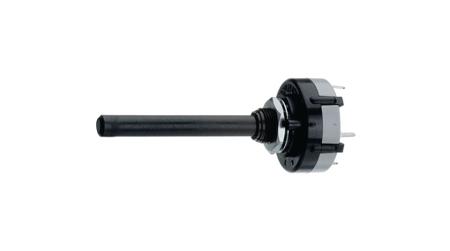

GCK, 15 Position Rotary Switch, 150mA, PCB Pin
Manufacturer:
Lorlin
Manufacturer Part No:
GCK1016
Enrgtech Part No:
ET28372468
Warranty:
Manufacturer
£ 8.10
Checking for live stock
Series:
GCK
Contact Current Rating:
150mA
Number of Switch Positions:
15
Voltage Rating:
50V ac/dc
Terminal Type:
PCB Pin
