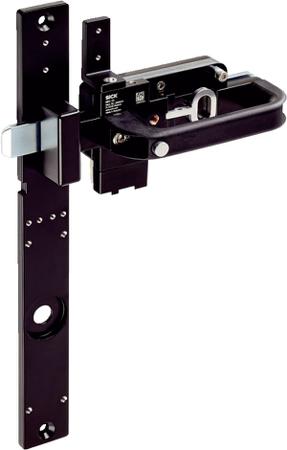

Overview The MB1 mechanical bolt is the ideal addition to non-contact safety switches and safety locking devices from SICK. Precise guiding of the actuator increases the tolerance to door offset and ensures correct functioning of an installed safety switch at all The fault exclusion realized in this way enables a high performance level for the overall structure. Additional options such as a mechanical lock with padlock receptacle lock or an emergency release reliably protect maintenance staff from accidental entra At a glance Rugged design
Variants with ANSI-compliant locking mechanism
Standardized frame plates suitable for many safety switches from SICK
Horizontal installation tolerance of 27 mm
Compensation of vertical door offset up to ± 7 mm
Variants with catch release but Your Benefit Reliable and cost-optimized solution for door locking
Increased productivity thanks to the rugged design and protection of the sensor
High performance level due to fault exclusion, prevents actuator breakage
Flexible mounting: Bolt can be used for right- Applications Protection of persons in the event of the machine making dangerous overrun movements
Applications with high requirements on a rugged design
Applications which require high tolerance to door offset
Door protection on strongly vibrating machines Note Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
