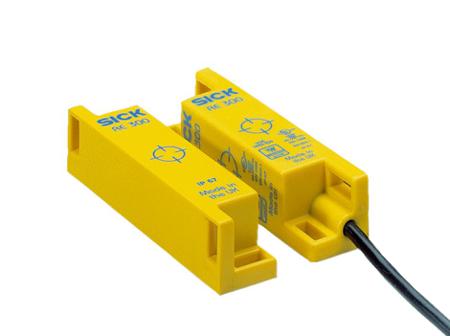

Overview The RE300 magnetic safety switches are equipped with complementary-switching normally open (NO)/normally closed (NC) contacts that use coded magnetic actuators. Magnetic safety switches can be used in areas where a high level of contamination occurs. The Their operating principle enables greater tolerances, making them ideal for applications where precise guidance of guards is difficult. At a glance 1 NO/1 NC contact
Response range of up to 5 mm
Up to performance level PL e / Cat. 4 (EN ISO 13849)
Direct connection to safe control solution possible
Sensors with connected cable Your Benefit Long service life due to durable and low-maintenance design
Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)
High level of machine availability due to high tol Applications Note Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
