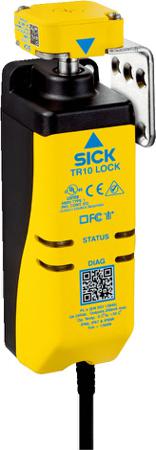

Overview The TR10 Lock safety locking device combines the best features of tried-and-tested technology: outstanding manipulation-proofing for the RFID technology that monitors the actuator, plus a high-strength, highly reliable mechanical locking mechanism. The se Two codings are available, affording applications more flexibility. The universally coded sensors accept all suitable actuators, while uniquely coded sensors only allow actuators that have previously been taught in. The bistable solenoid coil consumes onl At a glance PL e for door and locking monitoring (EN ISO 13849)
1,690 N locking force
RFID actuator with low or high coding level (EN ISO 14119)
Enclosure rating IP 67, IP 69K
Power to lock or power to release variants
Reliable series connection of safety outputs (OS Your Benefit The high coding level of the actuator meets all the EN ISO 14119 requirements relating to manipulation-proofing without additional measures
Self-monitoring semiconductor outputs (OSSDs) afford a high level of safety
Reliable series connection reduces inst Applications Protection of persons in the event of the machine making dangerous overrun movements
Process protection for automated production systems
Applications requiring a high standard of hygiene
Applications requiring a high level of manipulation-proofing Note Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
