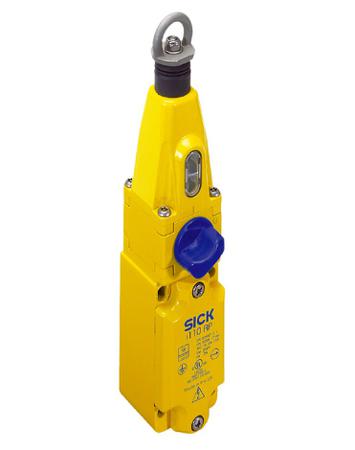

Overview The Safe rope pull switch over large distances for stopping a machine ensure that dangerous movements are reliably stopped over distances up to 30 m. The rope is connected to the rope pull switch for optimum safeguarding of hazardous points that are not p The contacts are opened by a pull on the rope or if the rope breaks, the emergency stop function is triggered. Actuation is possible at any point along the rope. At a glance Rope lengths up to 30 m, with rope break and rope pull function
Metal housing with integrated rotary unlocking lever and tension display
Available with M20 X 1.5 cable entry gland or Flexi Loop-compatible M12 plug connector (depending on variant)
Slow-act Your Benefit The emergency stop function can be triggered at any point along the rope
Simple adjustment of the rope tension
Rugged metal housing offers a high level of protection for the rope pull switch
User-friendly systems available with many rope lengths
Additiona Applications Use on machines and systems that do not have any physical guards
Safeguarding large areas, such as conveyor belts, assembly lines or feed systems Note Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
