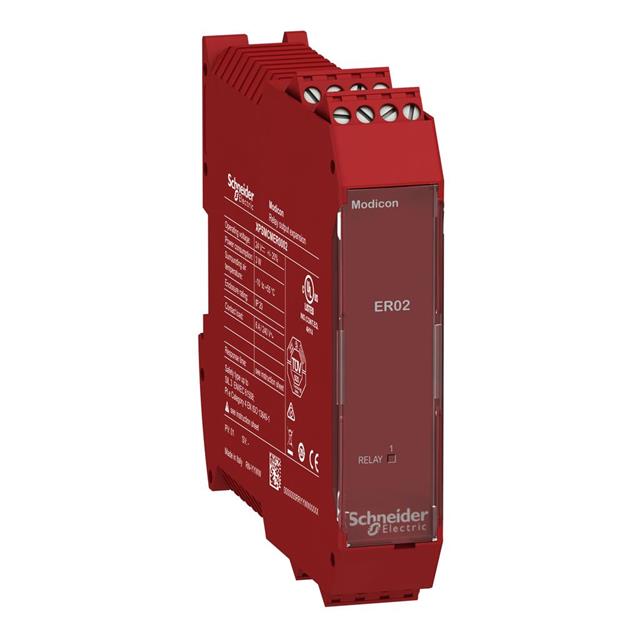

Schneider Electric XPSMCMER0002 Preventa XPSMCM Output Module, 1 Inputs, 2 Outputs, 24 V dc

Number of Outputs:

2

Better World Verification:

Green Premium

Better World Product:

Yes

Dimensions:

22.5 x 99 x 114.5 mm

Series:

XPSMCM

Mounting Style:

DIN Rail

Range:

Preventa

Supply Voltage:

24 V dc

Normal State Configuration:

2NO, NC

For Use With:

Preventa Modular Safety Controller

Power Rating:

3 W

Type:

Output Module

Terminal Type:

Screw

Number of Inputs:

1

RoHS Status:

ROHS3 Compliant

Termination Style:

Screw Terminal

Operating Temperature:

-10°C ~ 55°C

Approval Agency:

cULus, RCM, TUV

Mounting Type:

DIN Rail

Controller Type:

Safety Edge

title:

XPSMCMER0002

Auxiliary Outputs and Type:

-

Manufacturer:

Schneider Electric

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Contact Rating @ Voltage:

-

standardLeadTime:

5 Weeks

Ingress Protection:

IP20

Features:

-

Weight:

0.550 lb (249.48 g)

Number of Inputs and Type:

-

Series:

Modicon

Packaging:

Box

Safety Category:

-

Voltage - Supply:

24VDC

Safety Outputs and Type:

-
