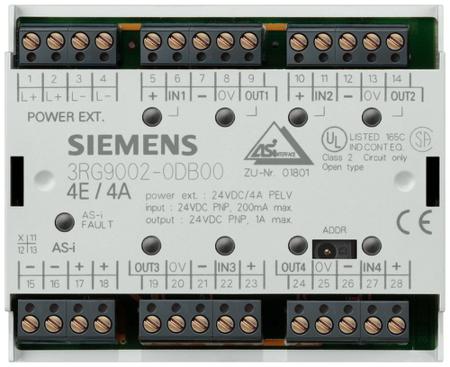

Siemens Input/Output Module, Rail Mounting, 90x75x37mm - 3RG9002-0DB00 This industrial input/output module serves as an efficient interface for automation tasks. It operates with a supply voltage of 26.5V to 31.6V, making it suitable for diverse applications. The compact rail mounting module has dimensions of 90x75x37mm and is designed for installation in control cabinets. It features a configuration of four digital inputs and four outputs, promoting effective communication and control in industrial settings. Features & Benefits • Supports four digital inputs for sensor connectivity
• Provides four outputs, each rated at 1A for operation
• Utilises screw terminal connections for straightforward wiring
• Incorporates a built-in watchdog for system reliability
• Compact size optimises space in control cabinets Applications • Connects sensors in automation systems
• Controls devices in manufacturing environments
• Used in control cabinets for electrical interfaces
• Suitable for various industrial monitoring and control tasks
• Accommodates systems requiring short-circuit protection Is it compatible with 3-wire sensors? Yes, it supports 2- and 3-conductor PNP sensors. Can it function without an external power supply? No, an additional supply is required for outputs. Will it protect against short-circuits? Yes, it features built-in short-circuit protection. What type of connection do outputs use? Outputs use screw-type terminals for secure connections. Can it accommodate different ambient temperatures? Yes, it operates between -25°C and +70°C.
