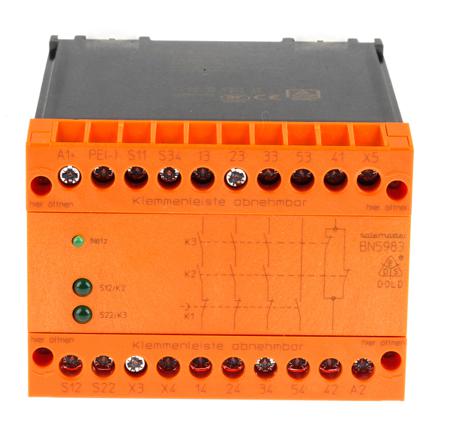

Emergency Stop Module, BN5983.53
Machine emergency stop switches
Monitors safety doors
SK 3 (with equivalent switching)
Output: 3 N/Os, 1 N/C for AC 380 V
1 or 2-channel configuration
LED indicators for channels 1 and 2
Control loop X3-X4 for monitoring external protection
Removable terminals
Protection of humans and machines in accordance with: EC Directive on Machines 89/392/EEC, IEC 204, EN 60204, DIN VDE 0113
Input:
Nom. voltage:
AC 230 V or DC 24 V
Control voltage on S11:
24 Vdc
Min. Voltage on S12, S21:
DC 21 V (activated device)
Output:
Contact assignment:
3 N/Os, 1 N/C, 1 wiping contact (approx. 200 ms)
Response time:
35 ms
Downtime in case of interruption:
...in secondary circuit (S12-S22):
30 ms ±25%
...in network:
100 ms ±50%
Switching capability according to AC 15:
5 A / AC 230 V
General data:
Temperature range:
-15 °C → +55 °C
Terminal positioning:
Compliant with DIN 46199-4
Device dimensions (W x H x D):
100 x 74 x 121 mm
Approvals
BG, TÜV-Rheinland, UL, CSA, SUVA, SA Sweden,
Arbejdstilsynet Denmark
Standards
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
BN 5983 24 V dc Safety Relay Dual Channel with 3 Safety Contacts and 1 Auxilary Contact
Manufacturer:
DoldManufacturer Part No:
BN5983.53 DC24V
Enrgtech Part No:
ET14081769
Warranty:
Manufacturer
£ 524.95
Checking for live stock
Function:
Emergency Stop
SIL IEC 61508:
3
Reset Method:
Monitored
Safety Category ISO 13849-1:
4
PL ISO 13849-1:
e
Performance Level:
e
Series:
BN 5983
Length:
74mm
Width:
100mm
Depth:
121mm
Number of Channels:
2
Supply Voltage:
24V dc
