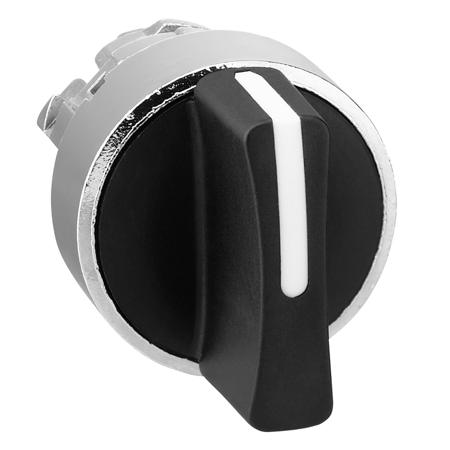

Schneider Electric ZB4BD7 This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Features & Benefits • IP67 and IP69K ratings provide protection against dust and high-pressure water
• 3-position functionality offers versatile operational control
• Spring return mechanism enhances safety by automatically resetting to a neutral position
• Standard black handle presents a professional and clear interface
• Mechanical durability up to 1,000,000 cycles for prolonged use
• Chromium-plated metal bezel ensures resistance to corrosion Applications • Suitable for control panels and machinery in industrial settings
• Designed for automated systems that require a dependable selector switch
• Can be used with electrical components to enhance control functionality
• Ideal for environments needing high ingress protection standards
• Applicable in situations that demand mechanical robustness and reliability What is the recommended method for installing the switch head? The switch head can be installed using screw clamp terminals or plug-in connectors, based on the setup. Can it operate effectively in high-temperature environments? Yes, it operates efficiently within the ambient temperature range of -40 to 70°C. How to ensure proper alignment during installation? Verify that the panel cut-out diameter is approximately 22.4mm and adhere to the mounting guidelines for optimal positioning. Is this product suitable for outdoor applications? Yes, the high IP rating makes it appropriate for outdoor use and harsh environments. What maintenance is required for optimal performance? Regular checks for mechanical wear and ingress protection are suggested to ensure longevity and reliability.
