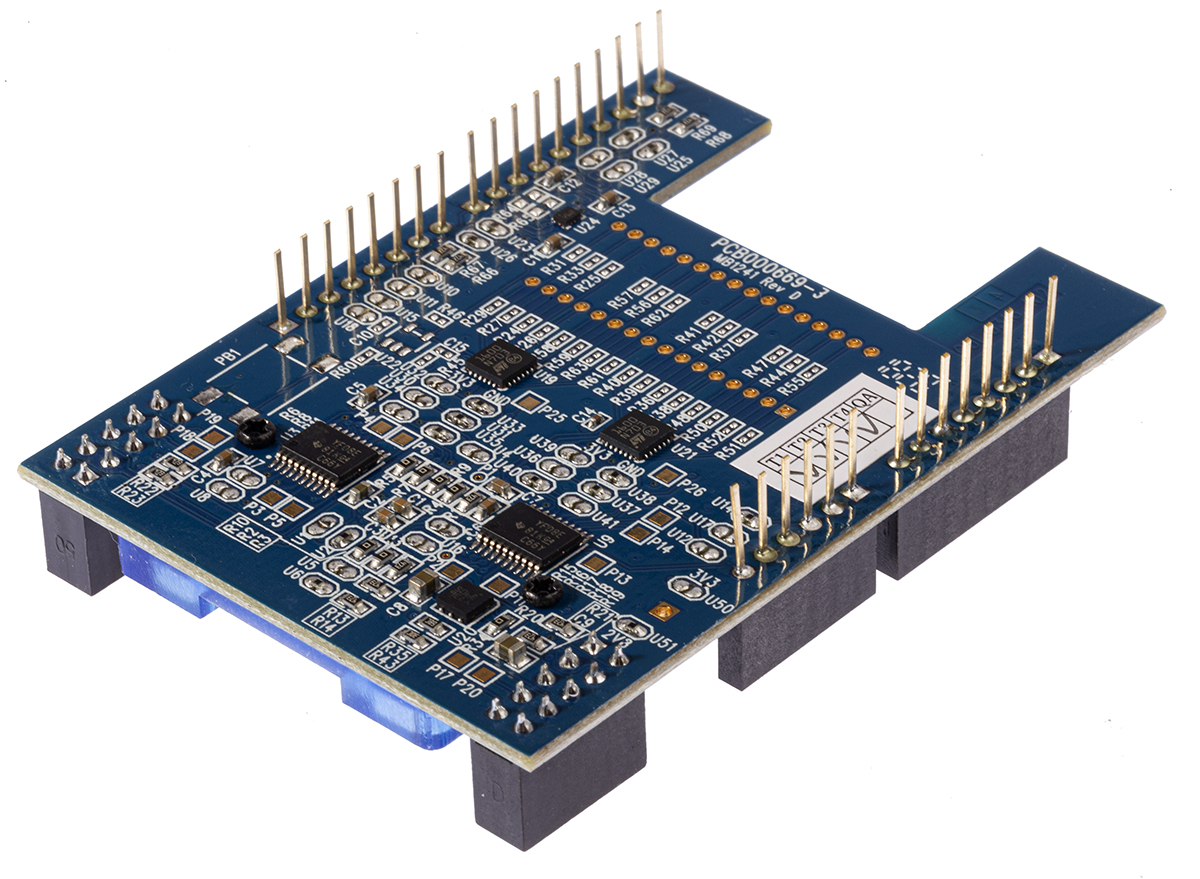

STMicroelectronics Time-of-Flight Expansion board The STMicroelectronics Time-of-Flight sensor expansion board used for NUCLEO-F401RE and NUCLEO-L476RG development boards. It provides a complete evaluation kit allowing anyone to learn, evaluate, and develop their applications using the VL53L1X ToF, long-distance ranging sensor technology. It contains three spacers of 0.25, 0.5, and 1 mm height, used to simulate different air gaps between the VL53L1X and the cover glass. Full system SW is supplied, including code examples and graphical user interface. All this can be downloaded from the folder "TOOLS AND SOFTWARE, section Ecosystems" on www. St. Com/VL53L1X. Features and Benefits • Accurate absolute ranging distance
• Compatible with STM32 nucleo board family and Arduino UNO R3 connector layout
• Input supply voltage is 3.3V
• Time-of-flight sensor module Applications • Electronic industry
• Long distance ranging Certifications • ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• ECCN (US) EAR99
