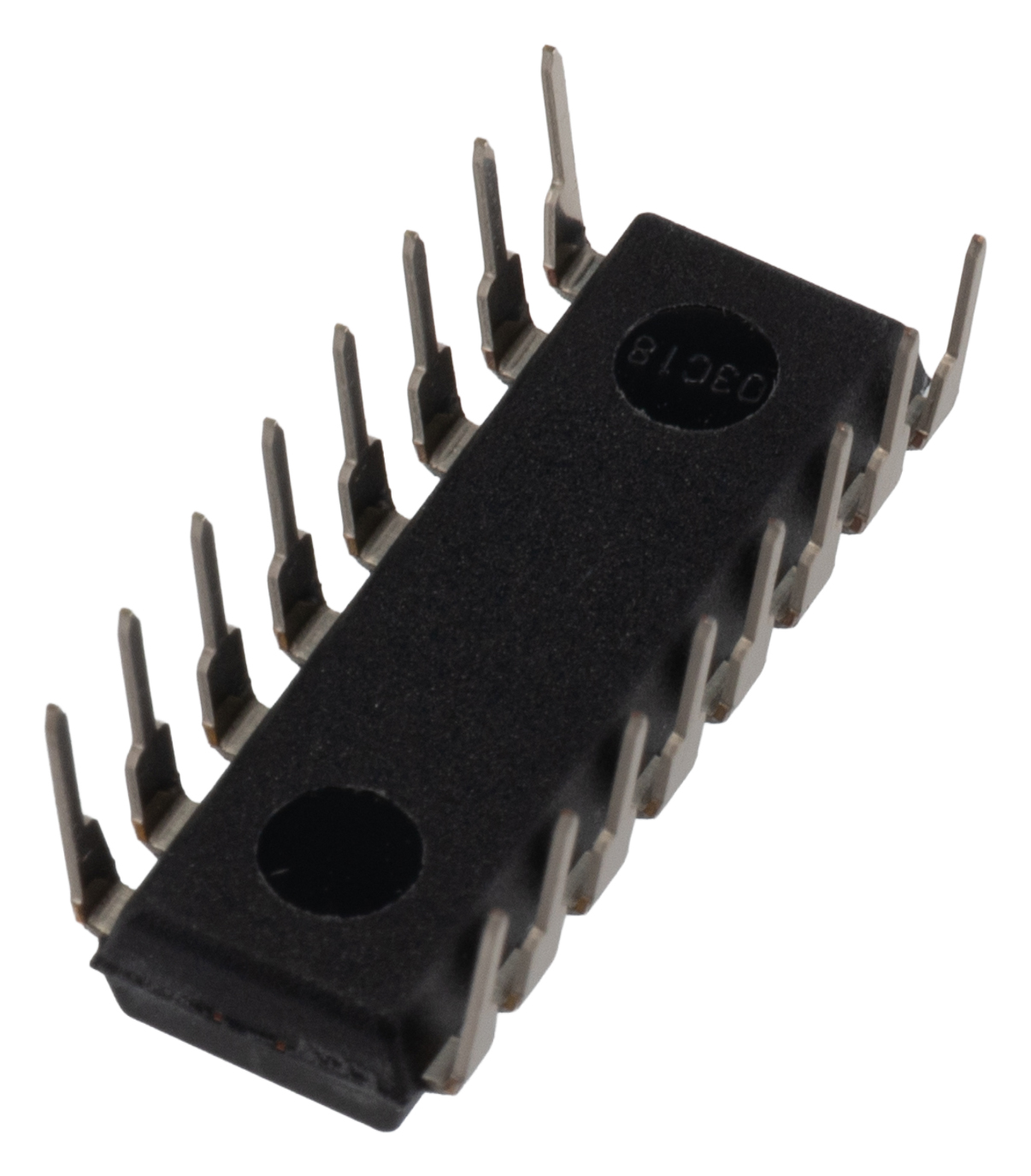

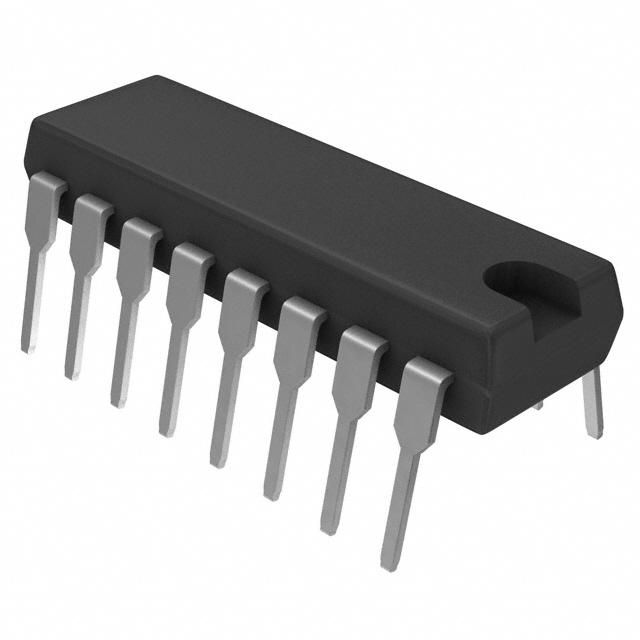

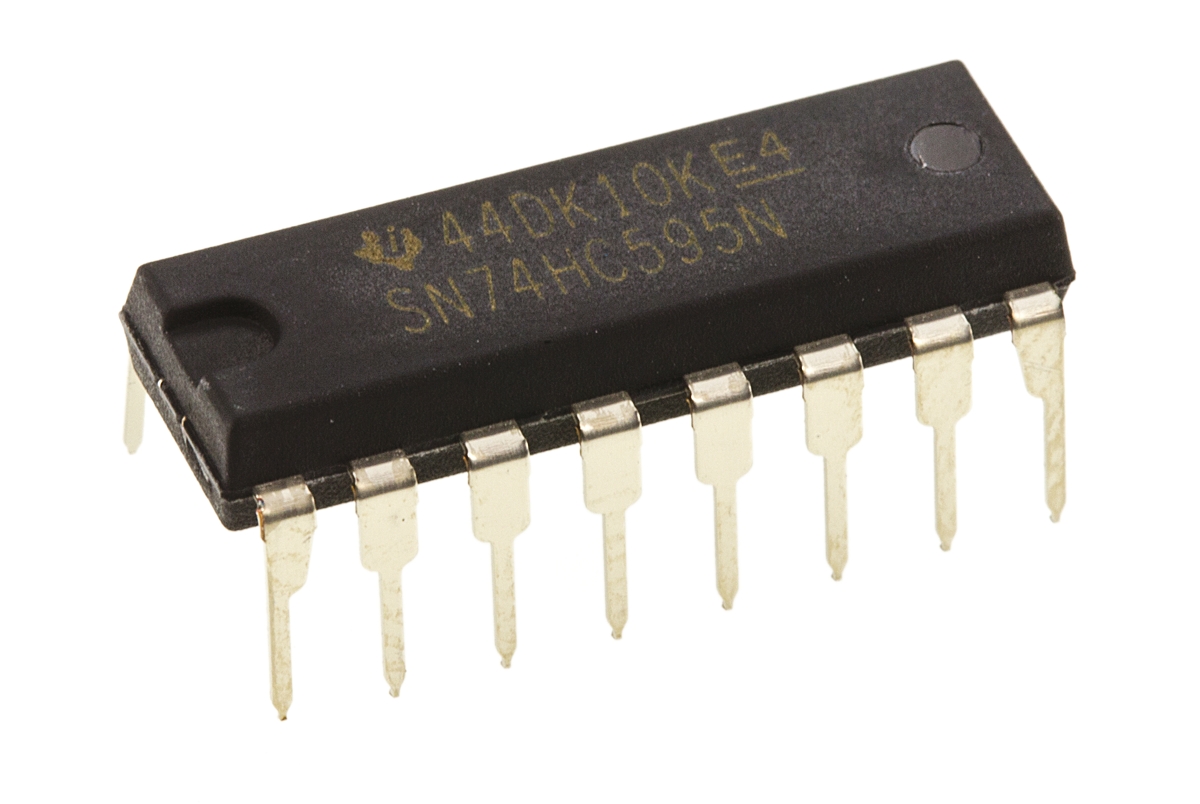

Texas Instruments SN74HC595N, Shift Register IC

Manufacturer:
Manufacturer Part No:
SN74HC595N
Enrgtech Part No:
ET11659278
Warranty:
Manufacturer
£ 0.98
Checking for live stock
Number of Elements:
1
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
2 V
Logic Function:
Shift Register
Logic Family:
HC
Pin Count:
16
Operation Mode:
Serial to Parallel
Package Type:
PDIP
Number of Stages:
8
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
6 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
85 °C
Reset Type:
Asynchronous
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
16-DIP (0.300", 7.62mm)
Function:
Serial to Parallel, Serial
Number of Bits per Element:
8
REACH Status:
REACH Unaffected
Output Type:
Tri-State
edacadModel:
SN74HC595N Models
edacadModelUrl:
/en/models/277246
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Series:
74HC
Logic Type:
Shift Register
Supplier Device Package:
16-PDIP
Packaging:
Tube
Voltage - Supply:
2V ~ 6V
Number of Elements:
1
Base Product Number:
74HC595
ECCN:
EAR99
