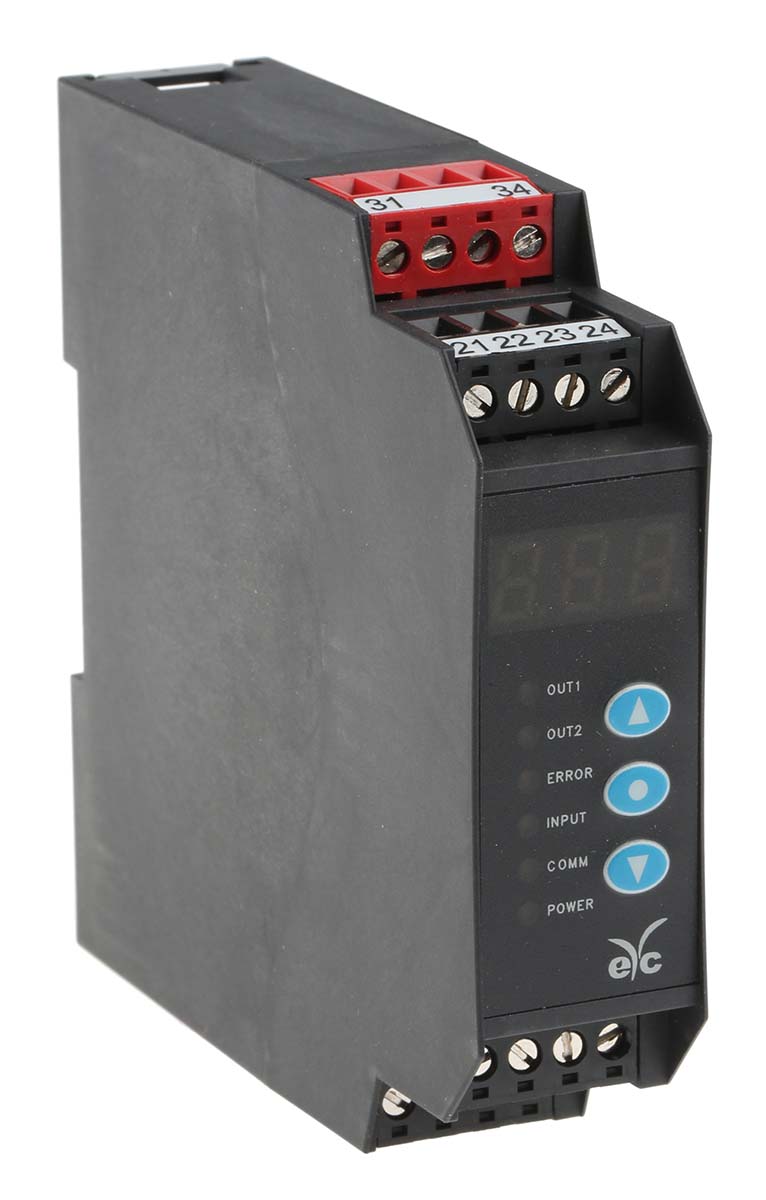

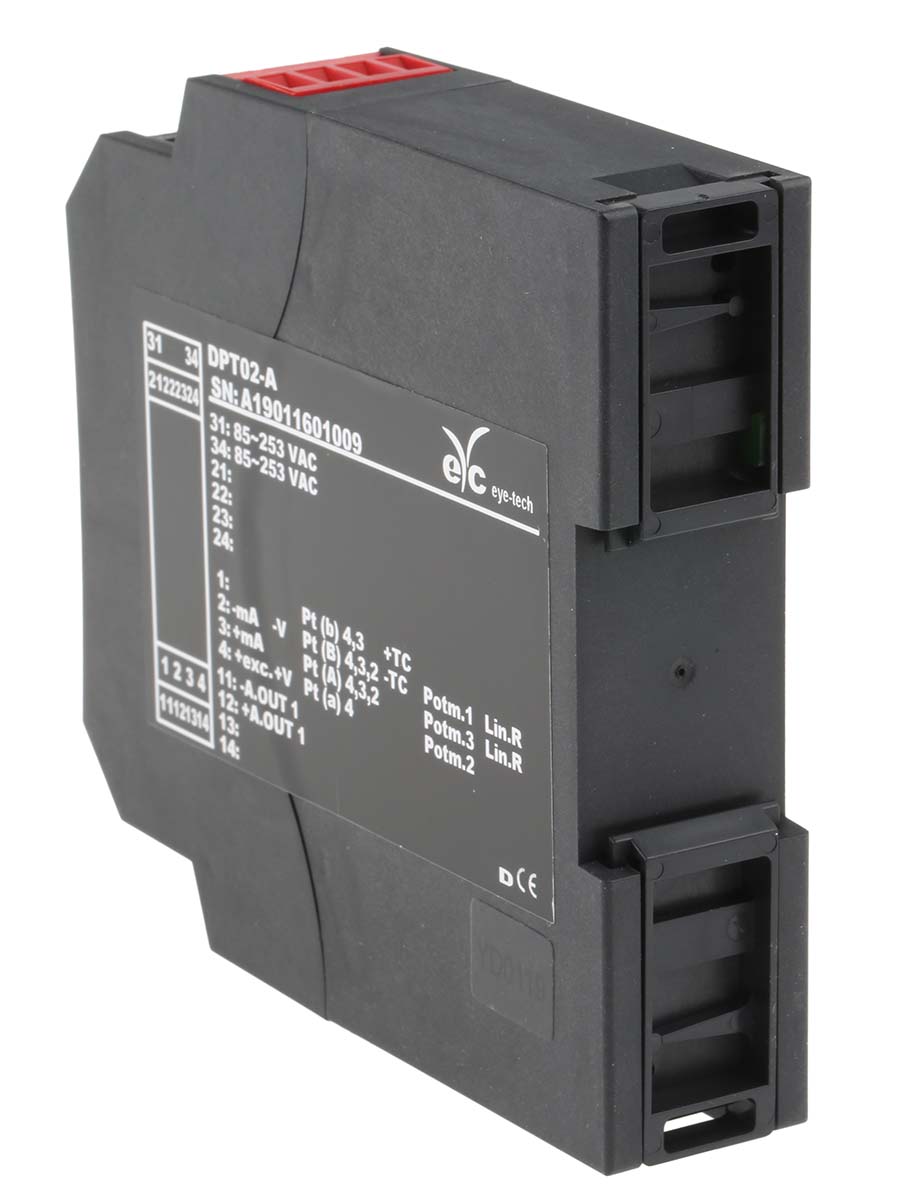

DPT02 Digital Universal Input Signal Converters
EYC-Tech DPT02 series digital universal input signal converters measure a wide range of input types and convert these into an analogue output. The DPT02 features a 3-digit readout display and simple keypad for programming the signal output and scale.
Features and Benefits
3-digit red LED display
85 V ac to 253 V ac supply voltage
IP20 rated
Polarity and over-voltage protection
ABS housing (UL94V-0)
DIN Rail mount
EYC DPT02 Series Signal Conditioner, Universal Input, Current, Voltage Output, 85 → 253V ac Supply
Manufacturer:
EYC
Manufacturer Part No:
DPT02-A
Enrgtech Part No:
ET16822182
Warranty:
Manufacturer
£ 126.44
Checking for live stock
Module Type:
Universal Signal Converter
Input Signal Type:
Universal
Output Signal Type:
Current, Voltage
Input Range:
0 → 1 V, 0 → 10 kΩ, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 0.2 → 1 V, 1 → 5 V, 10 → 100 kΩ, 2 → 10 V, 4 → 20mA
Output Range:
0→20 mA, 4→20 mA, 20→0 mA, 20→4 mA, 0 → 1 V, 0 → 10 V, 0 → 5 V, 0.2 → 1 V, 1 → 0 V, 1 → 0.2 V, 1 → 5 V, 10 → 0 V, 10 → 2 V, 2 → 10 V, 5→ 0 V, 5 → 1V
Supply Voltage:
85 → 253V ac
Mounting Type:
DIN Rail Mount
Operating Temperature Range:
-10 → +60°C
Series:
EYC DPT02
Termination:
Screw
Minimum Operating Temperature:
-10°C
Number of Channels:
2
