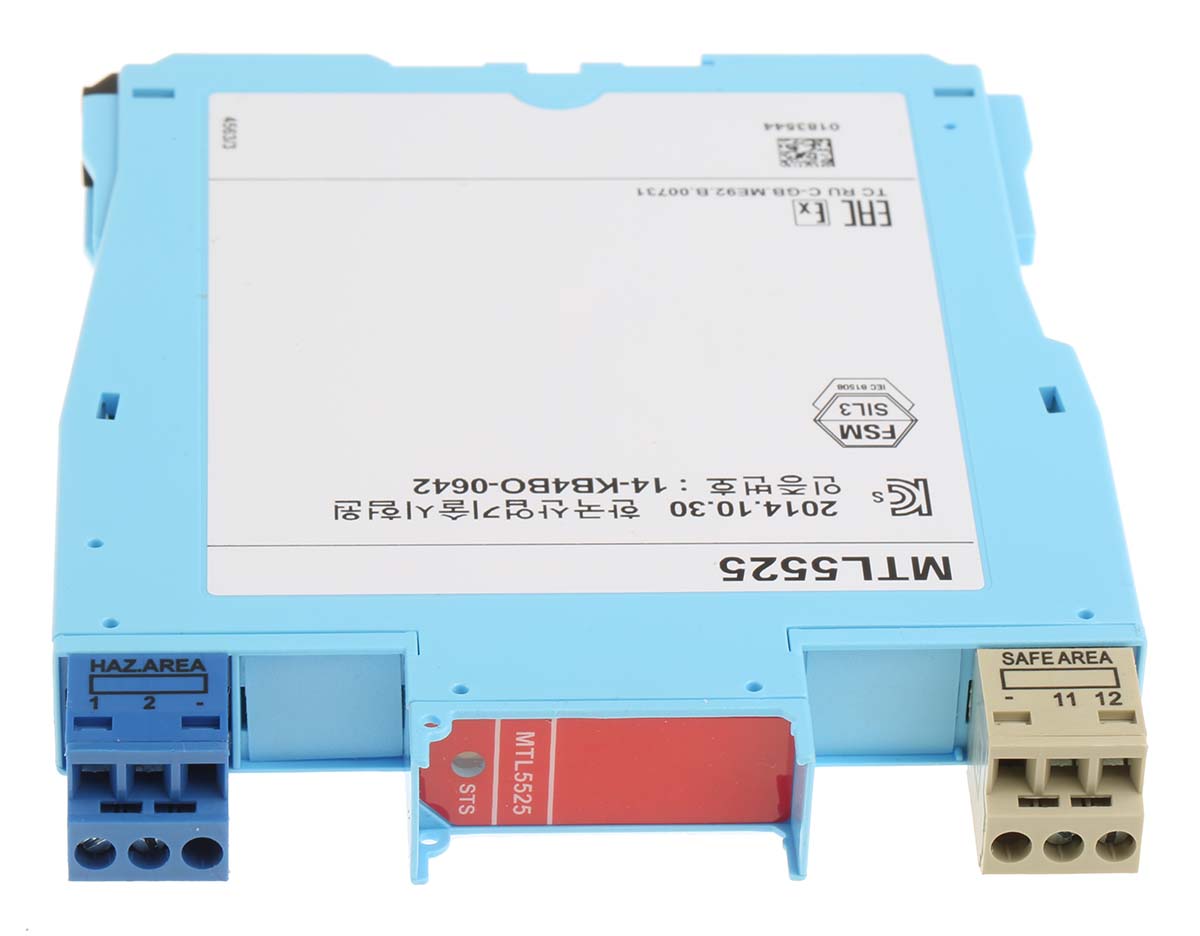

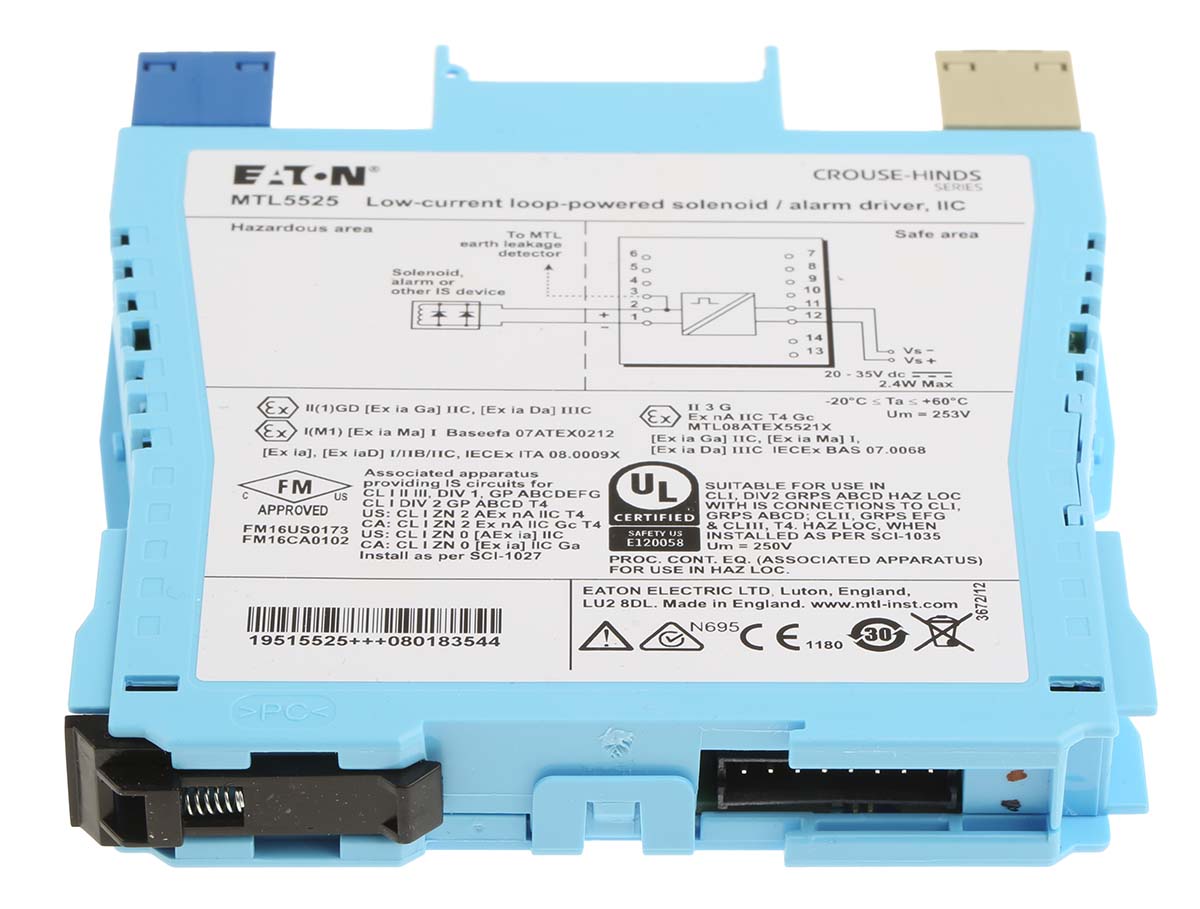

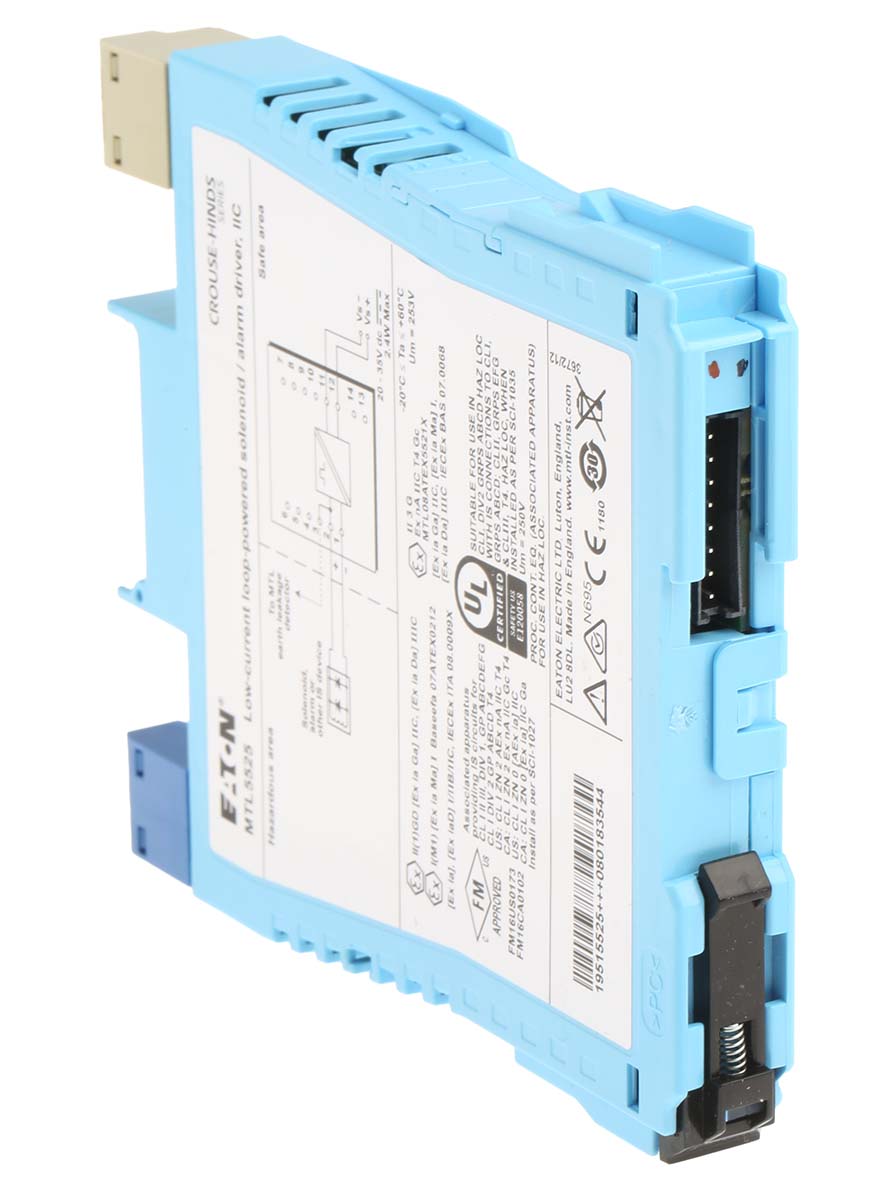

mtl5525 MTL MTL5525, Isolation Signal Conditioner, 1.4 → 4.5 V dc Input, 7.8 → 24 V Output

The MTLx525 enables an on/off device in a hazardous area to be controlled by a volt-free contact or logic signal in the safe area. It can drive loads such as solenoids, alarms, LEDs and other low power devices that are certified as intrinsically safe or are classified as non-energy storing simple apparatus. The MTL4525 allows a second safe-area switch or logic signal to be connected that enables the output to be disabled to permit, for example, a safety system to override a control signal. Compact modular design with DIN rail mounting High packing density Single and multi-channel I/O modules 3-port isolation with low power dissipation Compatible with MTL5000

For more information please check the datasheets.

MTL 5525, Isolation Signal Conditioner, 1.4 → 4.5 V dc Input, 7.8 → 24 V Output

Name: MTL MTL5525, Isolation Signal Conditioner, 1.4 → 4.5 V dc Input, 7.8 → 24 V Output
Brand: MTL
SKU: ET16930113
Availability: InStock

Manufacturer:

MTL

Manufacturer Part No:

MTL5525

Enrgtech Part No:

ET16930113

Warranty:

Manufacturer

£ 161.47

Checking for live stock

Output Signal Type:

Voltage

Mounting Type:

DIN Rail Mount

Operating Temperature Range:

-20 → +60°C

Output Range:

7.8 → 24V

Series:

MTL

Module Type:

Solenoid Driver

Input Range:

1.4 → 4.5V dc

Input Signal Type:

Voltage

Minimum Operating Temperature:

-20°C

Termination:

Cable

Maximum Operating Temperature:

+60°C

Datasheet(Technical Reference)

Instruction Manual - MTL Intrinsic Safety Solutions(Technical Reference)

MTL 5525, Isolation Signal Conditioner, 1.4 → 4.5 V dc Input, 7.8 → 24 V Output
