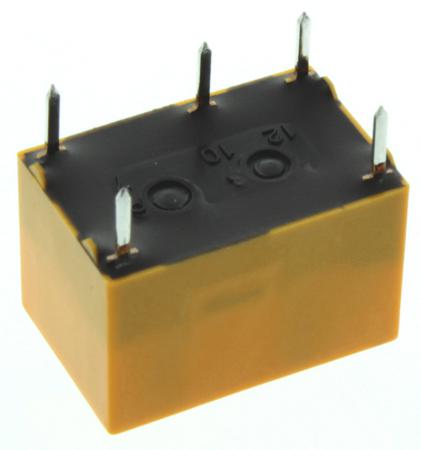

ds1e-s-dc24v Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, SPST
ds1e-s-dc24v Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, SPST
ds1e-s-dc24v Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, SPST

Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, SPST

Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, SPST

Manufacturer:
Panasonic
Manufacturer Part No:
DS1E-S-DC24V
Enrgtech Part No:
ET100251390
Warranty:
Manufacturer
£ 5.94 £ 5.94
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
SPST
Mounting Type:
PCB Mount
Maximum Switching Current DC:
3 A
Maximum Switching Voltage AC:
250V ac
Maximum Switching Voltage DC:
220V dc
Series:
DS
Maximum Switching Power DC:
60 W
Latching:
No
Length:
20.2mm
Depth:
9.8mm
Height:
9.9mm
Dimensions:
20 x 9.9 x 9.9mm
Terminal Type:
PCB Pin
Number of Poles:
1
Switching Current:
3A
Maximum Operating Temperature:
+70°C
Isolation Coil To Contact:
1.5kV rms
Coil Power:
200mW
Coil Resistance:
2800Ω
Operating Temperature Range:
-40 → +70°C
Electrical Life:
5000000 Operation Cycles
Life:
100000000 (Mechanical) cycles, 500000 (Electrical) cycles
Maximum Switching Power AC:
125VA
Minimum Operating Temperature:
-40°C
Contact Material:
Gold Plated
Features:
Suitable For Use In Difficult Environments, Gold Clad Twin Contacts Ensure High Reliability, Can Be Used With Automatic Solder And Automatic Wash Systems
pdf icon
0900766b81061f6a.pdf(datasheets)
Explore signal relays for reliable low-voltage control. Enrgtech offers compact PCB relays designed for precision switching in electronic signal circuits.
