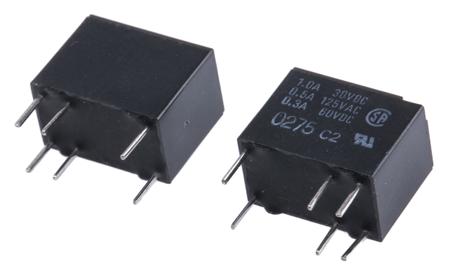

PCB Mount Signal Relay, 6V dc Coil, 2A Switching Current, SPDT

Coil Voltage:

6V dc

Contact Configuration:

SPDT

Mounting Type:

PCB Mount

Maximum Switching Current DC:

2 A

Maximum Switching Voltage AC:

125V

Maximum Switching Voltage DC:

60V

Maximum Switching Power DC:

30 W

Series:

IM-E

Length:

10mm

Latching:

No

Depth:

7.5mm

Height:

10mm

Dimensions:

12.5 x 10 x 7.5mm

Terminal Type:

Through Hole

Switching Current:

2A

Number of Poles:

2

Application:

Signal

Isolation Coil To Contact:

1.8kV rms

Electrical Life:

10^5 Operations

Maximum Switching Power AC:

62.5VA

Coil Resistance:

630Ω

Operating Temperature Range:

-40 → +70°C

Features:

Conforms to FCC Part 68 Requirements, Single Crossbar Contacts, Fully Sealed Construction.

Contact Material:

Gold Plated

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+70°C

Coil Power:

150mW

Life:

5000000 (Electrical) cycles

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=33720&DisplayLogo=False
