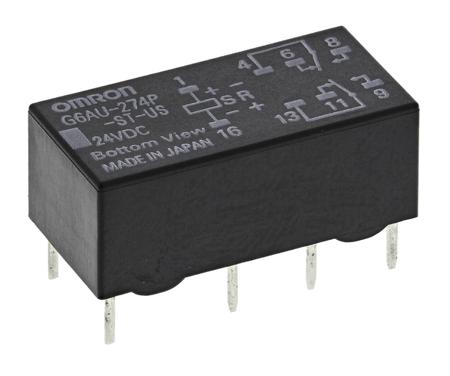

PCB Mount Latching Signal Relay, 24V dc Coil, 2A Switching Current, DPDT

Coil Voltage:

24V dc

Contact Configuration:

DPDT

Mounting Type:

PCB Mount

Maximum Switching Current AC:

2 A

Maximum Switching Current DC:

2 A

Maximum Switching Voltage AC:

250V ac

Maximum Switching Voltage DC:

220V dc

Maximum Switching Power DC:

60 W

Latching:

Yes

Length:

20.2mm

Depth:

10.1mm

Height:

8.4mm

Dimensions:

20.2 x 8.4 x 10.1mm

Terminal Type:

Through Hole

Switching Current:

2A

Maximum Operating Temperature:

+70°C

Minimum Operating Temperature:

-40°C

Contact Material:

Gold Plated

Coil Resistance:

5760Ω

Operating Temperature Range:

-40 → +70°C

Features:

With PCB Stand-offs

Maximum Switching Power AC:

125VA

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=33755&DisplayLogo=False
