AGQ Series
These ultra small PCB mount relays have a compact flat body and a small footprint of 10.6 x 7.2mm and is only 5.2 mm high. These also offer a high surge resistance, increased packaging density and outstanding vibration and shock resistance. The sealed construction of these PCB relays allow automatic washing. Typical applications include telephone switchboards, telecommunications equipment, security, measurement equipment, and consumer electronic and audio visual equipment.
Compact design 10.6 x 7.2 x 5.2 mm
High sensitivity
Superior surge resistance 2500V 2x10 μs, 1500V 2x160 μs
Nominal operating power 140 mW
Functional shock resistance 705 m/s2
Destruction vibration resistance 10 to 55Hz
Sealed construction
High sensitivity
Superior surge resistance 2500V 2x10 μs, 1500V 2x160 μs
Nominal operating power 140 mW
Functional shock resistance 705 m/s2
Destruction vibration resistance 10 to 55Hz
Sealed construction

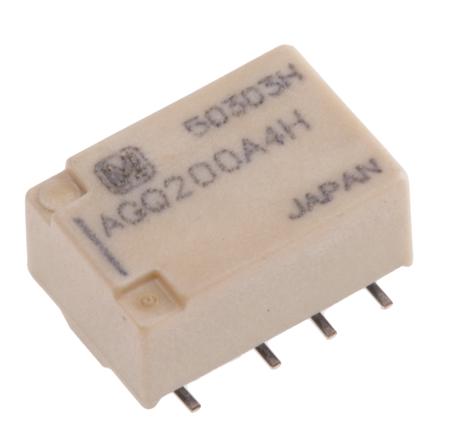

Surface Mount Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT
Manufacturer:
Panasonic
Manufacturer Part No:
AGQ200A4H
Enrgtech Part No:
ET14099147
Warranty:
Manufacturer
£ 3.44
Checking for live stock
Coil Voltage:
4.5V dc
Contact Configuration:
DPDT
Mounting Type:
Surface Mount
Maximum Switching Current AC:
0.3 A
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V
Maximum Switching Voltage DC:
110V
Maximum Switching Power DC:
30 W
Series:
FTR-B4
Length:
10.9mm
Latching:
No
Depth:
7.2mm
