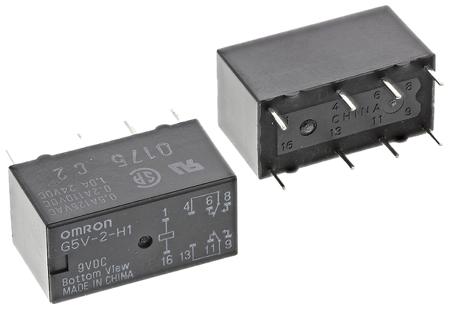

PCB Mount Signal Relay, 9V dc Coil, 1A Switching Current, DPDT

Coil Voltage:

9V dc

Contact Configuration:

DPDT

Mounting Type:

PCB Mount

Maximum Switching Current DC:

1 A

Maximum Switching Voltage AC:

125V

Maximum Switching Voltage DC:

125V

Series:

IM

Maximum Switching Power DC:

24 W

Latching:

No

Length:

20.5mm

Depth:

10mm

Height:

11.5mm

Dimensions:

20.5 x 10 x 11.5mm

Terminal Type:

Through Hole

Application:

Signal

Switching Current:

1A

Number of Poles:

2

Maximum Operating Temperature:

+70°C

Coil Power:

150mW

Maximum Switching Power AC:

62.5VA

Coil Resistance:

540Ω

Minimum Operating Temperature:

-25°C

Isolation Coil To Contact:

1.8kV rms

Electrical Life:

10^5 Operations

Features:

Conforms to FCC Part 68 Requirements, Bifurcated Contacts

Contact Material:

Gold Plated

Operating Temperature Range:

-25 → +70°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=33733&DisplayLogo=False
