Coil Voltage:
24V dc
Contact Configuration:
DPDT
Mounting Type:
PCB Mount
Maximum Switching Current AC:
2 A
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
250V
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W

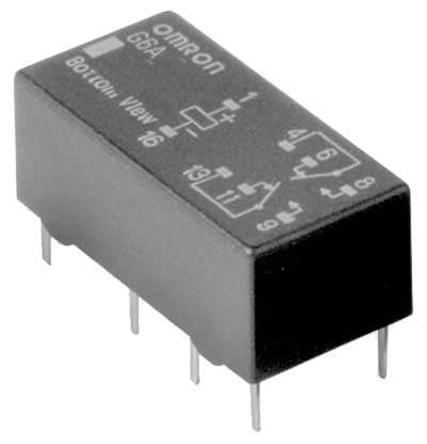

Series:
G6A
Length:
20mm
Latching:
No
Depth:
10.1mm
Height:
8mm
Dimensions:
20.2 x 8 x 10.1mm
Terminal Type:
PCB Pin
Application:
Measurement Equipment, Medical, Telecommunications
Number of Poles:
2
Switching Current:
2A
Operating Temperature Range:
-40 → +70°C
Life:
50000 Operations
Contact Material:
Gold Plated
Coil Power:
400mW
Isolation Coil To Contact:
1.5kV rms
Coil Resistance:
1400Ω
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
125VA
Features:
Resistant To Electromagnetic Interference, Conforms to FCC Part Requirements, Bifurcated Contacts
