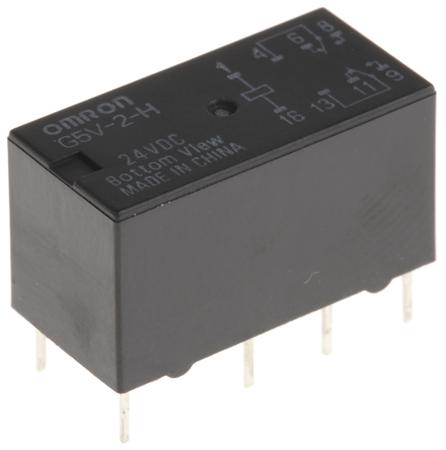

PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Coil Voltage:

24V dc

Contact Configuration:

DPDT

Mounting Type:

PCB Mount

Maximum Switching Current DC:

1 A

Maximum Switching Voltage AC:

125V

Maximum Switching Voltage DC:

125V

Series:

Card SN

Maximum Switching Power DC:

24 W

Length:

20.5mm

Latching:

No

Depth:

10mm

Height:

11.5mm

Dimensions:

20.5 x 10 x 11.5mm

Terminal Type:

Through Hole

Number of Poles:

2

Switching Current:

1A

Application:

Signal

Coil Resistance:

2800Ω

Maximum Switching Power AC:

62.5VA

Life:

15000000 (Electrical) cycles

Coil Power:

200mW

Electrical Life:

10^5 Operations

Operating Temperature Range:

-25 → +70°C

Isolation Coil To Contact:

1kV ac

Features:

Conforms to FCC Part 68 Requirements, Bifurcated Contacts

Contact Material:

Gold Plated

Minimum Operating Temperature:

-25°C

Maximum Operating Temperature:

+70°C
