Product Details

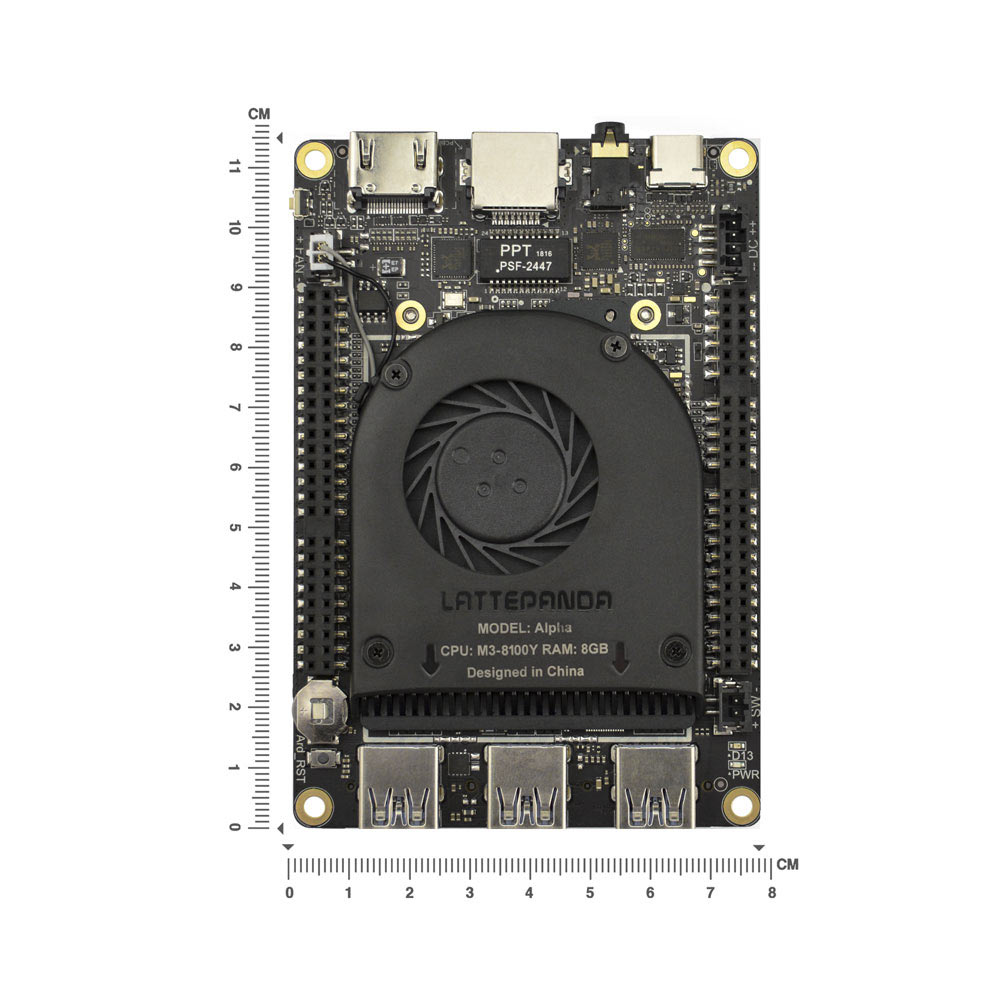

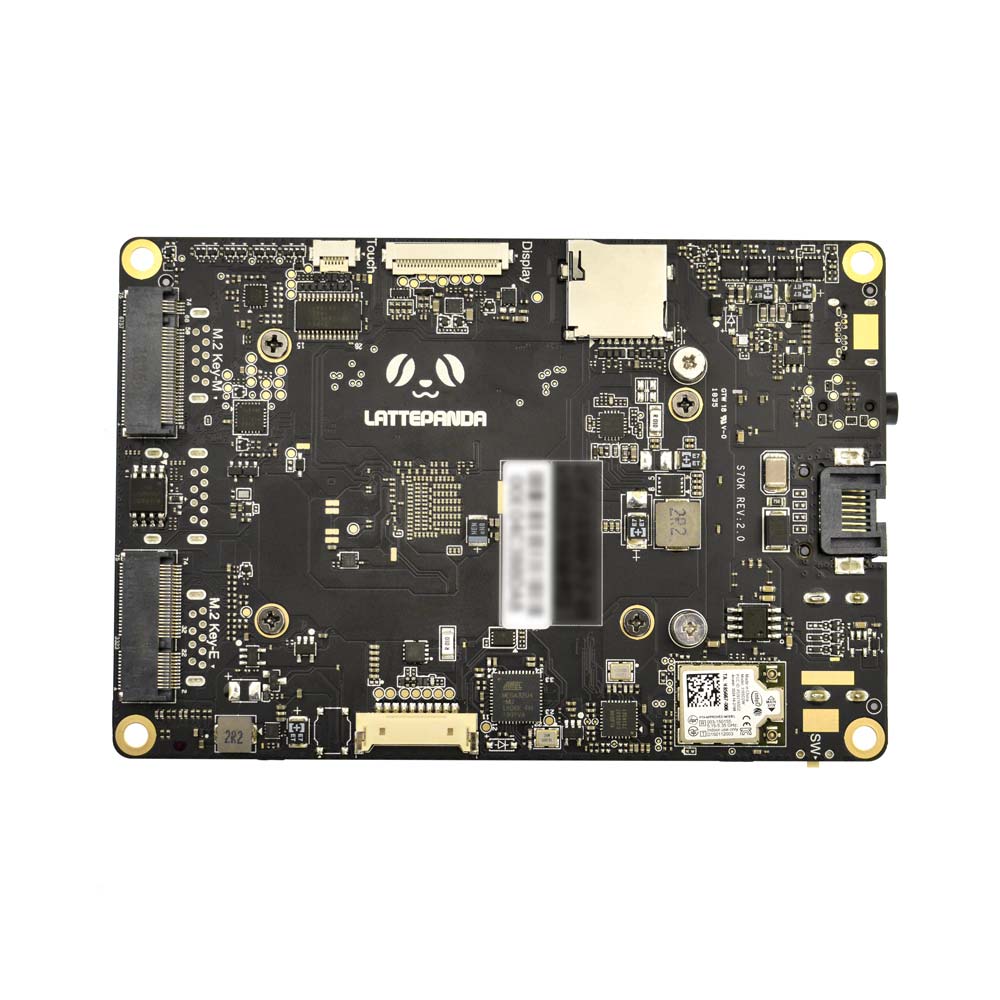

LattePanda Alpha 864s with Win10 Pro activated is an elite performance, easy to handle single-board computer with efficient power consumption that can run a full Windows 10 or Linux operation system. It is commonly used for edge computing, vending, advertising machine, industrial automation, etc. Whether you’re an IoT developer, system integrator, or solution provider, LattePanda is the ideal development board which can inspire creation and productivity.

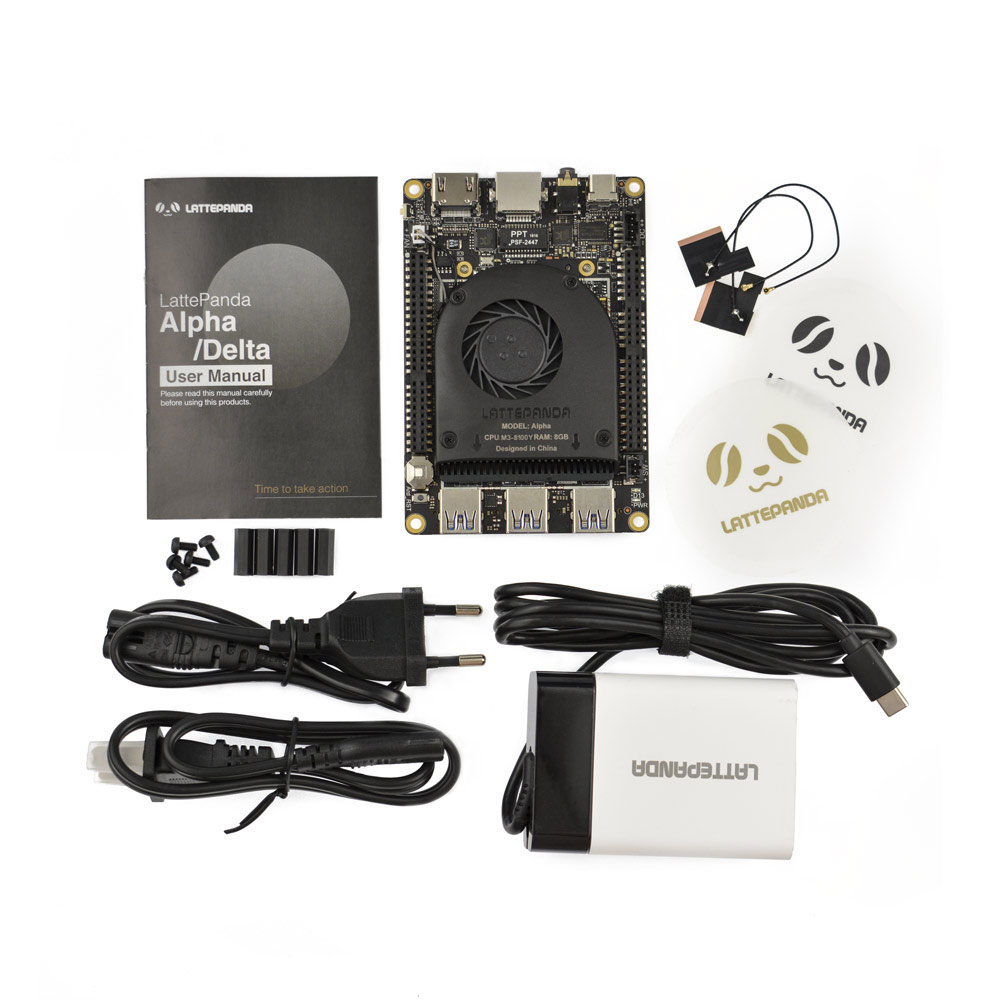

Contents

• LattePanda Alpha 864s (Win10 Pro activated) x1

• Active cooling fan (Assembled) x1

• 45w PD Power adapter (with EU & US standard power cord) x1

• Dual-band antenna x2

• RTC Battery (Assembled）x 1

• User Manual x 1

Key Features

• Intel® Core™ M3-8100Y, Dual-Core, 1.1-3.4GHz

• Intel® UHD Graphics 615

• 8GB Memory

• Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 4.2 & Gigabit Ethernet

• USB3.0 x3，USB Type-C x1

• 2 x M.2 PCIe (Support B&M Key and A&E Key)

• Support Windows 10 & & Linux OS

• Integrated Arduino Coprocessor ATMEL 32U4

• Powered by PD adapter / 12V DC / 7.4V battery

Key Benefits

• Amazing performance of this small device that fits into your pocket

• This LattePanda Alpha is perfect for makers who need a small, portable, and light SBC for their ultimate project! It can be easily hidden and incorporated into a creative project, given its tiny size. It will be the powerful secret brain behind your coolest project ever.

• Supports Win10 Pro and Linux

• LattePanda has a pre-installed Win10 pro operating system; however, it also supports Linux.

• Perfect for Embedded Solutions

• Embedded DisplayPort (commonly referred to as eDP) is a full-digital interface based on the VESA DisplayPort architecture and protocol. It can use simpler connectors and fewer pins to transmit high-resolution signals and allow higher transmission speeds than LVDS cables.

• Another benefit of the eDP interface is that it allows you to easily connect your LattePanda to an LCD.

• Type-C interface allows the seamless connectivity of data, PD power supply, and 4K video output, which solves the problem of messy desktop wires and makes it more convenient to transfer equipment. With more efficient transmission capacity, richer expandability, convenient and straightforward connection, it has become one of the world’s consumer electronics standards.
