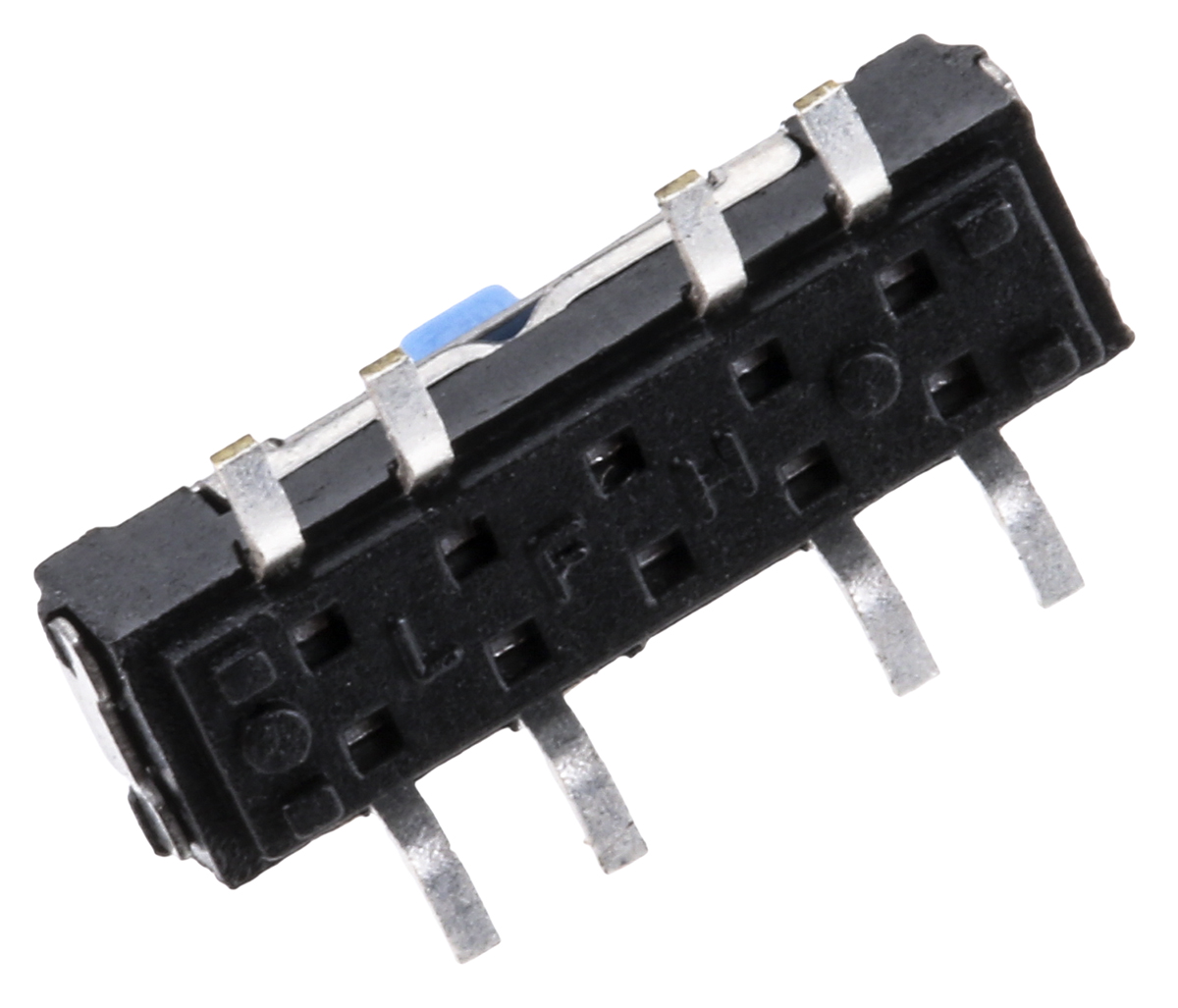

PCB Slide Switch DPST On-On-On 300 mA @ 4 V dc

Contact Configuration:

DPST

Mounting Type:

PCB

Switch Operation:

On-On-On

Contact Current Rating:

300 mA @ 4 V dc

Terminal Type:

Solder

Length:

12.4mm

Width:

7.5mm

Depth:

7.5mm

Dimensions:

12.4 x 3.5 x 7.5mm

Contact Resistance:

70mΩ

Voltage Rating:

6V

Mechanical Life:

10000Operations

Minimum Operating Temperature:

-10°C

Operating Temperature Range:

-10 → +60°C

Contact Material:

Silver Plated Copper Alloy

Maximum Operating Temperature:

+60°C
