Miniature Slotted Optical Switch, Vishay
The TCST2103, TCST2202, and TCST2300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width.
Features:
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released Applications: • Optical switch
• Photo interrupter
• Counter
• Encoder
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released Applications: • Optical switch
• Photo interrupter
• Counter
• Encoder

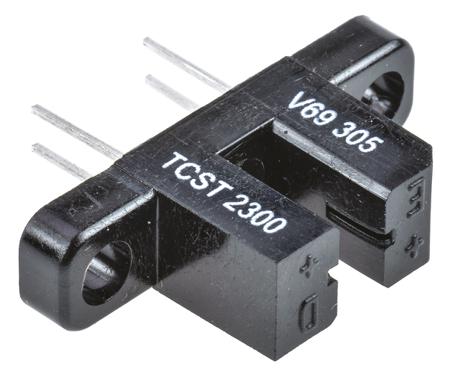

TCST2300 , Through Hole Slotted Optical Switch, Phototransistor Output
Manufacturer:
Vishay
Manufacturer Part No:
TCST2300
Enrgtech Part No:
ET13958802
Warranty:
Manufacturer
£ 1.00
Checking for live stock
Output Device:
Phototransistor
Number of Channels:
1
Typical Rise Time:
10µs
Typical Fall Time:
8µs
Mounting Type:
Through Hole
Number of Pins:
4
Dimensions:
24.5 x 6.3 x 11.1mm
Height:
11.1mm
Length:
24.5mm
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Slot Width:
3.1mm
