Miniature Slotted Optical Switch, Vishay
The TCST2103, TCST2202, and TCST2300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width.
Features:
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released Applications: • Optical switch
• Photo interrupter
• Counter
• Encoder
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released Applications: • Optical switch
• Photo interrupter
• Counter
• Encoder

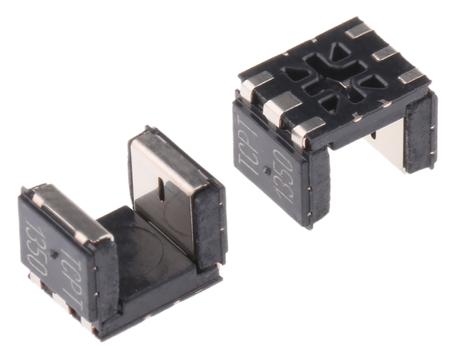

TCPT1350X01 , Surface Mount Slotted Optical Switch, Transistor Output
Manufacturer:
Vishay
Manufacturer Part No:
TCPT1350X01
Enrgtech Part No:
ET16723887
Warranty:
Manufacturer
£ 0.58
Checking for live stock
Output Device:
Transistor
Number of Channels:
1
Typical Rise Time:
9µs
Typical Fall Time:
16µs
Mounting Type:
Surface Mount
Number of Pins:
6
Dimensions:
5.5 x 4 x 4mm
Height:
4mm
Length:
5.5mm
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-40°C
Slot Width:
3mm
