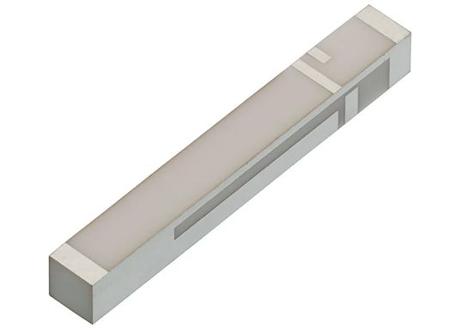

The Molex 146220 series is a SMT wide band high performance antenna is implemented using ceramic and it is designed to cover the various frequency bands from 698MHz to 2.7GHz. The antenna size is 40mmx5mmx5mm.
Linear polarization
Net weight 3.812/g
Net weight 3.812/g
146200-0011 External Chip SMT Antenna, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
Manufacturer:
Molex
Manufacturer Part No:
146200-0011
Enrgtech Part No:
ET21617408
Warranty:
Manufacturer
£ 0.99
Checking for live stock
Internal/External:
External
RF Protocols:
2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
Frequency Range:
2.7 GHz
Maximum Operating Temperature:
+125°C
Gain:
3.7dBi
Physical Form:
Chip
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2182083&DisplayLogo=False
