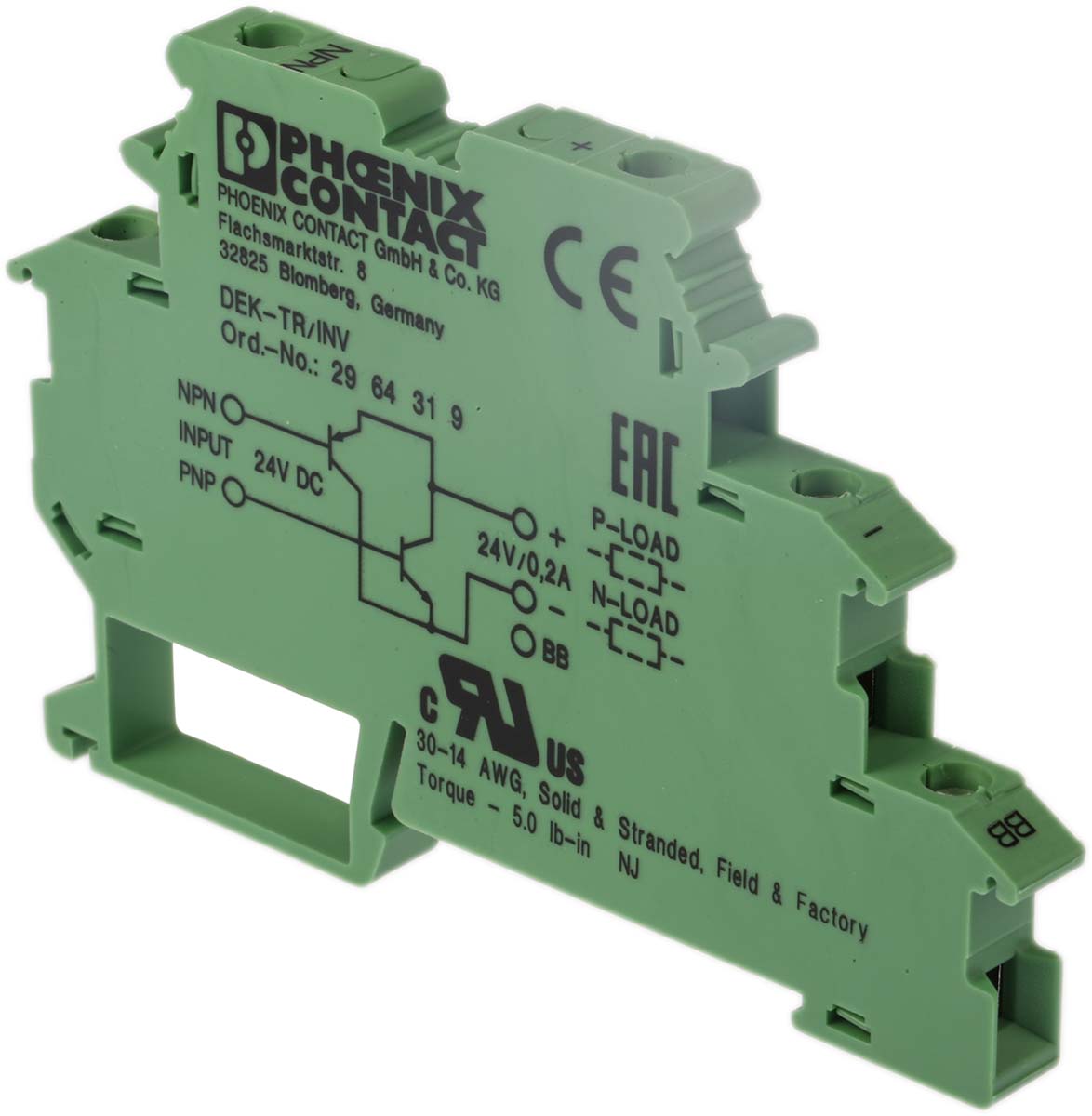

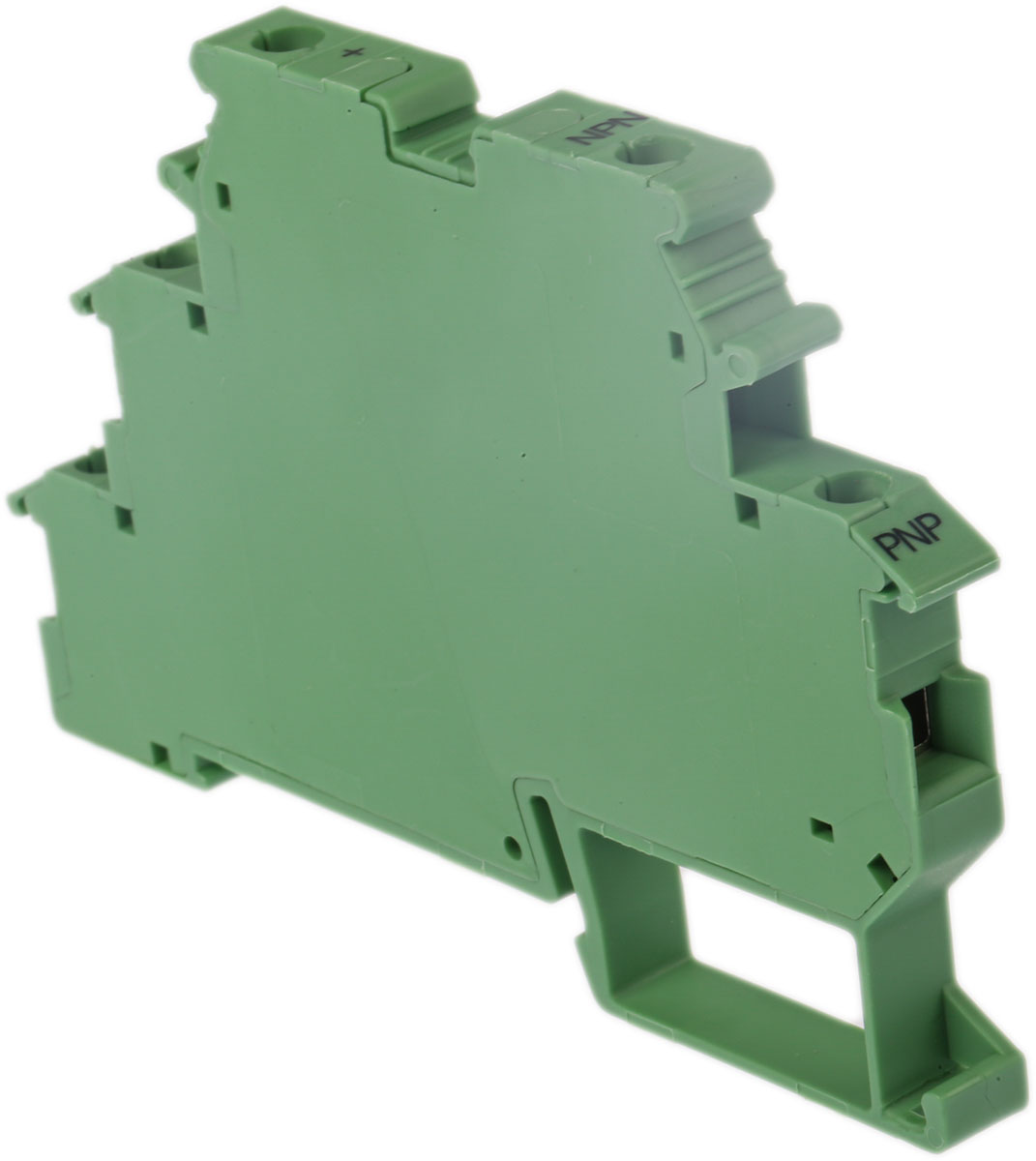

Phoenix Contact NPN to PNP/PNP to NPN Signal Inverter
A four-terminal converter enabling NPN to PNP or PNP to NPN signal inversion.
The DEK-TR/INV signal inverter has a screw connection and is designed to invert the signals of ground switching NPN transistor outputs into positive PNP outputs and vice versa. Features and Benefits • Supply voltage range 20Vdc – 30Vdc
• 200mA continuous current
• 15 kHz max. transmission frequency
• Operating temperature of -20°C to +50°C
• Dimensions of 80mm x 6.2mm x 56mm
• M3 screw thread
The DEK-TR/INV signal inverter has a screw connection and is designed to invert the signals of ground switching NPN transistor outputs into positive PNP outputs and vice versa. Features and Benefits • Supply voltage range 20Vdc – 30Vdc
• 200mA continuous current
• 15 kHz max. transmission frequency
• Operating temperature of -20°C to +50°C
• Dimensions of 80mm x 6.2mm x 56mm
• M3 screw thread
Solid State Interface Relay, DIN Rail Mount
Manufacturer:
Phoenix Contact
Manufacturer Part No:
2964319
Enrgtech Part No:
ET11042256
Warranty:
Manufacturer
£ 19.59
Checking for live stock
Mounting Type:
DIN Rail
Length:
6.2mm
Height:
80mm
Depth:
56mm
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+50°C
Dimensions:
6.2 x 56 x 80mm
Manufacturer Part No.:
2964319
Operating Temperature Range:
-20 → +50°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=39331&DisplayLogo=False
