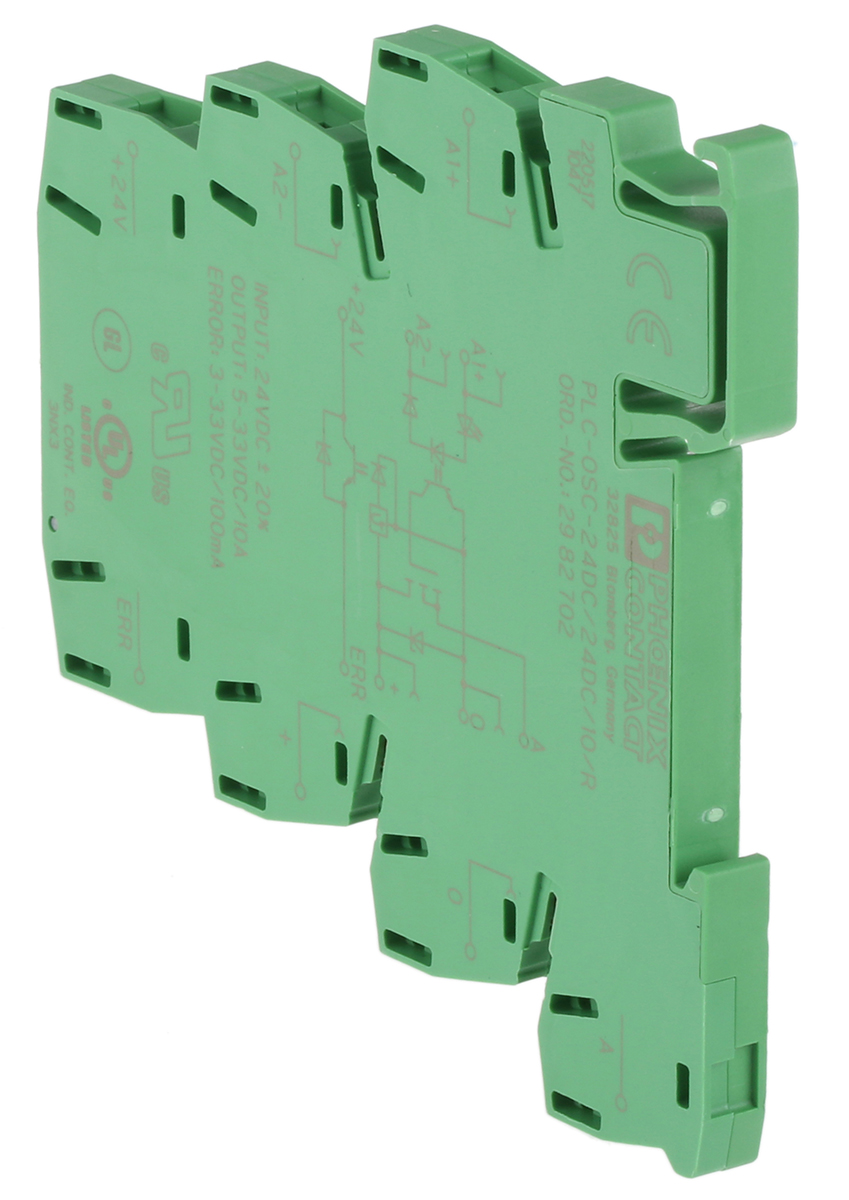

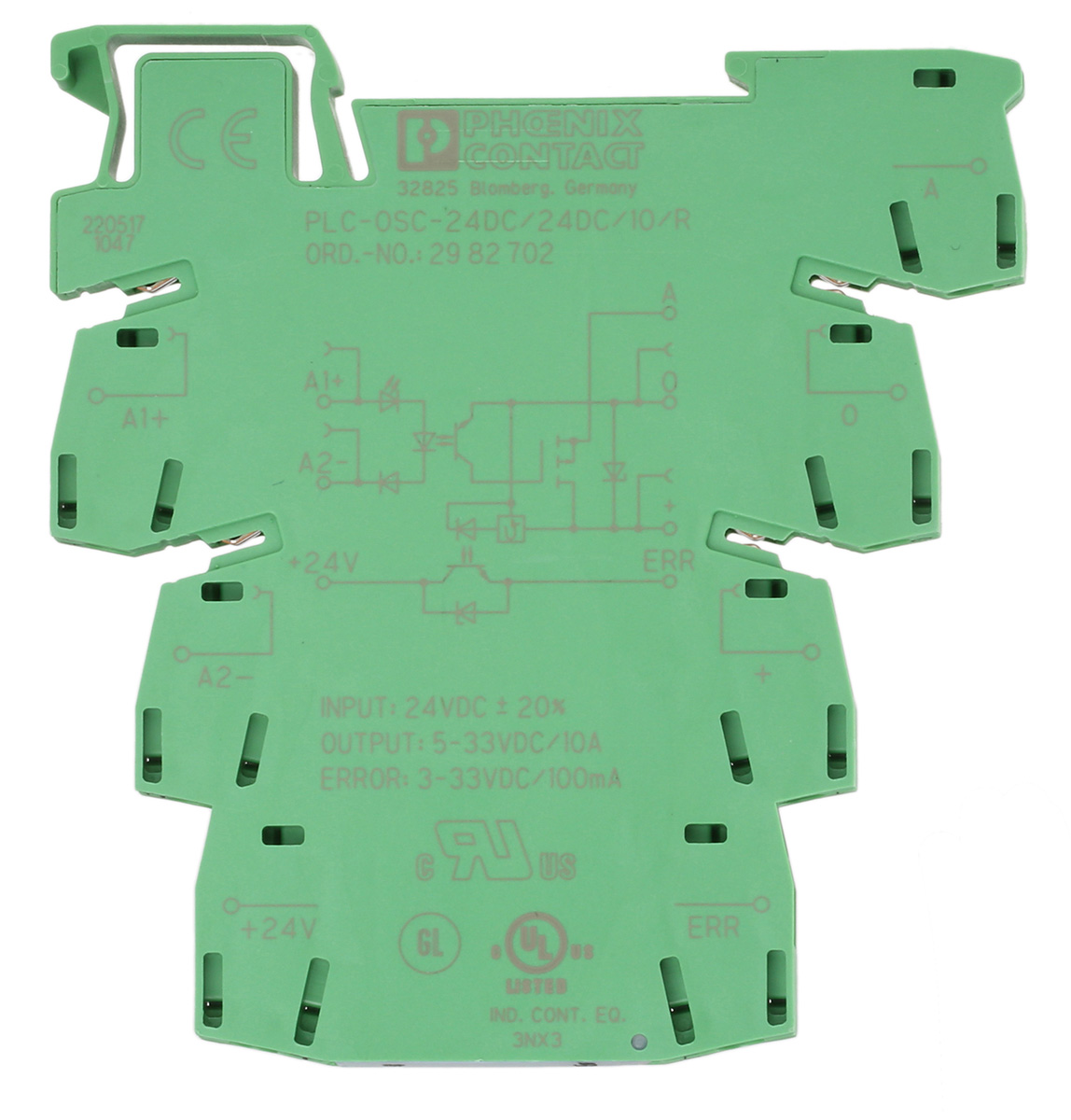

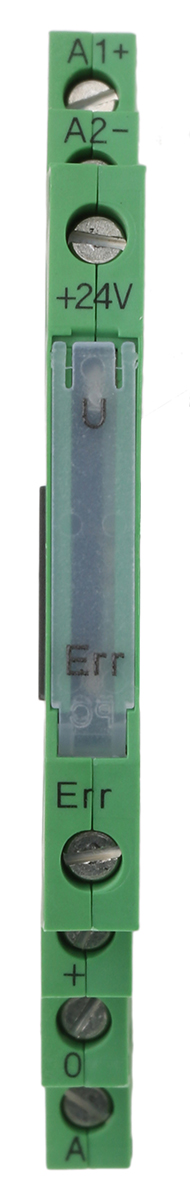

PLC-OSC- 24DC/ 24DC/ 10/R Series Solid State Interface Relay, 10 A Load, DIN Rail Mount

Maximum Load Current:

10 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

300 Vdc

Contact Configuration:

SPST

Minimum Load Voltage:

5 V dc

Terminal Type:

Screw

Input Current:

3mA

Depth:

6.5mm

Series:

PLC-OSC- 24DC/ 24DC/ 10/R

Height:

80mm

Length:

86mm

Dimensions:

86 x 80 x 6.5mm

Minimum Operating Temperature:

-25°C

Maximum Operating Temperature:

+60°C

Operating Temperature Range:

-25 → +60°C

Manufacturer Part No.:

2982702

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=39493&DisplayLogo=False
