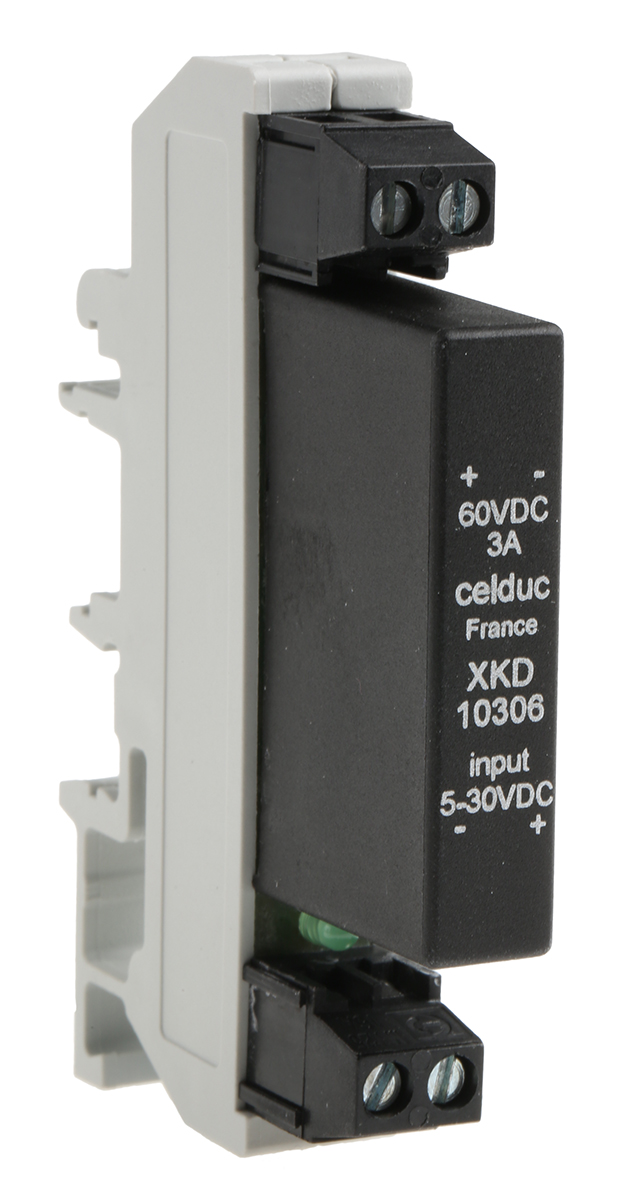

XK Series Solid State Interface Relay, 30 V Control, 3 A Load, DIN Rail Mount

Maximum Control Voltage:

30 V

Maximum Load Current:

3 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

60 V

Minimum Control Voltage:

5 V

Control Voltage Range:

5 → 30 V dc

Switching Type:

DC

Load Voltage Range:

2 → 60V

Terminal Type:

Screw

Number of Poles:

1

Series:

XK

Output Device:

Bipolar Transistor

Minimum Load Current:

3 mA

Depth:

17.2mm

Height:

53mm

Length:

76.4mm

Special Features:

Control Visualization By LED.

Standards Met:

CE, EAC

Maximum Turn On Time:

20ms

Off State Leakage Current:

0.3mA rms

Range:

XK

Maximum Operating Temperature:

+90°C

Dimensions:

76.4 x 17.2 x 53mm

Minimum Operating Temperature:

-40°C

Manufacturer Part No.:

XKD10306

Operating Temperature Range:

-40 → +90°C
