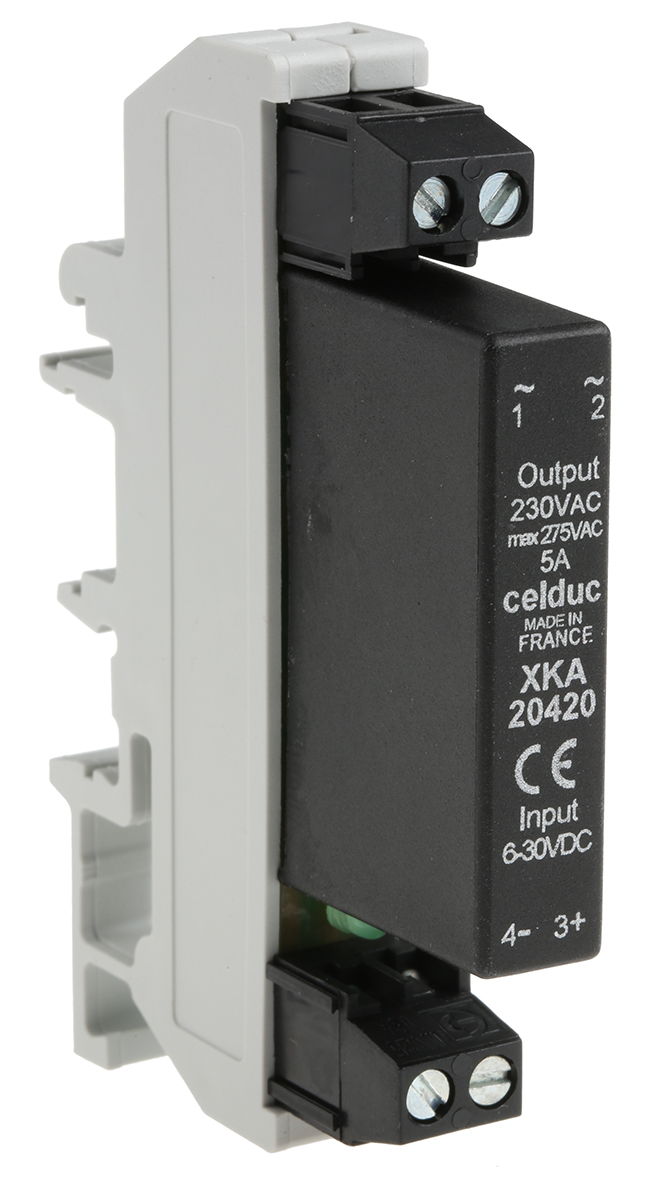

XK Series Solid State Interface Relay, 30 V Control, 5 A Load, DIN Rail Mount

Maximum Control Voltage:

30 V

Maximum Load Current:

5 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

275 V rms

Minimum Control Voltage:

6 V

Control Voltage Range:

6 → 30 V

Switching Type:

Zero Cross

Load Voltage Range:

12 → 275V

Terminal Type:

Screw

Number of Poles:

1

Length:

76.4mm

Series:

XK

Height:

53mm

Output Device:

Triac

Depth:

17.2mm

Minimum Load Current:

5 mA

Range:

XK

Special Features:

Control Visualization By LED.

Minimum Operating Temperature:

-40°C

Maximum Turn On Time:

10ms

Standards Met:

CE, EAC

Off State Leakage Current:

0.3mA rms

Dimensions:

76.4 x 17.2 x 53mm

Maximum Operating Temperature:

+80°C

Manufacturer Part No.:

XKA20420

Operating Temperature Range:

-40 → +80°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=152005&DisplayLogo=False
