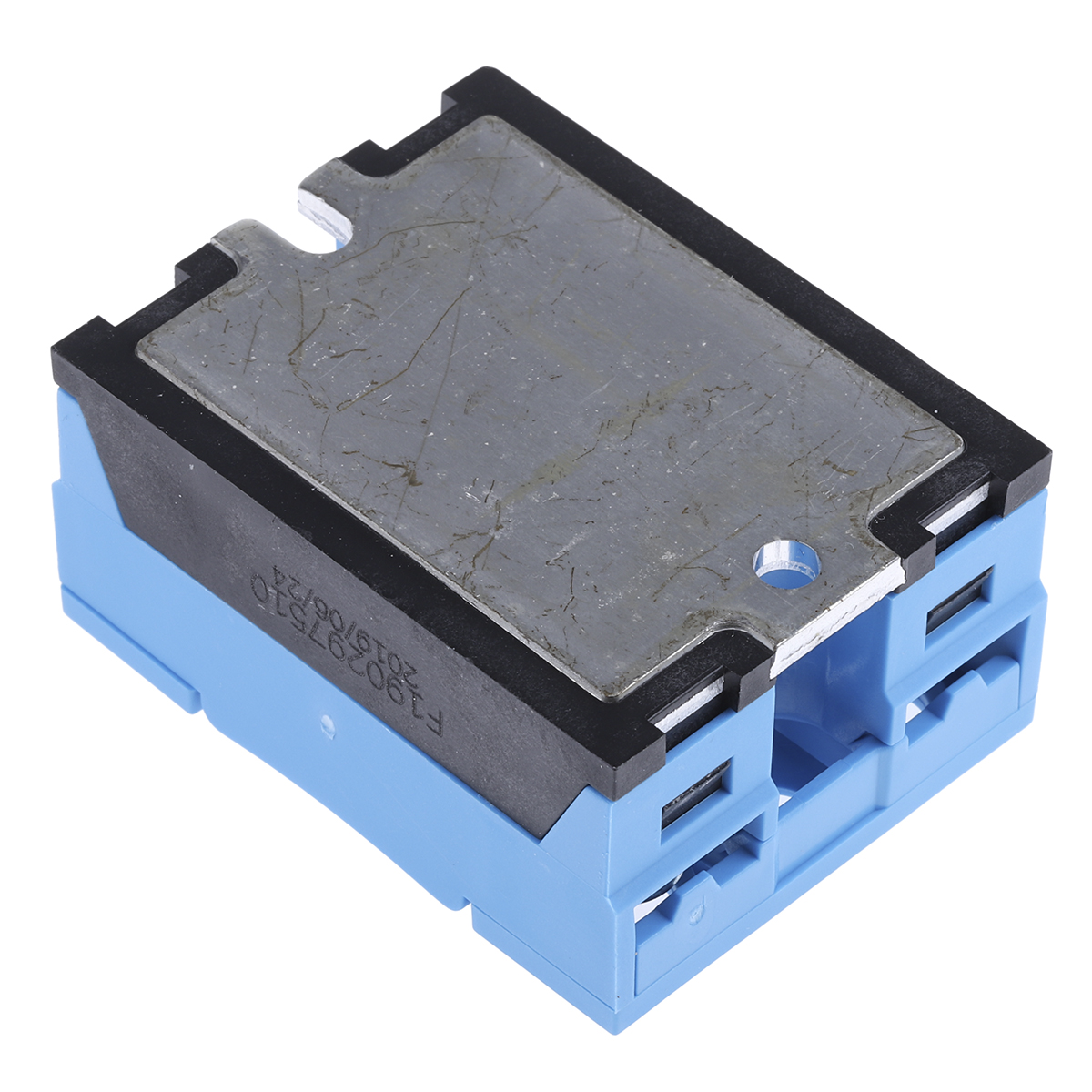

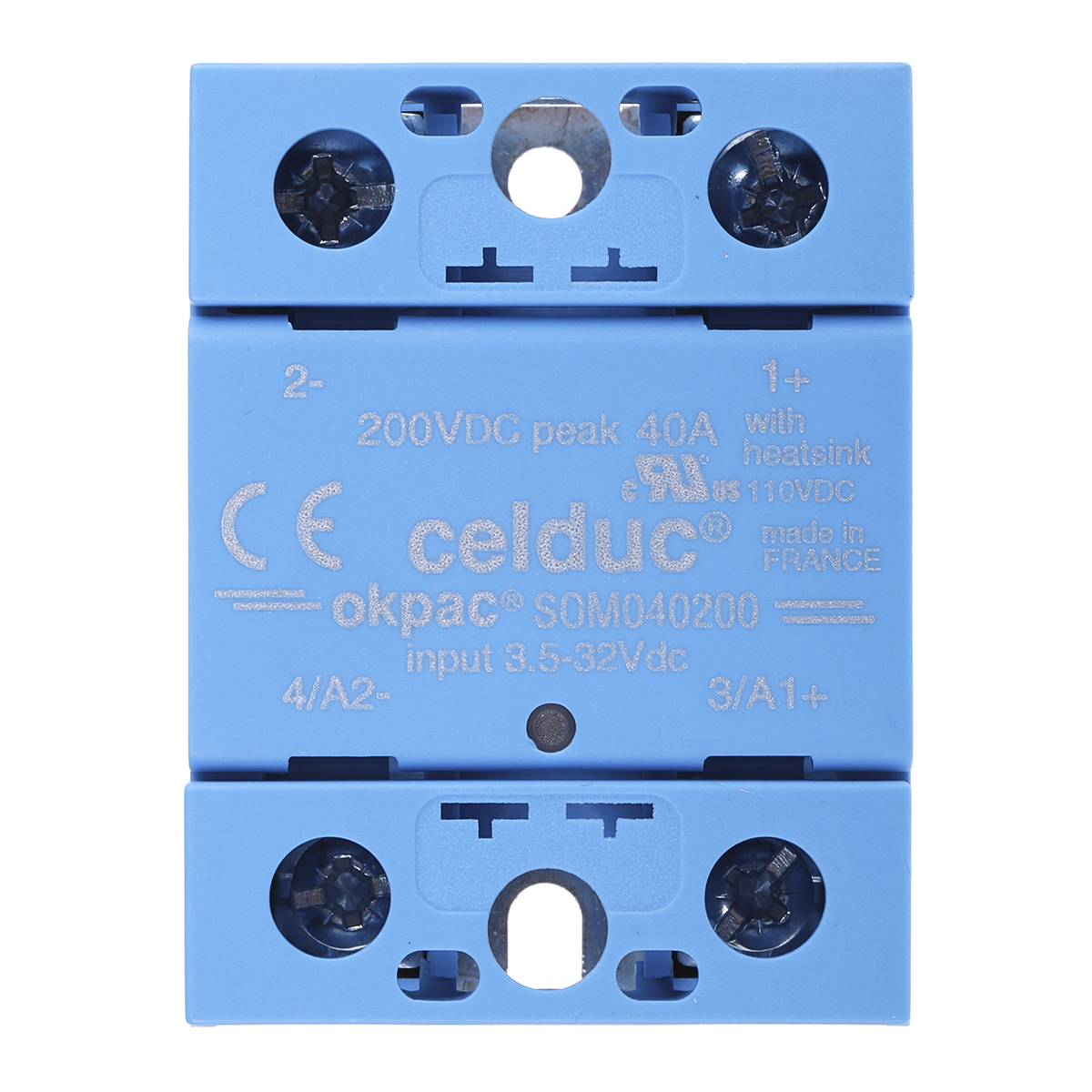

SOM Series Solid State Relay, 40 A Load, Panel Mount, 110 V dc Load, 32 V dc Control

Maximum Load Current:

40 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

110 V dc

Minimum Load Voltage:

5 V dc

Maximum Control Voltage:

32 V dc

Minimum Control Voltage:

3.5 V dc

Switching Type:

DC

Control Voltage Range:

3.5 → 32 V dc

Range:

SOM

Number of Poles:

1

Terminal Type:

Screw

Output Device:

MOSFET

Relay Type:

DC

Load Voltage Range:

5 → 110V dc

Series:

SOM

Dimensions:

45 x 58.5 x 30mm

Minimum Operating Temperature:

-25°C

Capacitance:

1.1nF

Maximum Operating Temperature:

+90°C

Length:

45mm

Height:

30mm

Depth:

58.5mm

Special Features:

Touch protected housing IP20

Standards Met:

IEC60947-1

Operating Temperature Range:

-25 → +90°C
