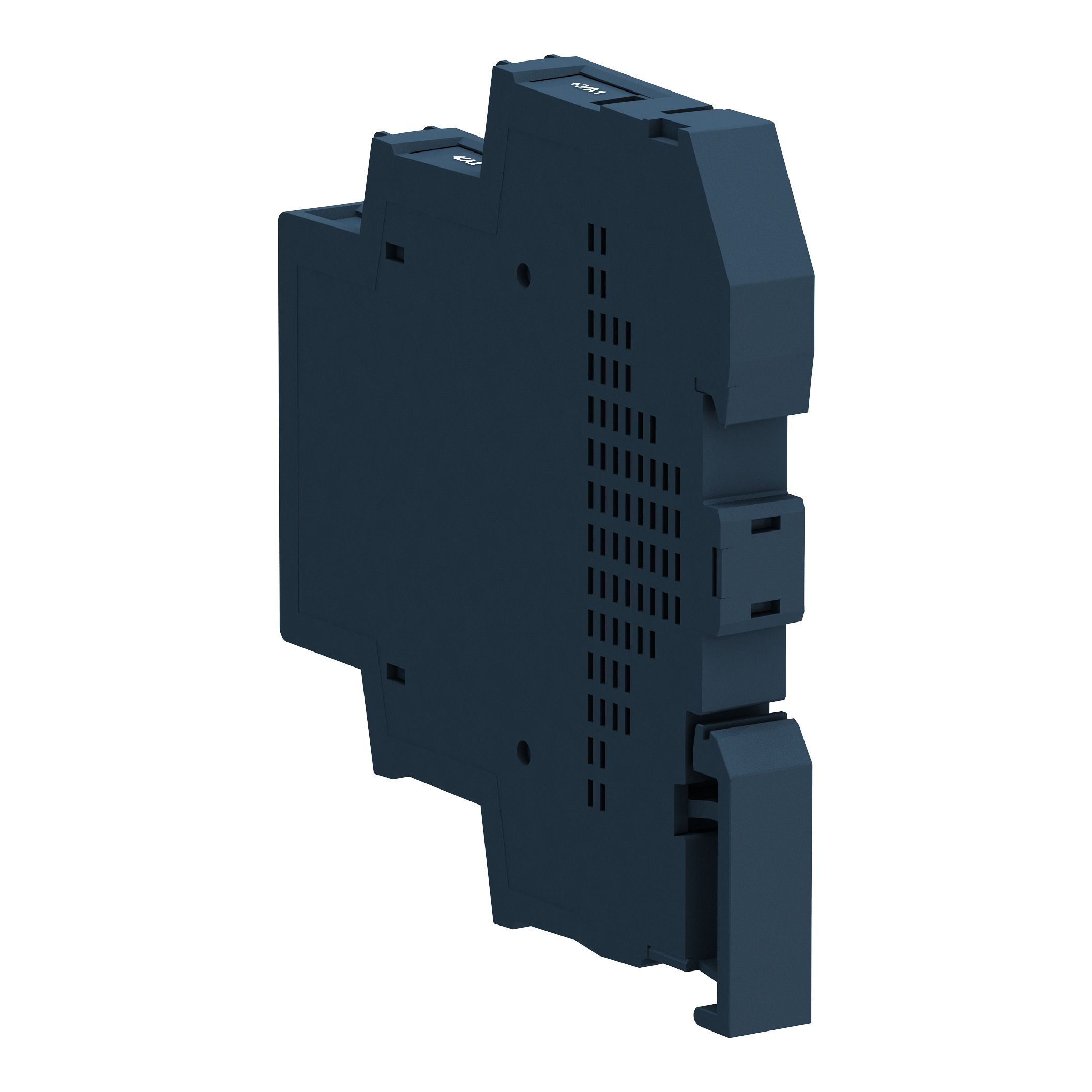

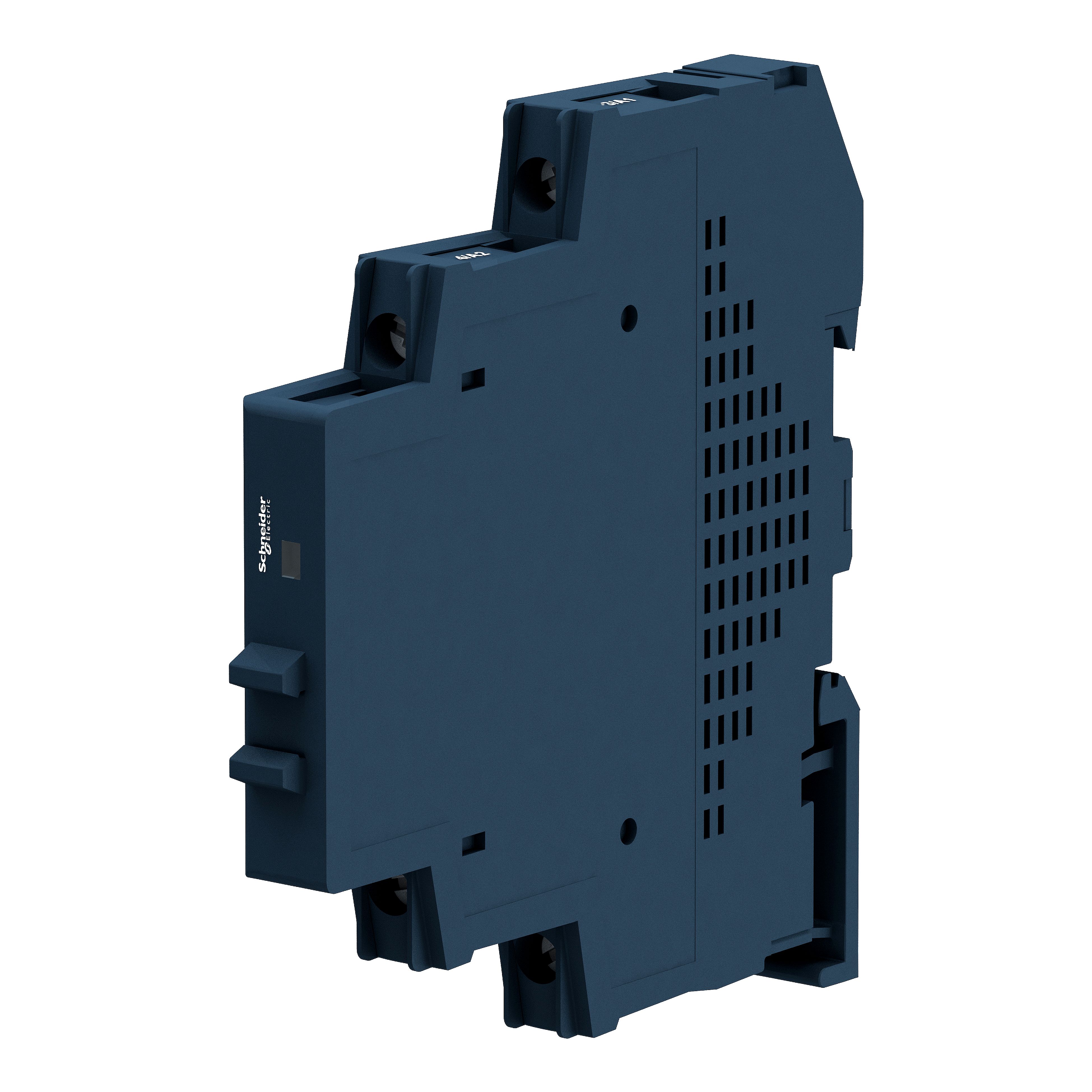

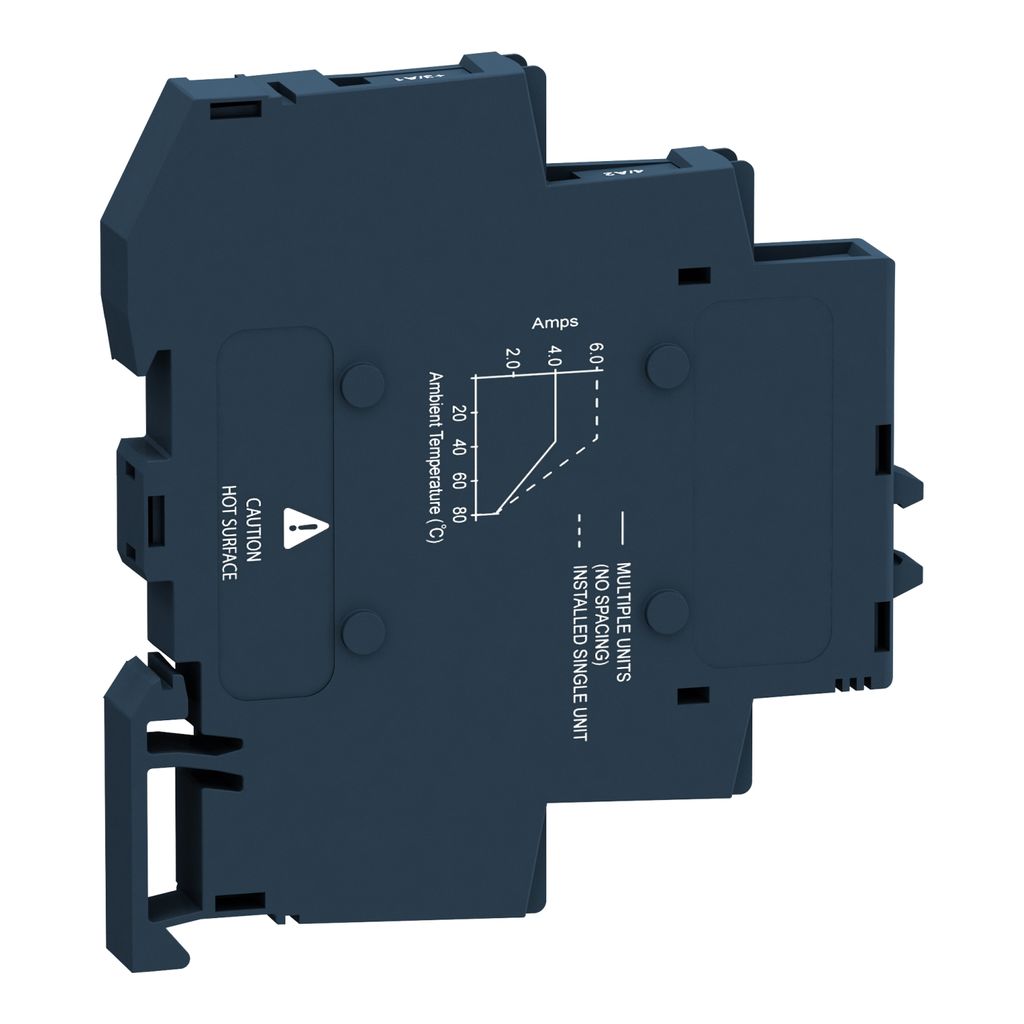

Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

Maximum Load Current:

6 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

280 V ac

Minimum Load Voltage:

24 V ac

Minimum Control Voltage:

4 V dc

Maximum Control Voltage:

32 V dc

Switching Type:

Zero Cross

Control Voltage Range:

4 → 32 V dc

Minimum Load Current:

0.00015 A

Number of Poles:

1

Contact Configuration:

SPST

Terminal Type:

Screw

Output Device:

SCR

Relay Type:

Single Channel Relay

Maximum Turn On Time:

1/2 cycle

Series:

Harmony Relay

Load Voltage Range:

24 → 280V ac

Dimensions:

11.02 x 83.7 x 87.66mm

Better World Verification:

Green Premium

Better World Product:

Yes

Depth:

83.7mm

Capacitance:

10pF

Standards Met:

CE, CSA, UL

Special Features:

Integrated Heat Sinks for Effective Thermal Management & Space Savings

Operating Temperature Range:

-30 → +80°C

Length:

11.02mm

Off State Leakage Current:

0.1 mA

Height:

87.7mm
