Zelio SSP1 Thermal Pad Input Solid State Relays The new Zelio SSP1 relays offer a complete range of innovative, smart diagnostic features and reliable solid state relays. This range of solid state relays, with their telescopic screw terminal are safe and reliable plus the smart diagnostic feature which has a signal alarm output allowing you to troubleshoot, therefore minimizing any downtime and the impact of a machine break down. The SSP1 solid state relays are a complete solution of 1 and 3 phase, slim, modular and DIN rail panel mount with a solid state switching solution. With simple easy product selection and easy to understand product information the SSP1 range provides you an enhanced product and a much improved user experience. Benefits: Thermal Pad Input Zero voltage switching 1 Phase Simpler approach giving higher efficiency Maintenance free Full electronic unlimited lifespan High switching frequency Fast and precise control Silent and reliable switching No moving parts Sustainable in harsh environments Resistant to shock and vibration Free from contact contaminations Applications: Suitable for a wide range of applications including: Industrial machines Packaging machines Injection moulding HVAC Machines, building and medical equipment Textile machines Zero Voltage Relays Note Temperature can affect current rating; please consult the data sheet for potential derating.

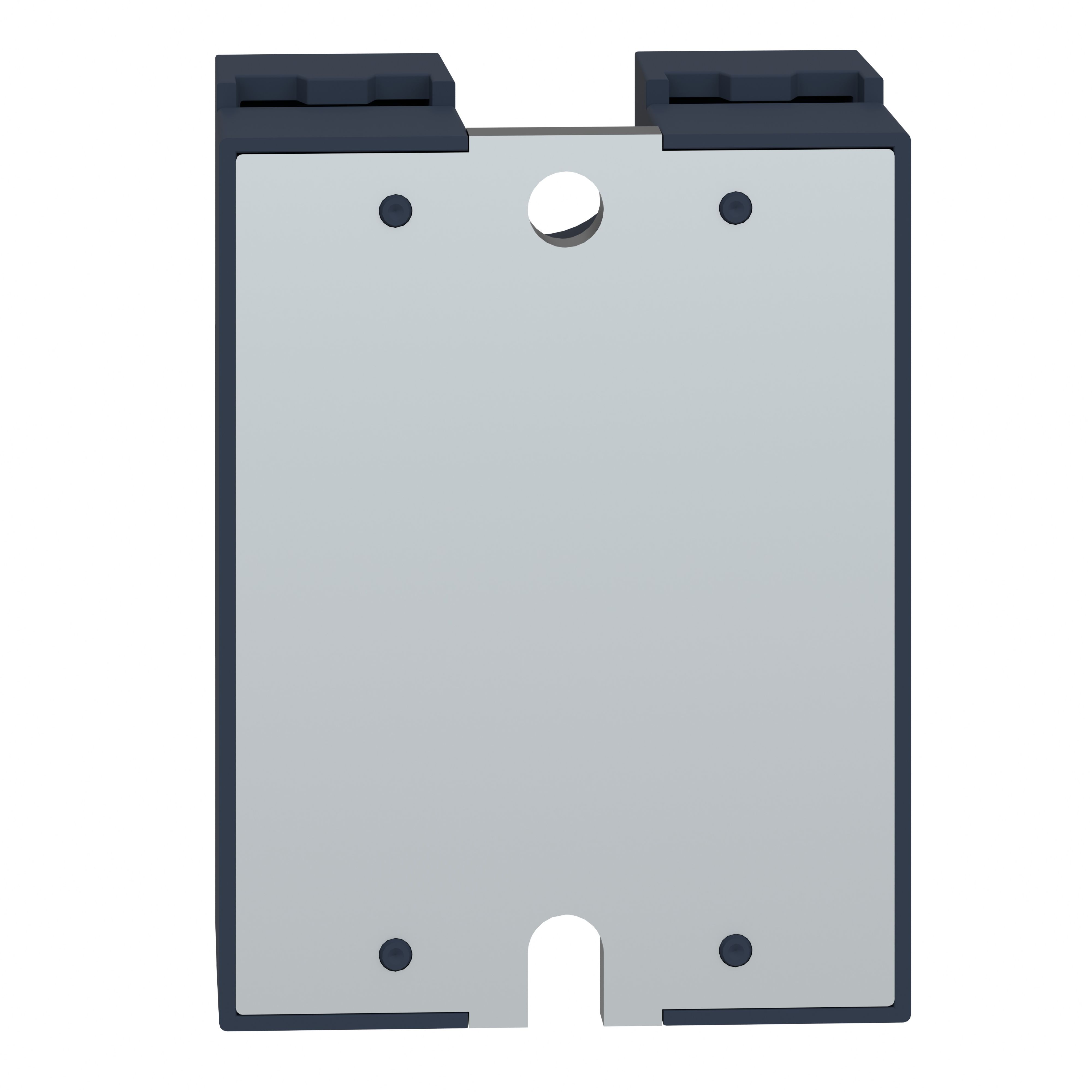

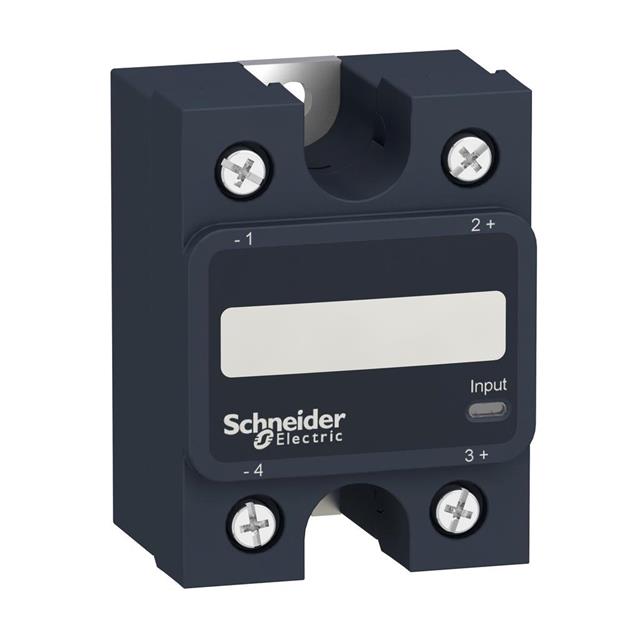

Schneider Electric 10 A SPNO Solid State Relay, Zero Voltage, Panel Mount SCR, 300 V ac Maximum Load

Manufacturer:
Manufacturer Part No:
SSP1A110BDT
Enrgtech Part No:
ET13810981
Warranty:
Manufacturer
£ 58.40
Checking for live stock
Dimensions:
44.45 x 34.29 x 58.89mm
Relay Type:
Solid State Relay
Capacitance:
10pF
Maximum Load Voltage:
300 V ac
Output Device:
SCR
Load Voltage Range:
24 → 300V ac
Standards Met:
CE, CSA, EAC, EN/IEC, REACH, UL
Minimum Control Voltage:
3 V dc
Off State Leakage Current:
<= 0.3 mA
Switching Type:
Zero Voltage
Terminal Type:
Screw
Control Voltage Range:
3 → 32 V dc
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
0.15 A
Contact Configuration:
SPST
Length:
44.5mm
Maximum Turn On Time:
1/2 cycle + 1 ms
Special Features:
Green LED for Input Visualization
Maximum Load Current:
10 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Panel Mount
Series:
Harmony Relay
Depth:
34.3mm
Height:
58.9mm
Maximum Control Voltage:
32 V dc
Number of Poles:
1
Minimum Load Voltage:
24 V ac
Qualification:
-
HTSUS:
8536.49.0080
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 80°C
Approval Agency:
CE, CSA, EAC, UL
Package / Case:
Module
Voltage - Input:
3 ~ 32VDC
Load Current:
10 A
REACH Status:
REACH Affected
Output Type:
AC, Zero Cross
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
standardLeadTime:
3 Weeks
Mounting Type:
Chassis Mount
Grade:
-
Series:
Harmony
Voltage - Load:
24 V ~ 300 V
Packaging:
Box
ECCN:
EAR99
