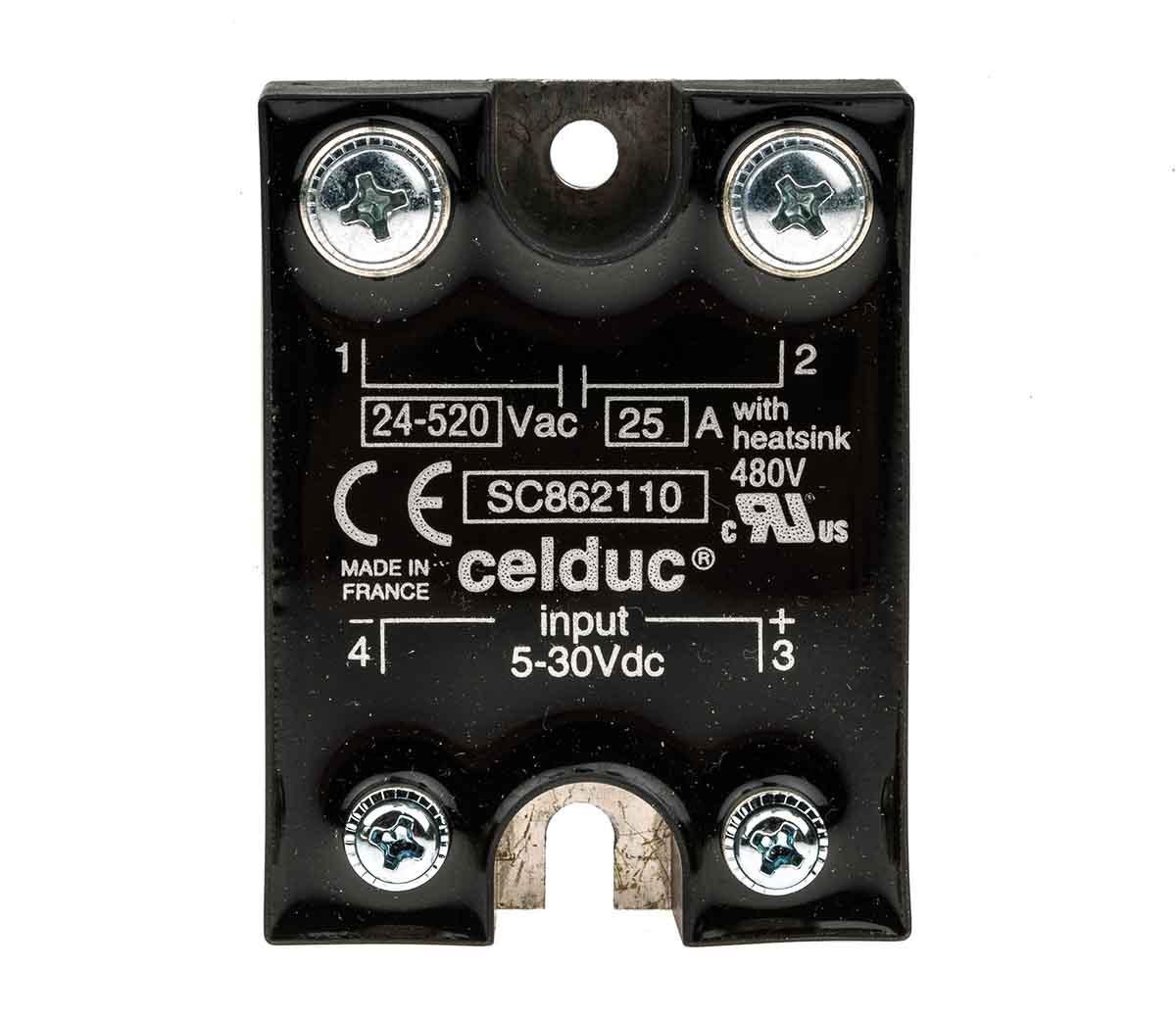

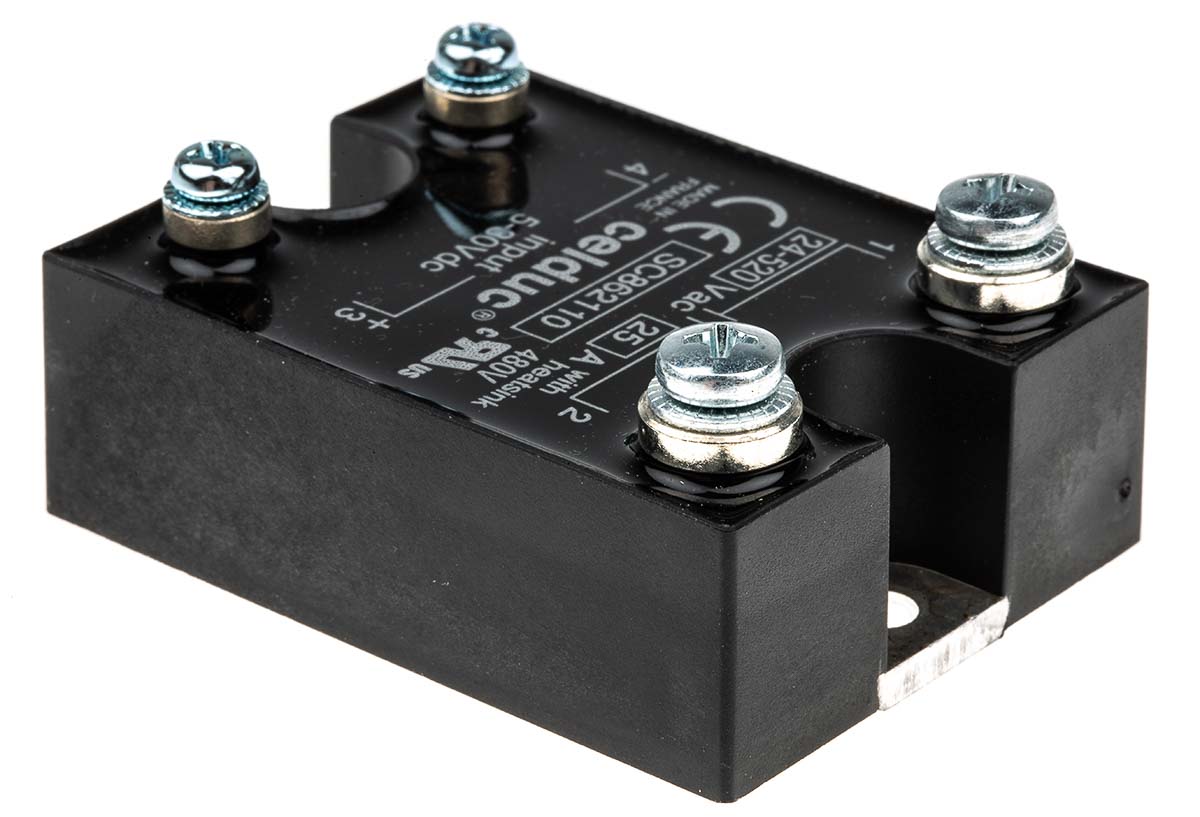

SC8 Series Solid State Relay, 25 A Load, Panel Mount, 400 V rms Load, 30 V dc Control

Maximum Load Current:

25 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

400 V rms

Minimum Load Voltage:

24 V ac

Maximum Control Voltage:

30 V dc

Minimum Control Voltage:

5 V dc

Switching Type:

Zero Cross

Control Voltage Range:

5 → 30 V dc

Range:

Previous Generation

Minimum Load Current:

5 mA

Number of Poles:

1

Terminal Type:

Screw

Output Device:

Triac

Relay Type:

Single Phase Solid State Relay

Load Voltage Range:

24 → 520V ac

Maximum Turn On Time:

10ms

Series:

SC8

Dimensions:

58.2 x 44.5 x 27mm

Height:

27mm

Off State Leakage Current:

3 mA

Length:

58.2mm

Operating Temperature Range:

-40 → +100°C

Standards Met:

CE, cURus

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+100°C

Depth:

44.5mm
