Phase Angle and Frequency Burst Regulators
SG5 relays with proportional control have an analogue input isolated from the mains allowing a proportional variation of the operating duty cycle at this input through the generation of frequency bursts.
Applications: heating regulation.- Ve = 0 V → t/T = 0%
- Ve = 5 V → t/T = 50%
- Ve = 10 V → t/T = 100%.
The SG4 models have an analogue input isolated from the mains allowing a proportional variation at this input of the switching instant on the sine wave.
Applications: motor speed variation, dimmable lighting.
Specific documentation available on request.
Applications: heating regulation.- Ve = 0 V → t/T = 0%
- Ve = 5 V → t/T = 50%
- Ve = 10 V → t/T = 100%.
The SG4 models have an analogue input isolated from the mains allowing a proportional variation at this input of the switching instant on the sine wave.
Applications: motor speed variation, dimmable lighting.
Specific documentation available on request.

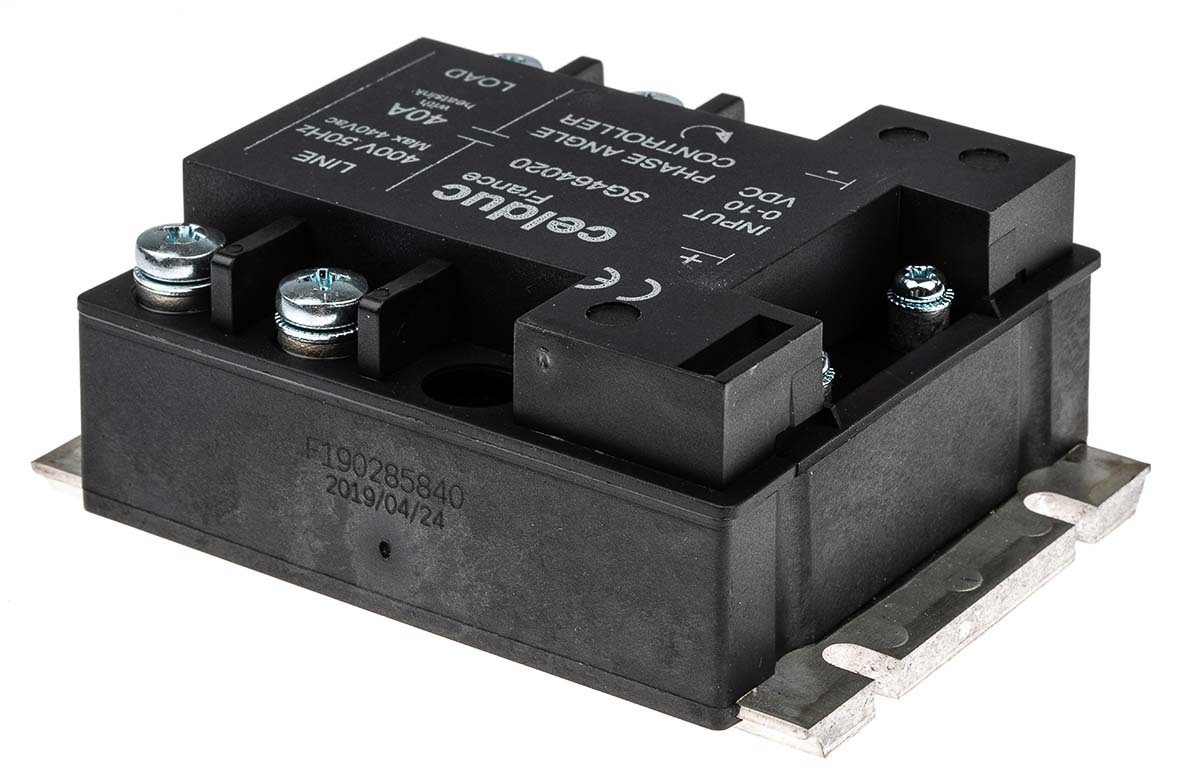

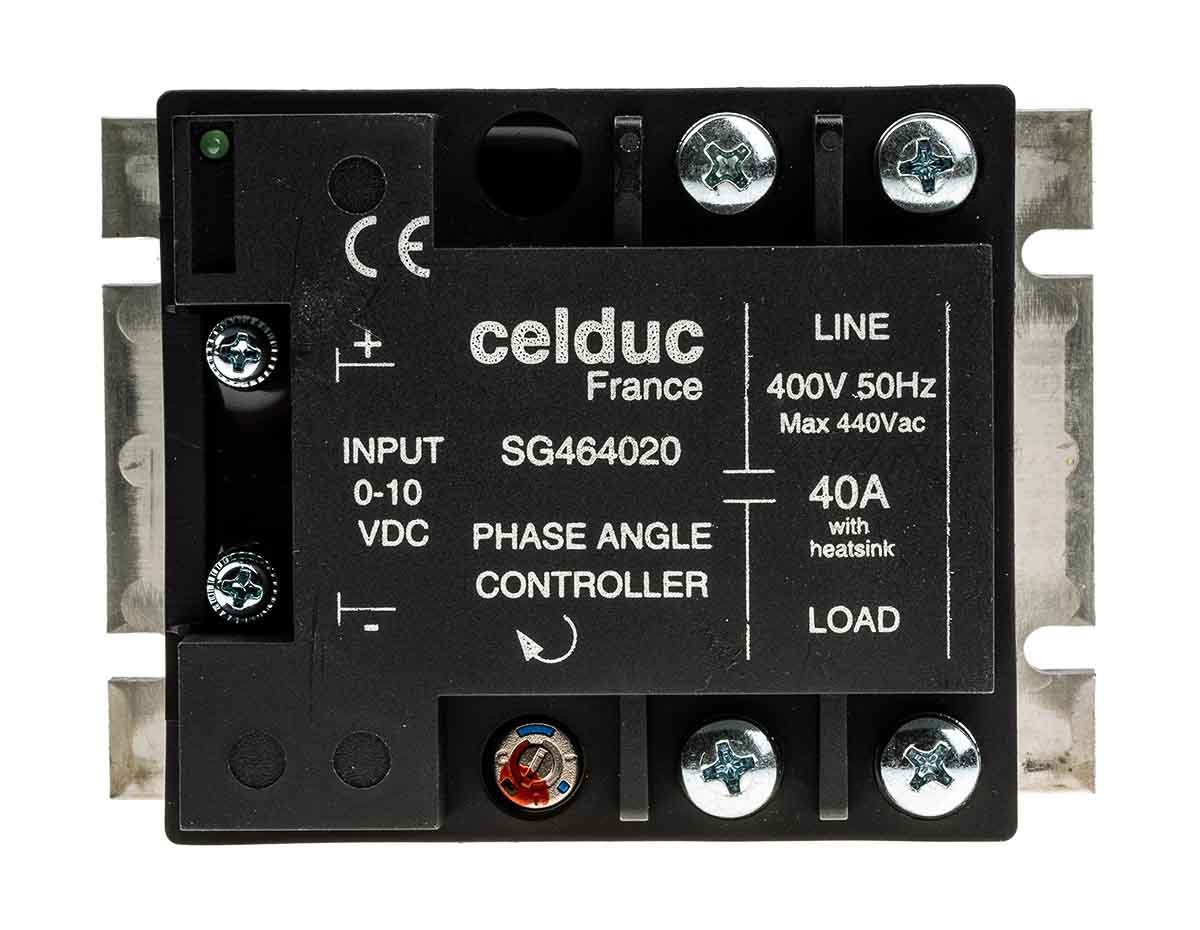

SG4 Series Solid State Relay, 40 A Load, Panel Mount, 460 V rms Load, 10 V dc Control
Manufacturer:
Celduc
Manufacturer Part No:
SG464020
Enrgtech Part No:
ET13834460
Warranty:
Manufacturer
£ 251.71
Checking for live stock
Maximum Load Current:
40 A
Mounting Type:
Panel Mount
Maximum Load Voltage:
460 V rms
Minimum Load Voltage:
200 V ac
Maximum Control Voltage:
10 V dc
Minimum Control Voltage:
0 V
Switching Type:
Phase Angle
Control Voltage Range:
0 → 10 V dc
Range:
SG4
Minimum Load Current:
10 mA
Number of Poles:
1
Terminal Type:
Screw
