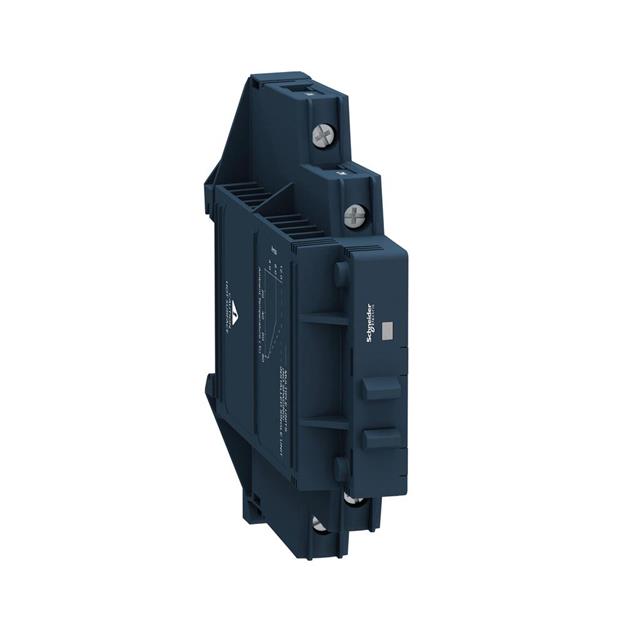

ssm1a112f7 Schneider Electric 12 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 280 V ac Maximum Load
ssm1a112f7 Schneider Electric 12 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 280 V ac Maximum Load
ssm1a112f7 Schneider Electric 12 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 280 V ac Maximum Load

Zelio SSM Solid State Modular Relays Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSM series DIN Rail mount relays offer a modular IP20 housing design with built in heatsink for optimised operating conditions. Easy maintenance IP20 High switching frequency Resistance to shock, vibration and contamination Long life span

Schneider Electric 12 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 280 V ac Maximum Load

Manufacturer:
Schneider Electric
Manufacturer Part No:
SSM1A112F7
Enrgtech Part No:
ET13838435
Warranty:
Manufacturer
£ 76.58
Checking for live stock
Dimensions:
18.29 x 83.69 x 87.66mm
Relay Type:
Single Channel Relay
Capacitance:
10pF
Maximum Load Voltage:
280 V ac
Output Device:
SCR
Load Voltage Range:
24 → 280V ac
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
90 V ac
Off State Leakage Current:
0.1 mA
Switching Type:
AC
Terminal Type:
Screw
Control Voltage Range:
90 → 140 V ac
Operating Temperature Range:
-30 → +80°C
Minimum Load Current:
0.00015 A
Contact Configuration:
SPST
Length:
18.3mm
Maximum Turn On Time:
1/2 cycle + 1 ms
Special Features:
Integrated Heat Sinks for Effective Thermal Management & Space Savings
Maximum Load Current:
12 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Relay
Depth:
83.7mm
Height:
87.7mm
Maximum Control Voltage:
140 V ac
Number of Poles:
1
Minimum Load Voltage:
24 V ac
Qualification:
-
HTSUS:
8536.49.0080
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw Terminal
Operating Temperature:
-30°C ~ 80°C
Approval Agency:
CSA, UL
Package / Case:
Module
Voltage - Input:
90 ~ 140VAC
Load Current:
12 A
Output Type:
AC, Zero Cross
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
standardLeadTime:
3 Weeks
Mounting Type:
DIN Rail
Grade:
-
Series:
Harmony
Voltage - Load:
24 V ~ 280 V
Packaging:
Box
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
Zelio Selection Guide(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
SSM1A112F7 Datasheet(Datasheets)
