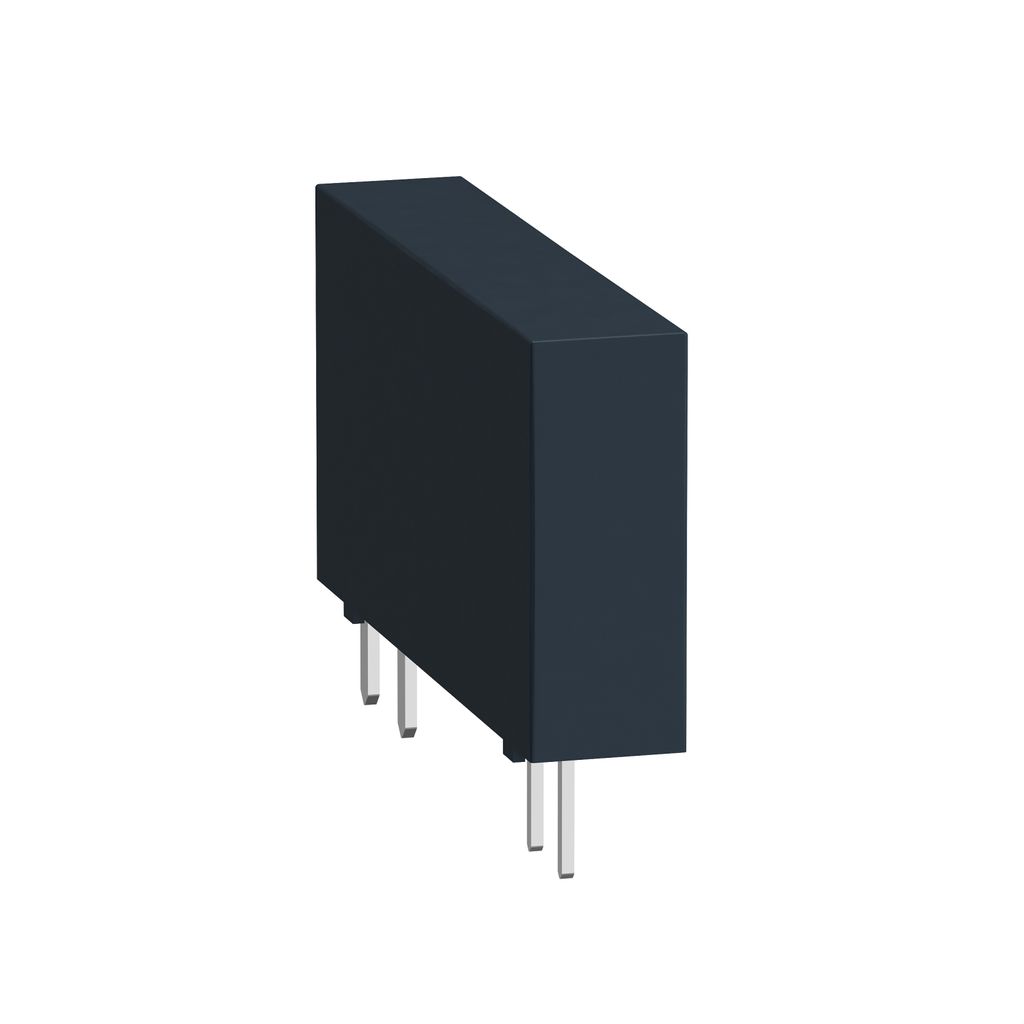

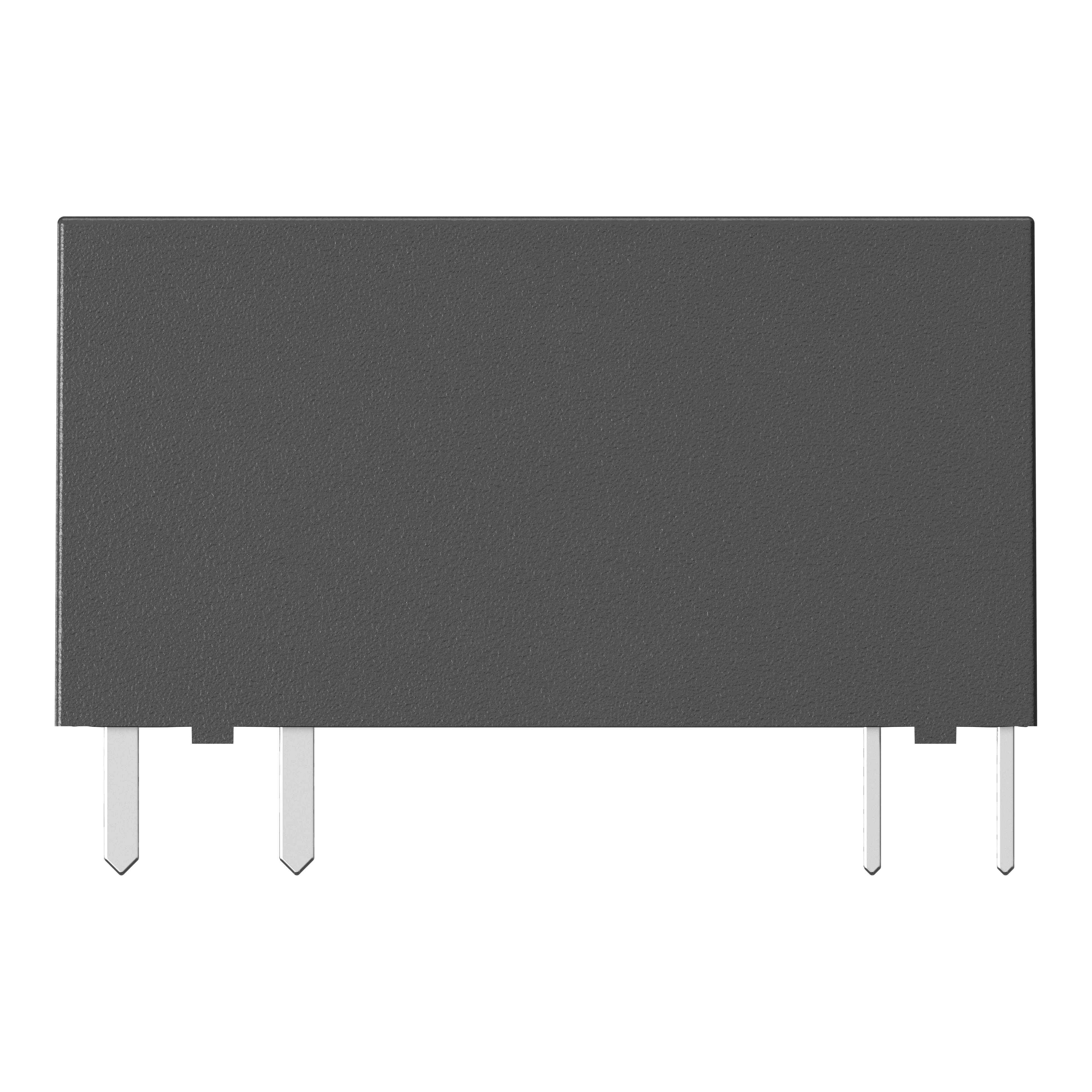

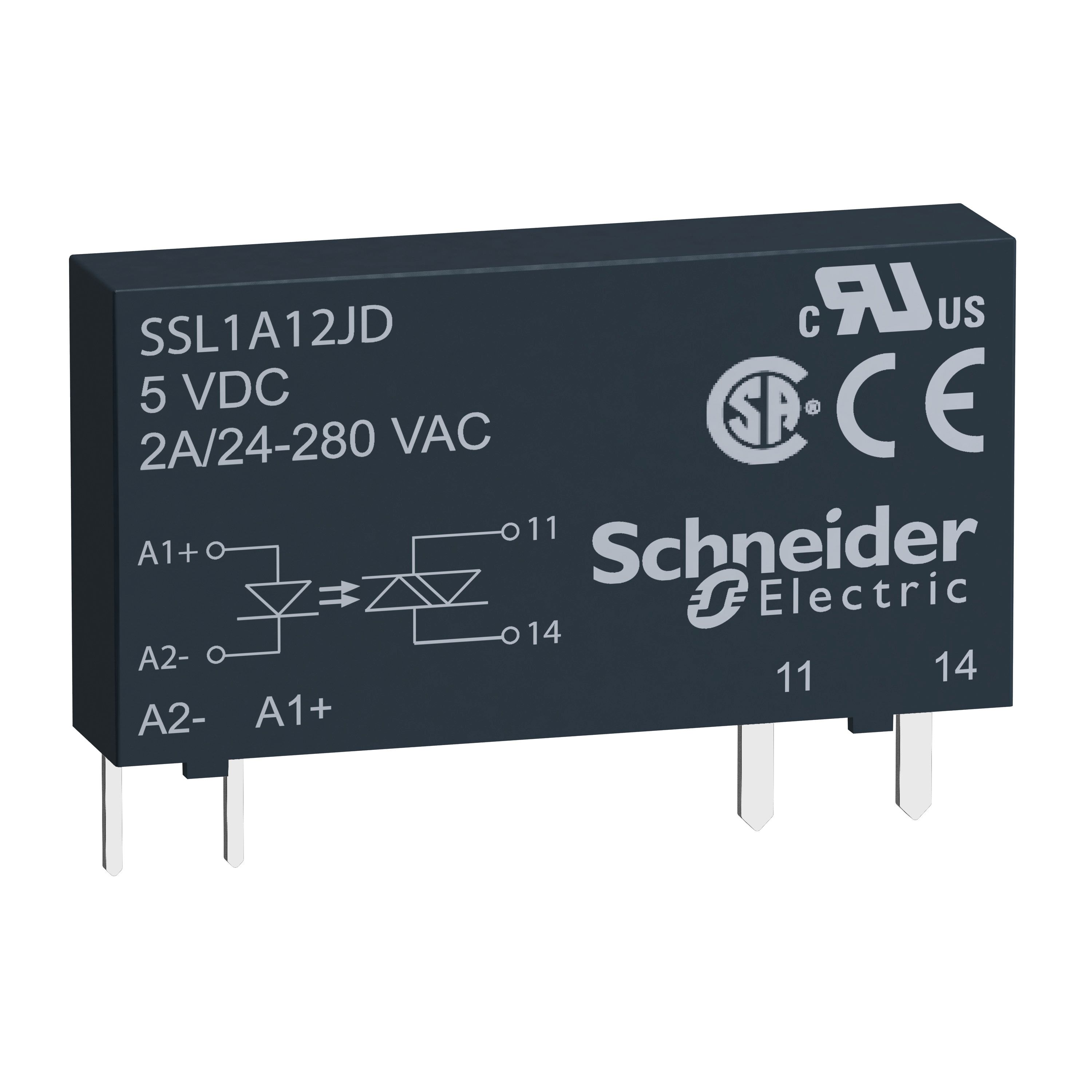

ssl1a12bdr Schneider Electric 2 A SPNO Solid State Relay, Zero Cross, PCB Mount SCR, 280 V ac Maximum Load

Zelio SSL Solid State Slim Relays Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The slim SSL series are available with several input and output configurations for both AC and DC switching applications. Compact size and modular design reduces space and allows easy mounting on the socket. SSL series plug-in type relays can be mounted directly on a PCB or DIN Rail mounted with a socket. DIN Rail sockets are available in screw connector or spring terminal types. Zero voltage switching or Random switching Easy maintenance High switching frequency Resistance to shock, vibration and contamination Long life span

For more information please check the datasheets.

Schneider Electric 2 A SPNO Solid State Relay, Zero Cross, PCB Mount SCR, 280 V ac Maximum Load

Name: Schneider Electric 2 A SPNO Solid State Relay, Zero Cross, PCB Mount SCR, 280 V ac Maximum Load
Brand: Schneider Electric
SKU: ET13843764
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

SSL1A12BDR

Enrgtech Part No:

ET13843764

Warranty:

Manufacturer

£ 29.92

Checking for live stock

Dimensions:

28 x 5 x 15mm

Relay Type:

Single Phase

Capacitance:

1.5pF

Maximum Load Voltage:

280 V ac

Output Device:

SCR

Load Voltage Range:

24 → 280V ac

Standards Met:

CE, CSA, UL

Minimum Control Voltage:

15 V dc

Off State Leakage Current:

4 mA

Switching Type:

Zero Cross

Terminal Type:

PCB Pin

Control Voltage Range:

15 → 30 V dc

Zelio Selection Guide(Technical Reference)

Datasheet_SSL1A12BDR(Technical Reference)

Product Environmental Profile(Technical Reference)
