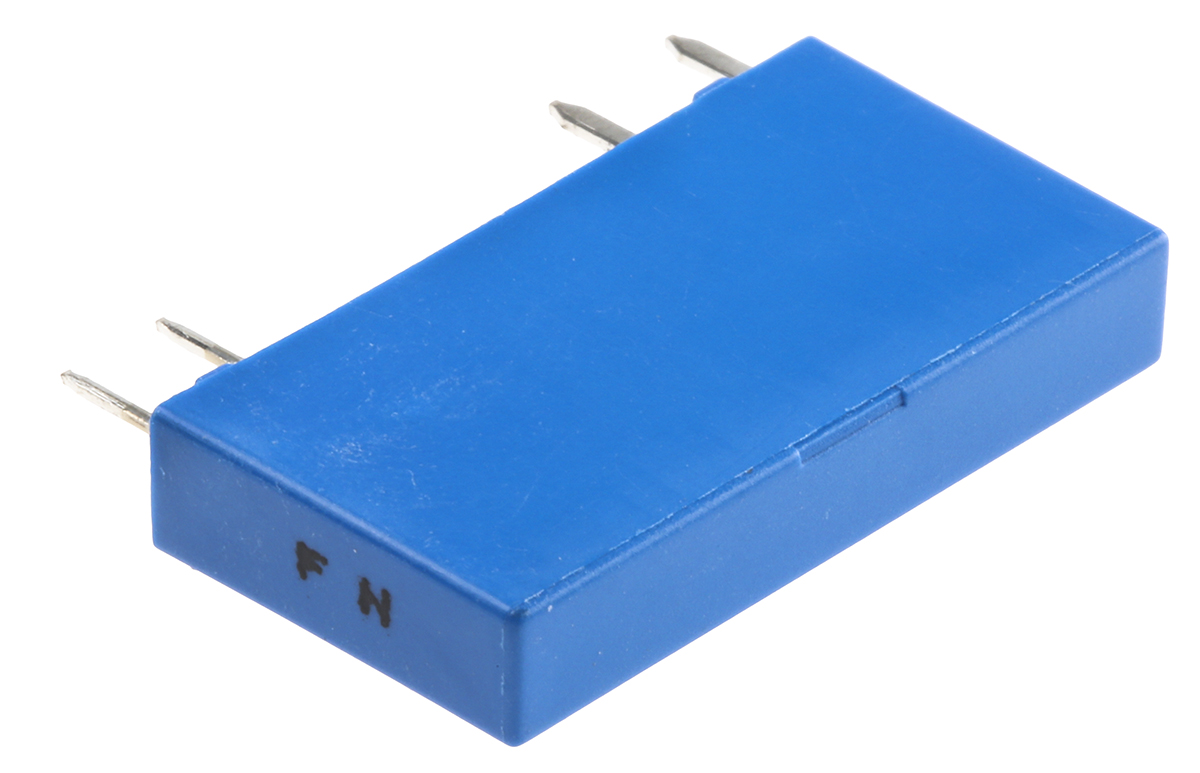

SP-ST-SL Series Solid State Relay, 4 A Load, PCB Mount, 32 V Load, 32 V Control

Maximum Load Current:

4 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

32 V

Maximum Control Voltage:

32 V

Switching Type:

DC

Control Voltage Range:

18 → 32 V dc

Range:

SP-ST-SL

Minimum Load Current:

1 mA

Number of Poles:

1

Terminal Type:

PCB Pin

Output Device:

MOSFET

Relay Type:

DC Interface Relay

Load Voltage Range:

0 → 32V dc

Series:

SP-ST-SL

Dimensions:

28 x 5 x 15mm

Depth:

5mm

Maximum Operating Temperature:

+80°C

Standards Met:

CE, EAC, cURus

Operating Temperature Range:

-20 → +80°C

Length:

28mm

Height:

15mm

Minimum Operating Temperature:

-20°C
