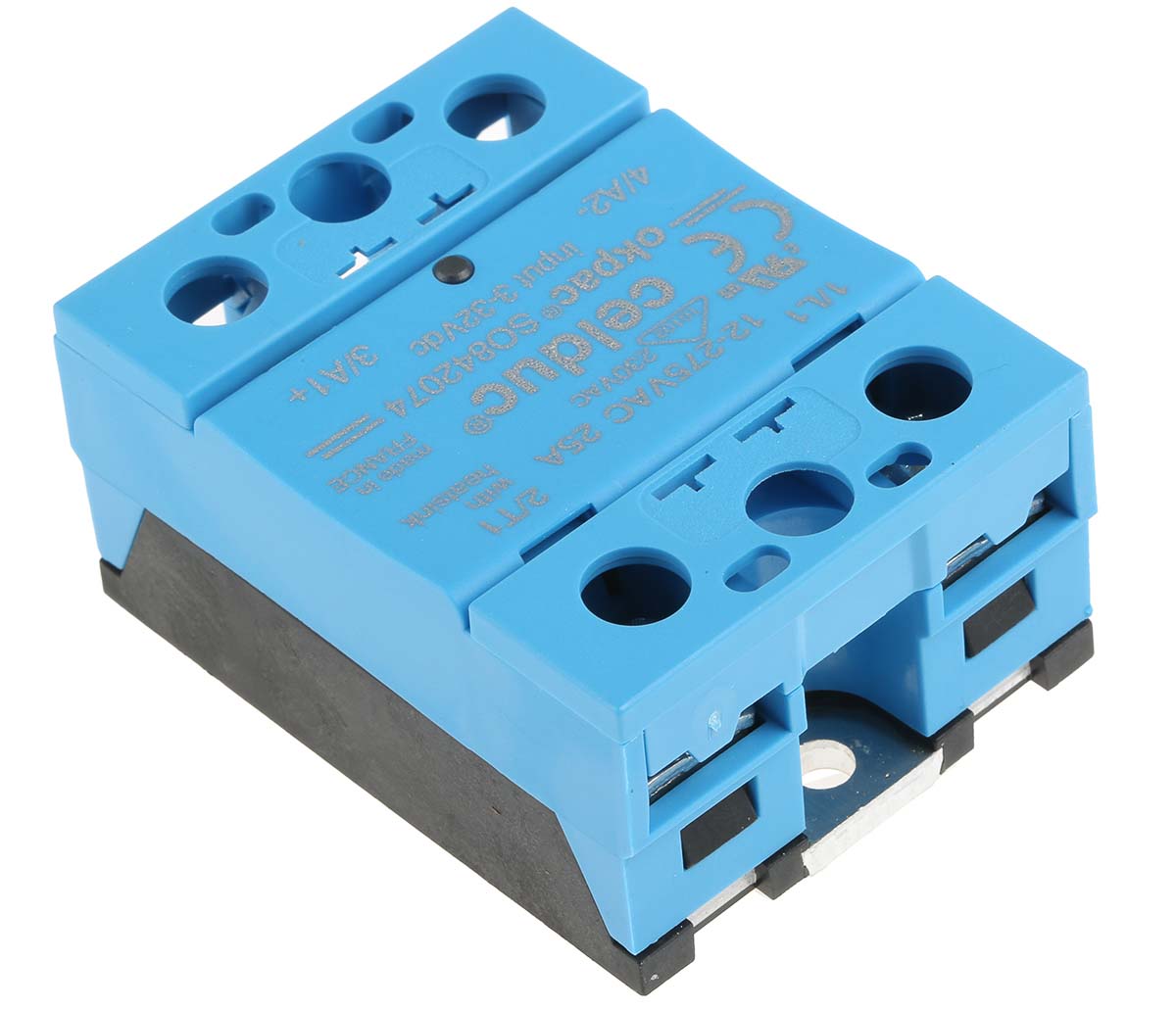

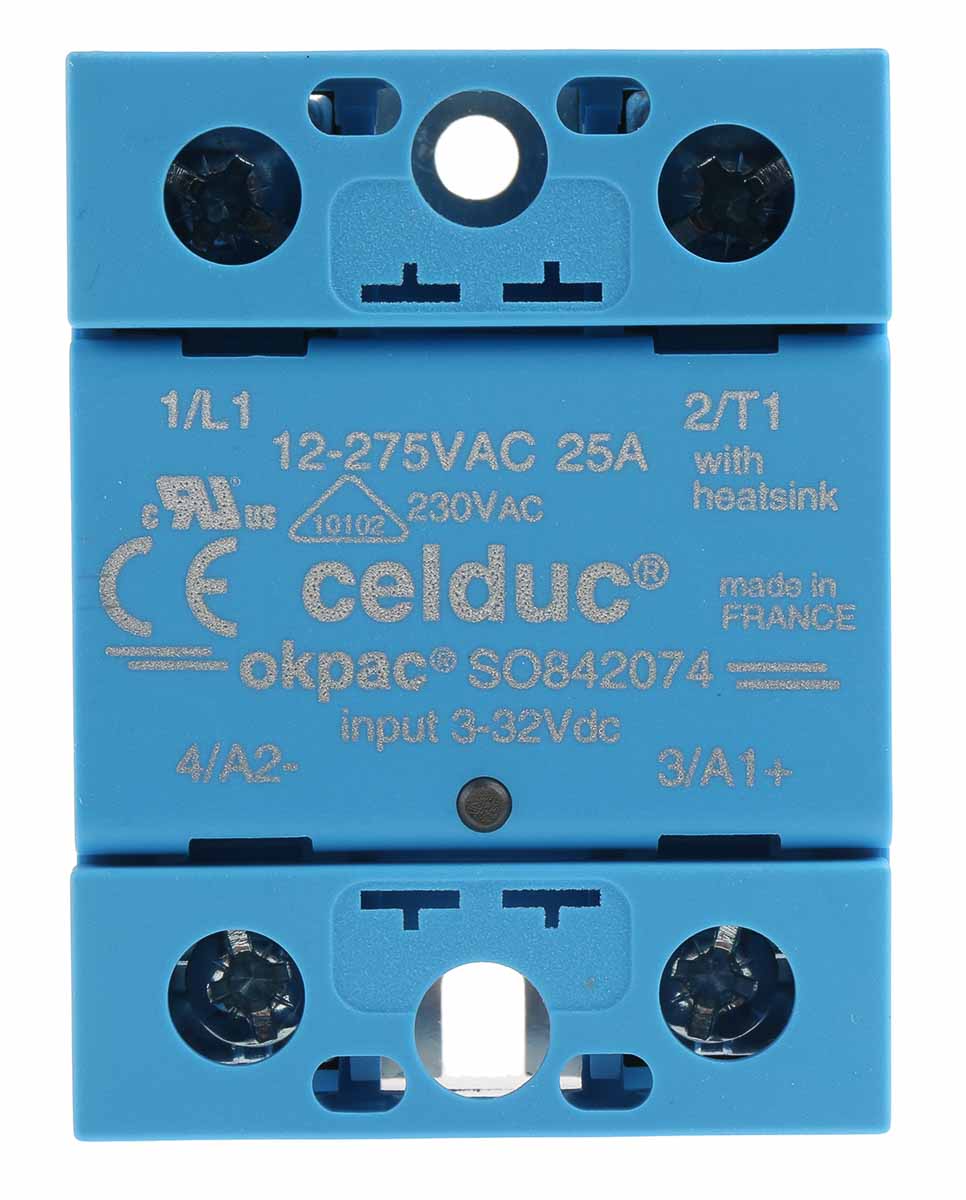

SO8 Series Solid State Relay, 25 A Load, Panel Mount, 275 V rms Load, 32 V Control

Maximum Load Current:

25 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

275 V rms

Minimum Load Voltage:

12 V ac

Minimum Control Voltage:

3 V dc

Maximum Control Voltage:

32 V

Switching Type:

Zero Cross

Control Voltage Range:

3 → 32 V dc

Range:

okpac

Minimum Load Current:

5 mA

Number of Poles:

1

Terminal Type:

Screw

Output Device:

Triac

Relay Type:

Single Phase Solid State Relay

Maximum Turn On Time:

10ms

Load Voltage Range:

12 → 275V ac

Series:

SO8

Dimensions:

58.5 x 45 x 30mm

Operating Temperature Range:

-55 → +100°C

Depth:

45mm

Maximum Operating Temperature:

+100°C

Minimum Operating Temperature:

-55°C

Standards Met:

CE, VDE, EAC, cURus

Height:

30mm

Length:

58.5mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=152036&DisplayLogo=False
