Single-phase solid state relays, SO8 series
Synchronous solid state relay suited to most loads.
Voltage protection for input (transil) as well as output (VDR) for high immunity to interference.
Wide control range: 3 → 32 Vdc with regulated control current.
Green LED input display.
Solid state relays must be mounted on a heatsink.
Voltage protection for input (transil) as well as output (VDR) for high immunity to interference.
Wide control range: 3 → 32 Vdc with regulated control current.
Green LED input display.
Solid state relays must be mounted on a heatsink.

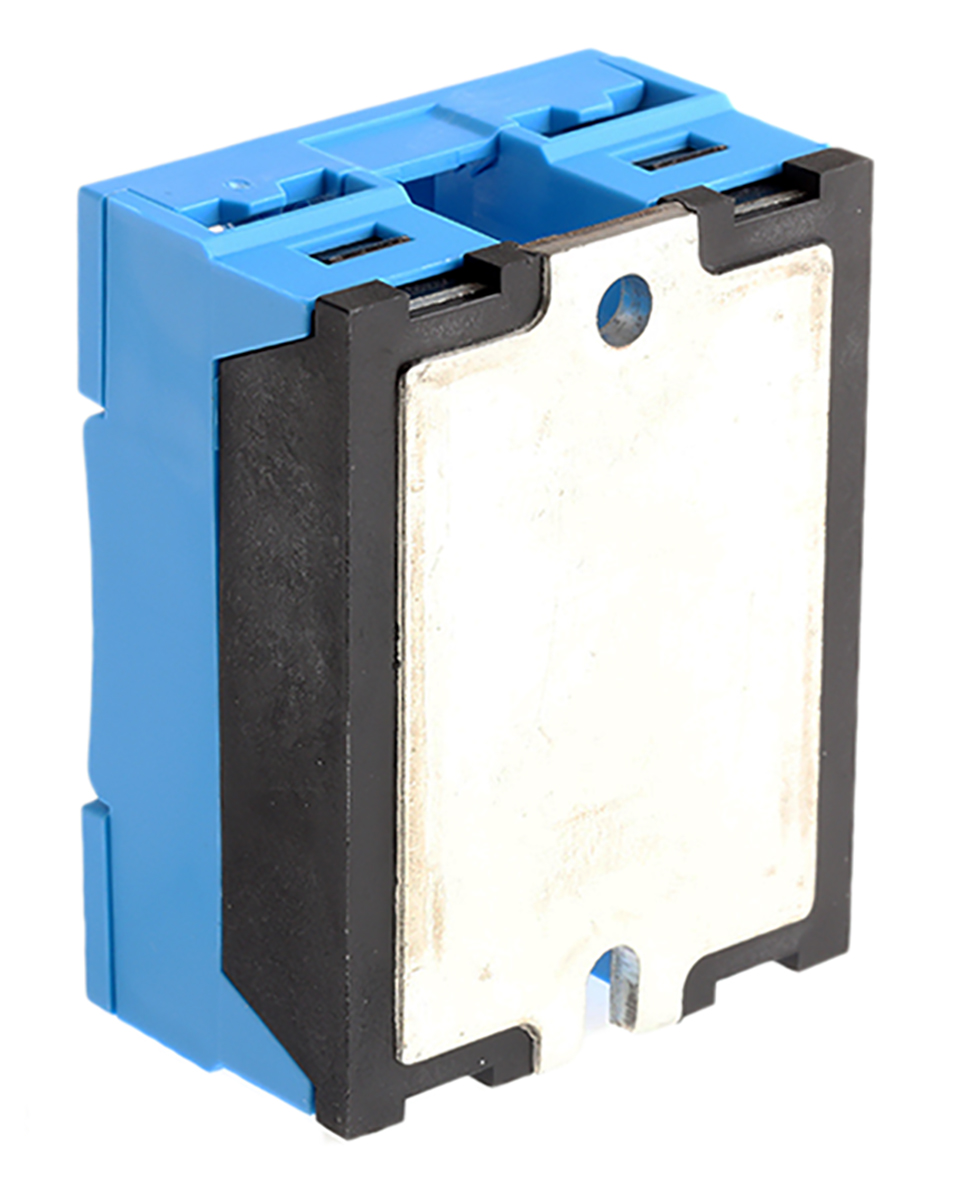

SO8 Series Solid State Relay, 40 A Load, Panel Mount, 510 V rms Load, 32 V Control
Manufacturer:
Celduc
Manufacturer Part No:
SO863070
Enrgtech Part No:
ET13980589
Warranty:
Manufacturer
£ 42.95
Checking for live stock
Maximum Load Current:
40 A
Mounting Type:
Panel Mount
Maximum Load Voltage:
510 V rms
Minimum Load Voltage:
24 V ac
Maximum Control Voltage:
32 V
Switching Type:
Zero Cross
Control Voltage Range:
3.5 → 32 V dc
Minimum Load Current:
5 mA
Range:
okpac
Number of Poles:
1
Terminal Type:
Screw
Output Device:
Thyristor
